SIDE COWLING

GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

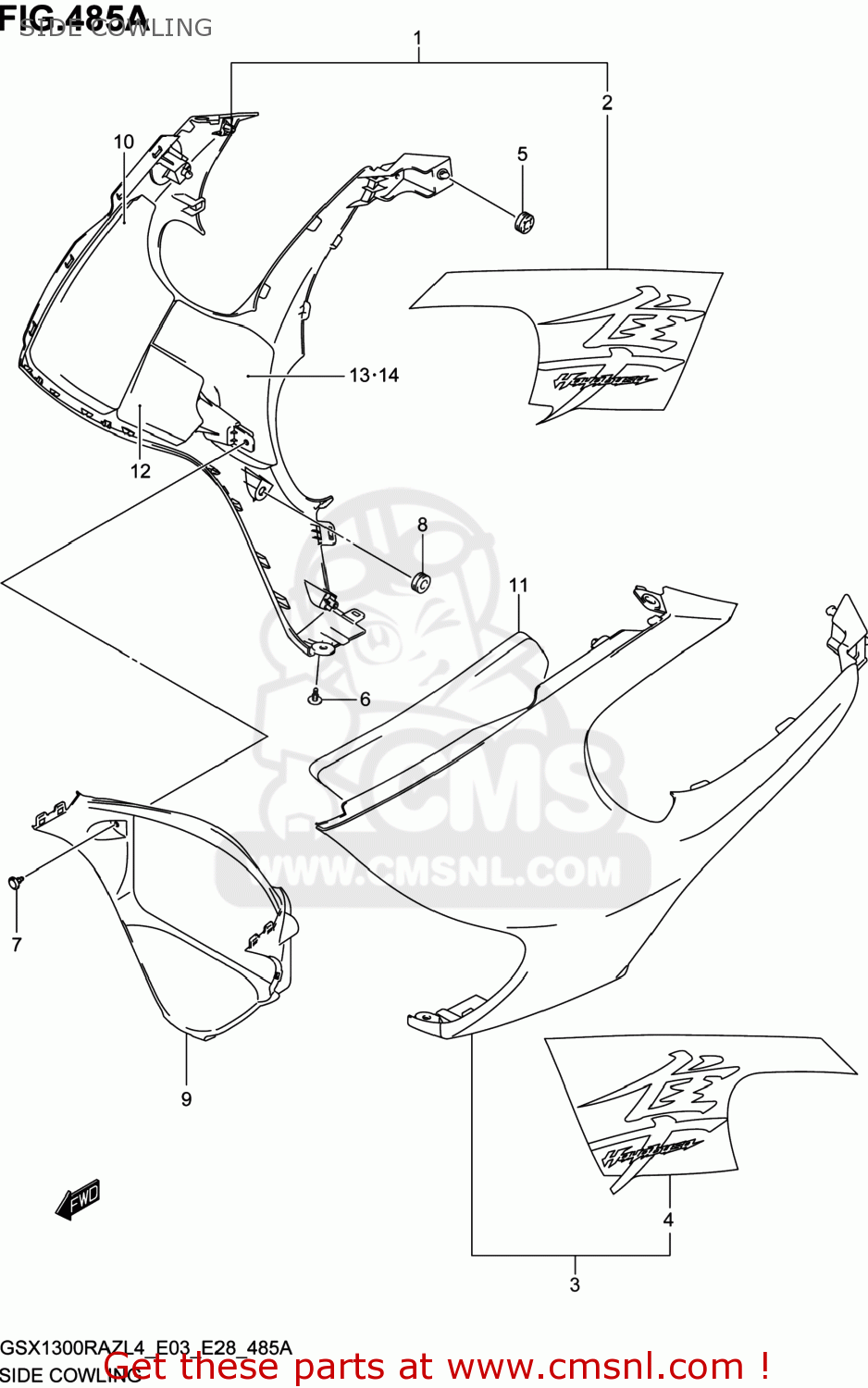

Side cowling diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

9445015H60YVB
ref: 1

COWLING,SIDE,R(BLACK)

€ 420.00

6868515H50AWY
ref: 2

TAPE,SIDE COWLING,R

€ 180.50

9446015H60YVB
ref: 3

COWLING,SIDE,L(BLACK)

€ 1,418.50

6869515H50AWY
ref: 4

TAPE,SIDE COWLING,L

€ 185.00

0932008028
ref: 5

CUSHION

€ 2.50

9447935F00
ref: 6

CLIP

€ 3.50

9447935F00
ref: 7

CLIP

€ 3.50

0932110018
ref: 8

CUSHION

€ 5.00

9449815H00
ref: 9

COWLING,UNDER CTR

€ 31.00

9447615H00
ref: 10

CUSHION,SIDE COWL,R

€ 30.00

9448615H00
ref: 11

CUSHION,SIDE COWL,L

€ 29.00

9447615H10
ref: 12

CUSHION,SIDE COWL

€ 7.50

9447415H00
ref: 13

SHIELD,SIDE COWL,R

€ 36.50

9448415H00
ref: 14

SHIELD,SIDE COWL,L

€ 35.50
