CYLINDER HEAD COVER

GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

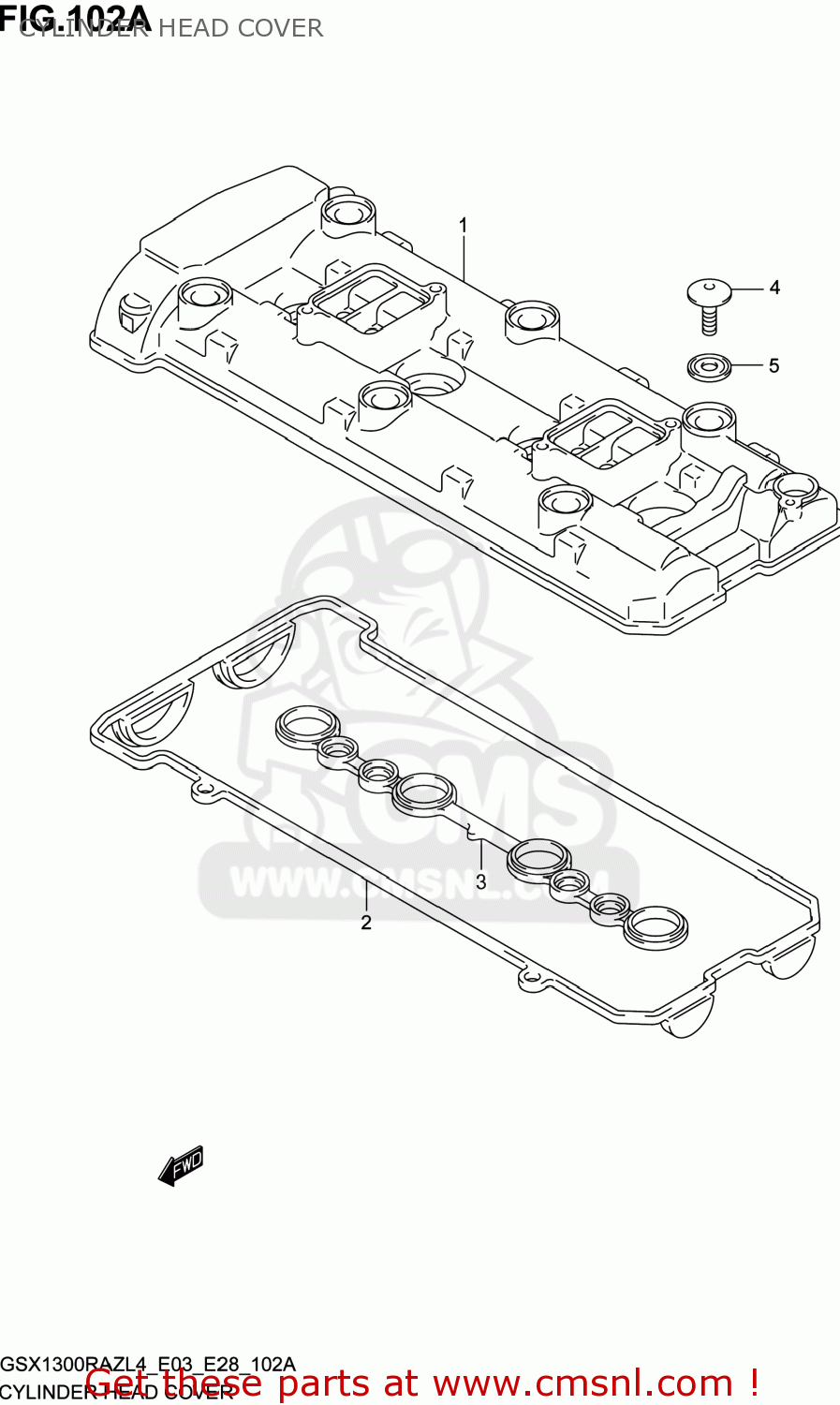

Cylinder head cover diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

CYLINDER HEAD COVER GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

CYLINDER HEAD COVER GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117015H00
ref: 1

COVER,CYLINDER HEAD

€ 428.00

2

1117324F00
ref: 2

GASKET,CYL HEAD COVER NO.1 (NAS)

€ 43.50

3

1117815H00
ref: 3

GASKET,CYL HEAD COVER NO.2 (NAS)

€ 10.00

4

0910607009
ref: 4

BOLT(7X17.5)

€ 4.50

5

1119127E00
ref: 5

WASHER,CYL HEAD COVER

€ 4.50
