HEADLAMP
GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)

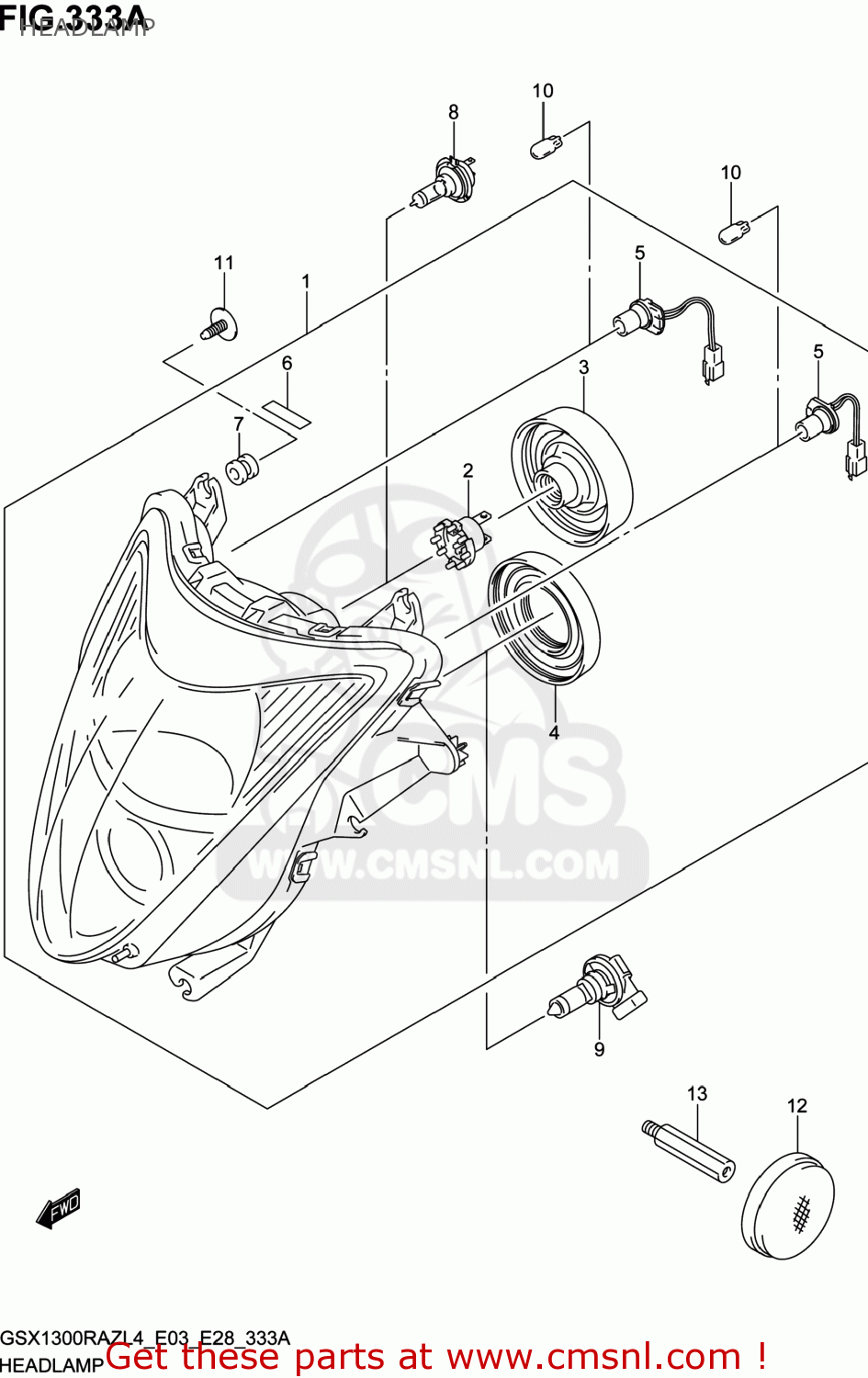

Headlamp diagram GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)
HEADLAMP GSX1300RAZ HAYABUSA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510015H30999
ref: 1
HEADLAMP ASSY
€ 415.00
2
3517524F00
ref: 2
ADAPTER ASSY
€ 16.00
3
3517315H00
ref: 3
COVER
€ 16.50
4
3517314G00
ref: 4
COVER
€ 11.50
5
3611815H00
ref: 5
CORD ASSY
€ 15.00
6
9444321H00
ref: 6
TAPE,FR TURNSIGNAL
€ 2.00
7
0932009039
ref: 7
CUSHION
€ 6.00
8
0947112188
ref: 8
BULB(12V55W/H7/PX26D/PHILIPS)
€ 12.50
9
0947112222
ref: 9
BULB(12V65W,H9)
€ 35.50
10
0947112216
ref: 10
BULB(12V5W)
€ 5.00
11
0913605062
ref: 11
SCREW(5X15)
€ 2.50
12
3595014A11
ref: 12
REFLEX REFLECTOR ASSY,FR SIDE
€ 11.00
13
0911906104
ref: 13
BOLT
€ 9.50
