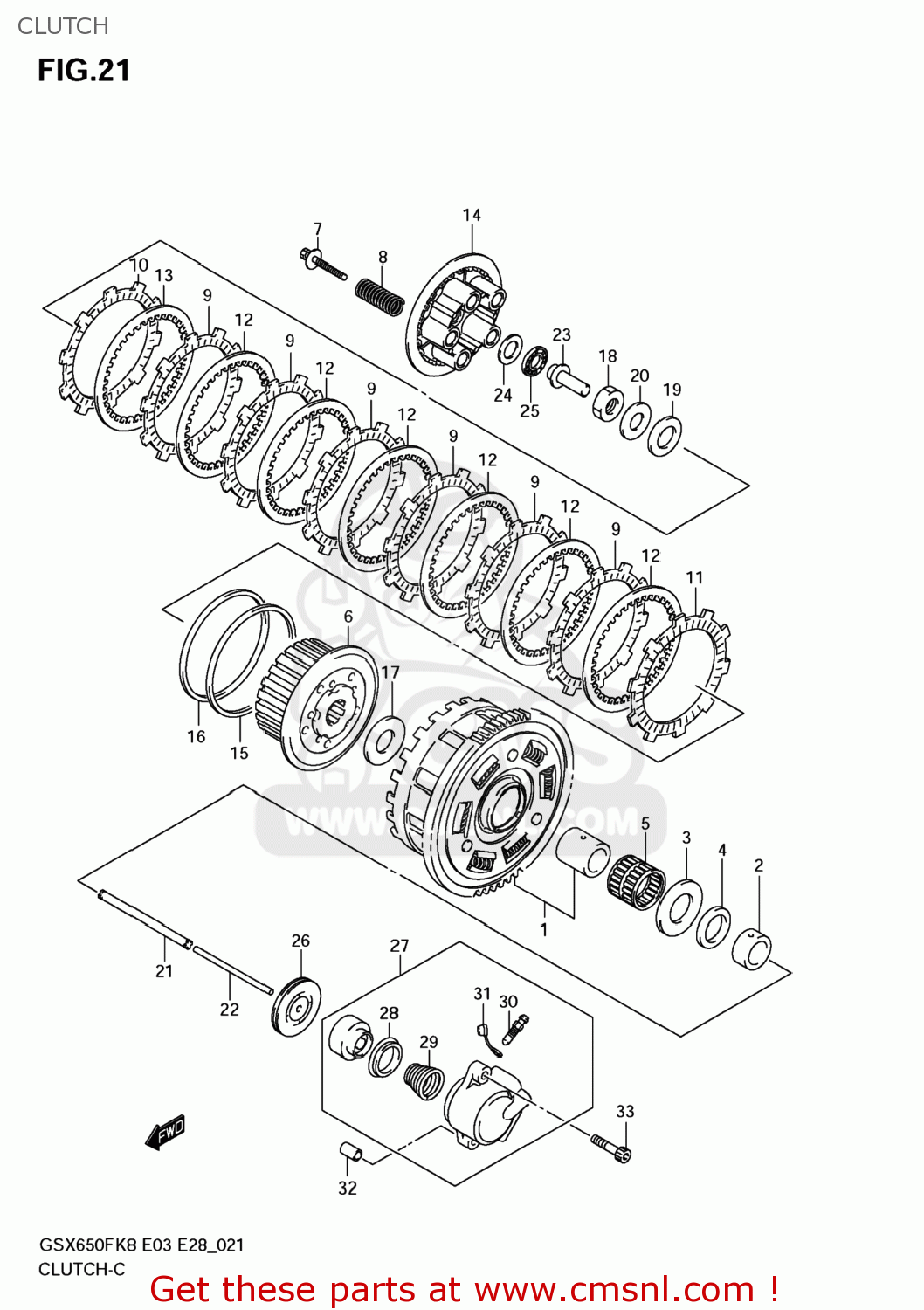

CLUTCH

ref

part #

description

quantity

1

2120017870
ref: 1

GEAR ASSY, PRIMARY DRIVEN

€ 312.00

2

2125301H00
ref: 2

SPACER,OIL PUMP DRIVE SPROCKET

€ 31.50

3

0916025073
ref: 3

WASHER(25X54X2.4)

€ 8.50

4

0916025036
ref: 4

WASHER(25X30X3)

€ 5.50

5

0926335015
ref: 5

BEARING(35X40X26.8)

€ 20.00

6

2141044G00
ref: 6

HUB,CLUTCH SLEEVE

€ 128.00

7

2141235F00
ref: 7

BOLT,CLUTCH SPRING

€ 3.50

8

2141317H00
ref: 8

SPRING,CLUTCH

€ 7.50

9

2144131E90
ref: 9

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 18.00

10

2144131E60
ref: 10

PLATE,CLUTCH DRIVE (NAS)

€ 13.50

11

2144231E21
ref: 11

PLATE,CLUTCH DRIVE (NAS)

€ 19.00

12

2145131E50
ref: 12

PLATE,CLUTCH DRIVEN NO.1 (NAS)

€ 9.00

13

2145131E40
ref: 13

PLATE,CLUTCH DRIVEN NO.1 (NAS)

€ 9.00

14

2146235F00
ref: 14

DISC,CLUTCH PRESSURE

€ 40.00

15

2147131E20
ref: 15

SEAT,CLUTCH PLATE WAVE WASHER

€ 12.00

16

2147231E01
ref: 16

WASHER,CLUTCH PLATE WAVE

€ 15.00

17

0916025056
ref: 17

WASHER(25X50X2.5)

€ 9.50

18

0915924010
ref: 18

NUT

€ 11.00

19

0918125223
ref: 19

SHIM(25X38X1)

€ 3.00

20

0916424006
ref: 20

WASHER

€ 4.00

21

2311027A00
ref: 21

ROD,CLUTCH

€ 17.00

22

2311142F00
ref: 22

ROD,CLUTCH PUSH,L(L:138)

€ 17.00

23

2312131E20
ref: 23

PIECE,CLUTCH PUSH

€ 33.00

24

0916015045
ref: 24

WASHER(15.5X28X1)

€ 4.00

25

0926315003
ref: 25

BEARING(15X28X2)

€ 7.00

26

0928306011
ref: 26

SEAL,OIL(6X52X10)

€ 19.50

27

2316018H00
ref: 27

CYLINDER,CLUTCH RELEASE

€ 111.50

28

2316305A00
ref: 28

CUP,CLUTCH CYLINDER

€ 7.50

29

2316405A00
ref: 29

SPRING,CLUTCH CYLINDER

€ 3.50

30

5912101A00
ref: 30

BLEEDER

€ 8.50

31

5912201A00
ref: 31

CAP,BLEEDER

€ 4.50

32

0421109129
ref: 32

PIN

€ 2.00

33

0910306251
ref: 33

BOLT(6X30)

€ 2.50
