SEAT

GSX650F 2009 (K9) USA (E03)

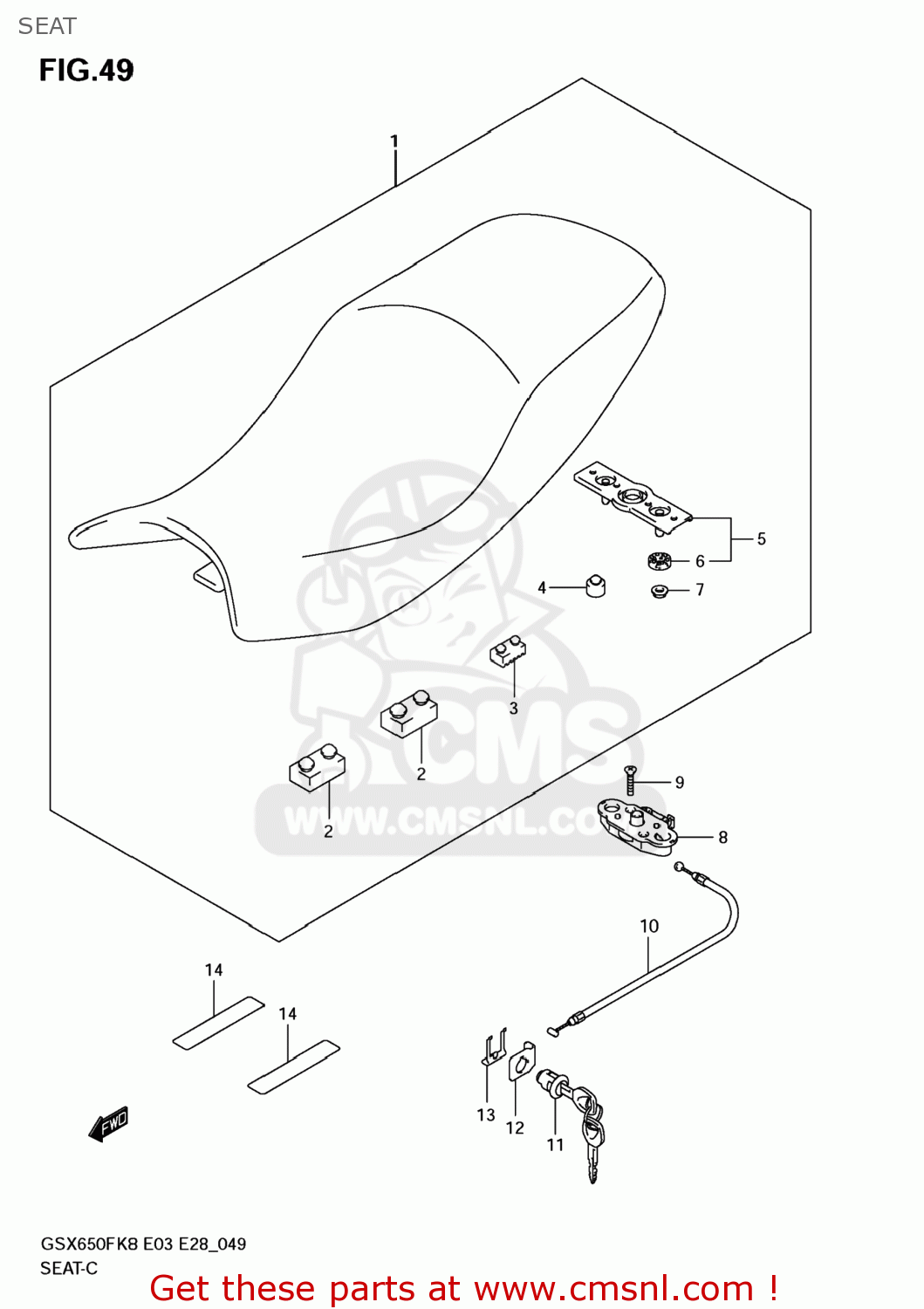

Seat diagram GSX650F 2009 (K9) USA (E03)

SEAT GSX650F 2009 (K9) USA (E03)

SEAT GSX650F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510017H00P3H
ref: 1

SEAT ASSY

€ 326.50

2

4514917H00
ref: 2

CUSHION

€ 7.00

3

4514942F00
ref: 3

CUSHION

€ 4.50

4

0932110011
ref: 4

CUSHION

€ 3.00

5

4529042F02
ref: 5

STRIKER,SEAT LOCK

€ 23.00

6

4521342F00
ref: 6

CUSHION

€ 2.50

7

083193106A
ref: 7

NUT

€ 2.50

8

4522047H00
ref: 8

BRACKET,SEAT SUPPORT

€ 79.50

9

021220630B
ref: 9

SCREW

€ 2.00

10

4528033400
ref: 10

CABLE,SEAT LOCK

€ 10.00

11

9570014810
ref: 11

LOCK SET,SEAT

€ 75.50

12

4528814F00
ref: 12

GUIDE,SEAT LOCK CABLE

€ 3.00

13

4528911F00
ref: 13

PLATE,SEAT LOCK ASSY

€ 3.00

14

4541438G00
ref: 14

TAPE,SEAT LWR COVER

€ 5.50
