FRAME COVER

GSX650F 2009 (K9) USA (E03)

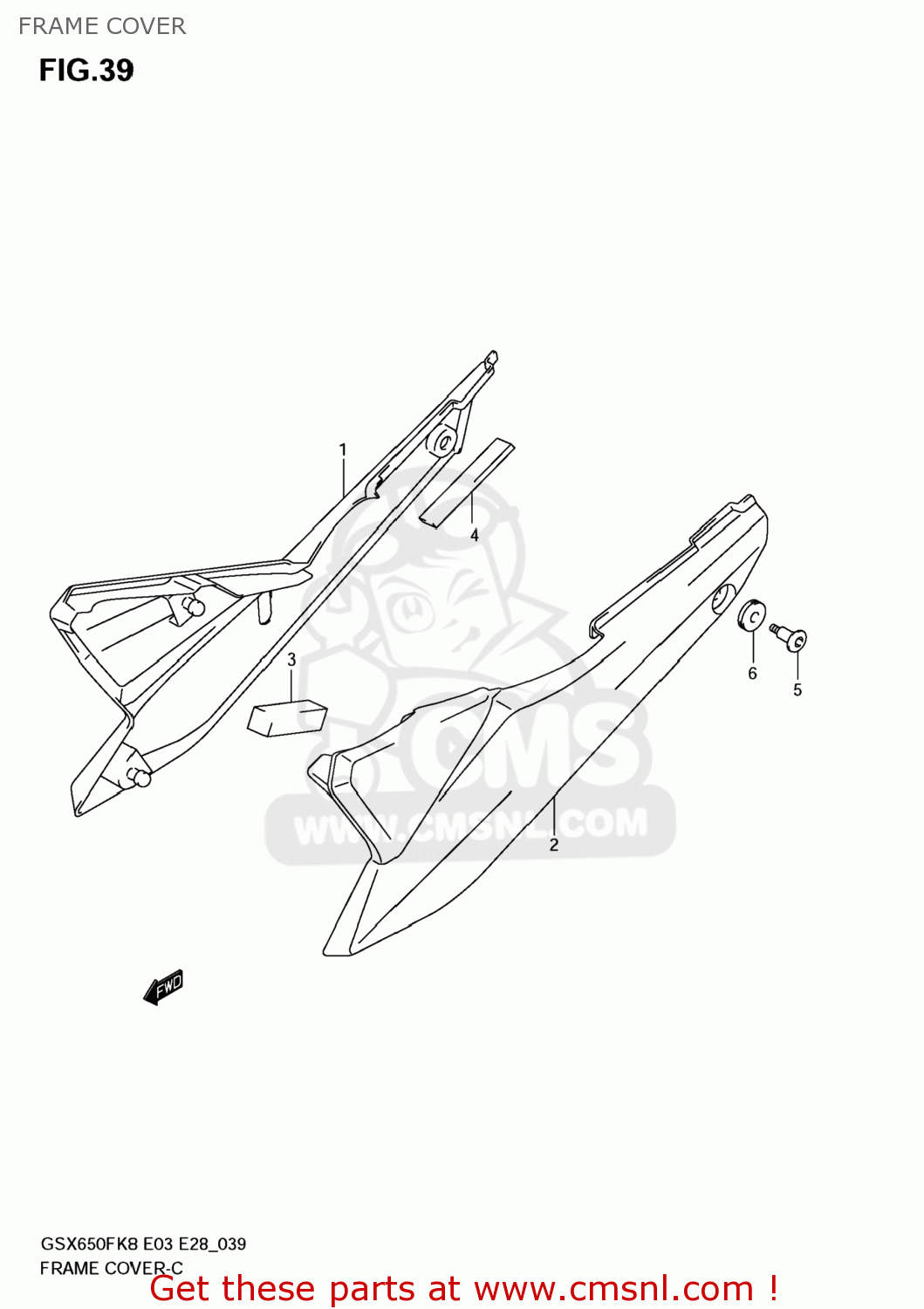

Frame cover diagram GSX650F 2009 (K9) USA (E03)

FRAME COVER GSX650F 2009 (K9) USA (E03)

FRAME COVER GSX650F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711138G02YKV
ref: 1

COVER,FRAME,R(BLACK)

€ 112.50

2

4721138G03YKV
ref: 2

COVER,FRAME,L(BLACK)

€ 112.50

3

4719122D00
ref: 3

RUBBER

€ 3.00

4

4489424A00
ref: 4

CUSHION

€ 1.50

5

0913906132
ref: 5
09139-06191

SCREW,FUEL TAN

€ 4.50

6

0932008018
ref: 6

CUSHION

€ 4.00
