FRONT MASTER CYLINDER

GSX650F 2009 (K9) USA (E03)

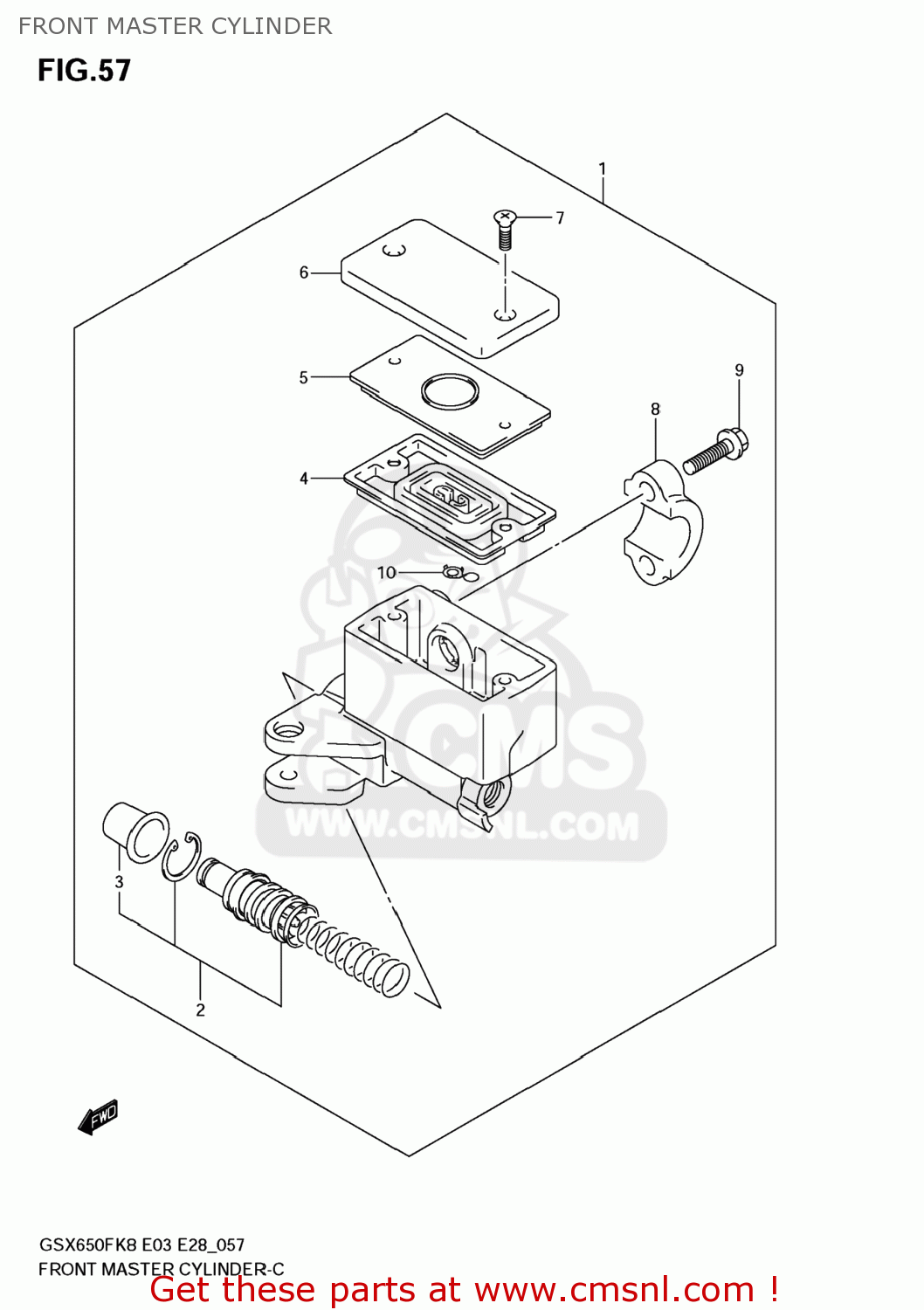

Front master cylinder diagram GSX650F 2009 (K9) USA (E03)

FRONT MASTER CYLINDER GSX650F 2009 (K9) USA (E03)

FRONT MASTER CYLINDER GSX650F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960010G20
ref: 1

CYLINDER ASSY,FR MASTER

€ 221.00

2

5960045850
ref: 2

PISTON & CUP SET

€ 38.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966749460
ref: 4

5966749460

5

5966841C00
ref: 5

PLATE,DIAPHRAGM

€ 8.00

6

5966910G00
ref: 6

CAP

€ 19.00

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967136500
ref: 8

HOLDER

€ 10.00

9

5967502FA0
ref: 9

BOLT(6X22)

€ 3.00

10

5966432F00
ref: 10

PROTECTOR

€ 7.50
