TRANSMISSION
GSX650F 2009 (K9) USA (E03)

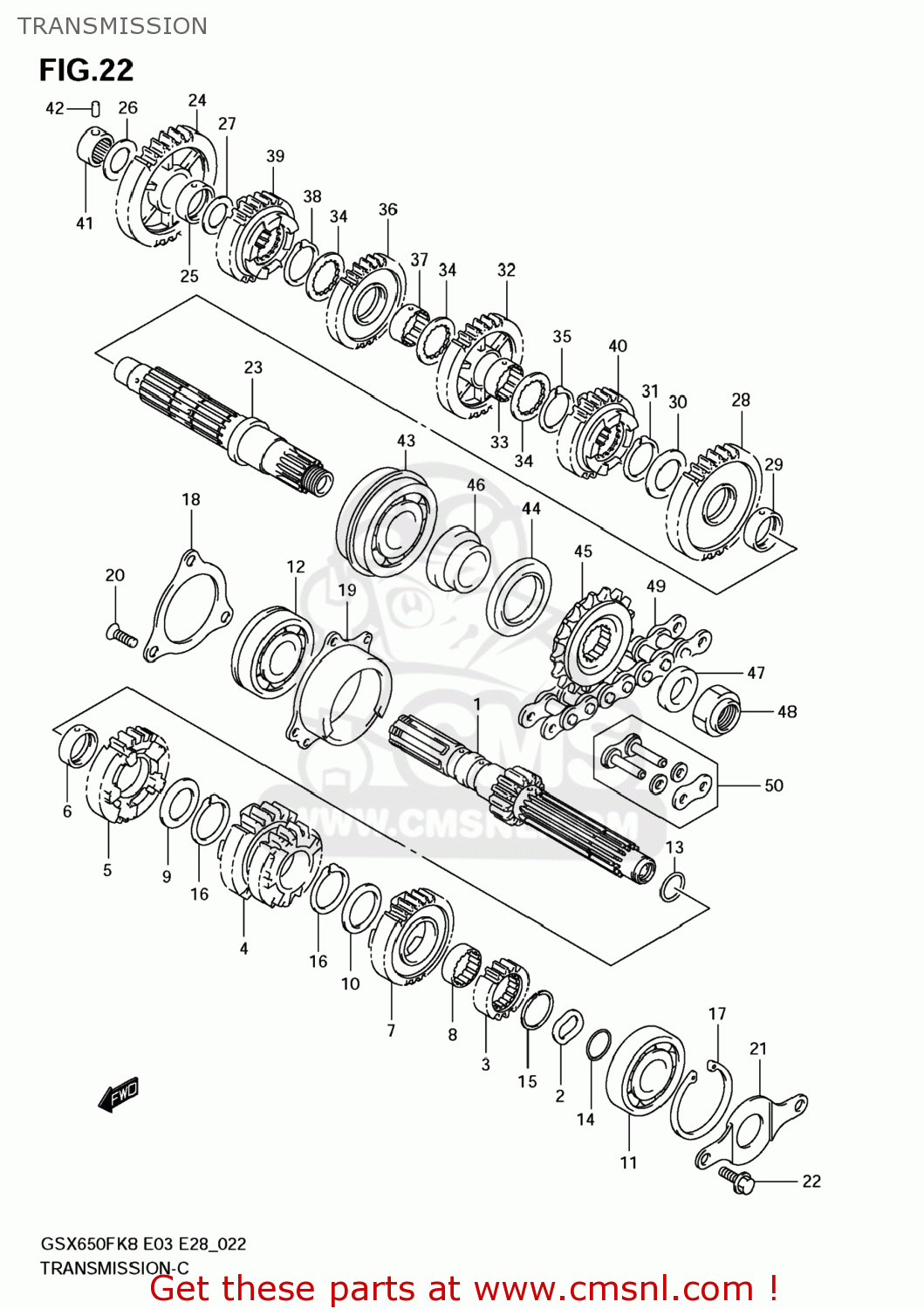

Transmission diagram GSX650F 2009 (K9) USA (E03)
TRANSMISSION GSX650F 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412017H00
ref: 1
SHAFT,COUNTER
€ 195.50
2
2412718H00
ref: 2
WASHER,COUNTER SHAFT WAVE
€ 3.00
3
2422118H00
ref: 3
24221-18H10
GEAR,2ND DRIVE
€ 107.00
4
2423117H00
ref: 4
GEAR,3RD & 4TH DRIVE
€ 170.00
5
2425117H00
ref: 5
GEAR,5TH DRIVE
€ 137.50
6
2425235F00
ref: 6
BUSH,5TH DRIVE GEAR
€ 13.00
7
2426118H00
ref: 7
GEAR,6TH DRIVE(NT:28)
€ 132.50
8
2426235F00
ref: 8
BUSH,6TH DRIVE GEAR
€ 19.50
9
0916027008
ref: 9
WASHER(27X36X1)
€ 3.00
10
0916727001
ref: 10
WASHER,LOCK
€ 3.50
11
0926220080
ref: 11
BEARING(20X52X15)
€ 21.50
12
0926225073
ref: 12
BEARING(25X62X17)
€ 21.50
13
0928017004
ref: 13
O RING(D:1.9,ID:16.6)
€ 3.00
14
0928020001
ref: 14
O RING(D:1,ID:19.5)
€ 2.00
15
0938027004
ref: 15
CIRCLIP
€ 3.50
16
0938027006
ref: 16
CIRCLIP
€ 2.50
17
083314152A
ref: 17
CIRCLIP
€ 3.00
18
2475118H00
ref: 18
RETAINER,CNTR SHAFT BEARING,R
€ 13.50
19
2477118H00
ref: 19
HOUSING,CNTR SHAFT BRG,R
€ 76.00
20
0913906159
ref: 20
SCREW(6X20)
€ 2.50
21
2474118H00
ref: 21
RETAINER,CL PUSH ROD OIL SEAL
€ 5.50
22
0910306236
ref: 22
BOLT(6X12)
€ 3.00
23
2413118H00
ref: 23
SHAFT,DRIVE
€ 264.00
24
2431118H00
ref: 24
GEAR,1ST DRIVEN(NT:40)
€ 155.50
25
2431202F00
ref: 25
BUSH
€ 19.50
26
0918120251
ref: 26
SHIM(20X34X1)
€ 3.00
27
0918122223
ref: 27
SHIM(22X34X1)
€ 3.00
28
2432118H00
ref: 28
GEAR,2ND DRIVEN(NT:35)
€ 109.00
29
2432202F01
ref: 29
BUSH,2ND DRIVEN GEAR
€ 11.00
30
0916027008
ref: 30
WASHER(27X36X1)
€ 3.00
31
0938027006
ref: 31
CIRCLIP
€ 2.50
32
2433117H00
ref: 32
GEAR,3RD DRIVEN
€ 129.50
33
2426217E01
ref: 33
BUSH
€ 29.00
34
2433302F00
ref: 34
WASHER,3RD & 4TH DRIVEN
€ 3.50
35
0938027006
ref: 35
CIRCLIP
€ 2.50
36
2434118H00
ref: 36
GEAR,4TH DRIVEN(NT:30)
€ 137.00
37
2426217E01
ref: 37
BUSH
€ 29.00
38
0938027006
ref: 38
CIRCLIP
€ 2.50
39
2435118H00
ref: 39
GEAR,5TH DRIVEN(NT:29)
€ 135.00
40
2436117H00
ref: 40
GEAR,6TH DRIVEN
€ 132.00
41
0926320087
ref: 41
BEARING(20X34X13.5)
€ 31.50
42
0926106003
ref: 42
PIN(6X10)
€ 1.50
43
0926730011
ref: 43
BEARING(30X62X23.8)
€ 103.50
44
0928342018
ref: 44
SEAL,OIL(42X62X7)
€ 33.00
45
2751020F00
ref: 45
SPROCKET,ENGINE(NT:15)
€ 32.00
46
2753117H00
ref: 46
SPACER,ENGINE SPROCKET
€ 26.00
47
2753217H00
ref: 47
SPACER,ENGINE SPROCKET NO.2
€ 10.50
48
0915920004
ref: 48
NUT
€ 12.00
49
2760006G00118
ref: 49
27600-06G40-120
CHAIN ASSY,DRI
€ 169.50
50
2762006G00
ref: 50
JOINT SET
€ 15.00
