FRAME

GSX650F 2009 (K9) USA (E03)

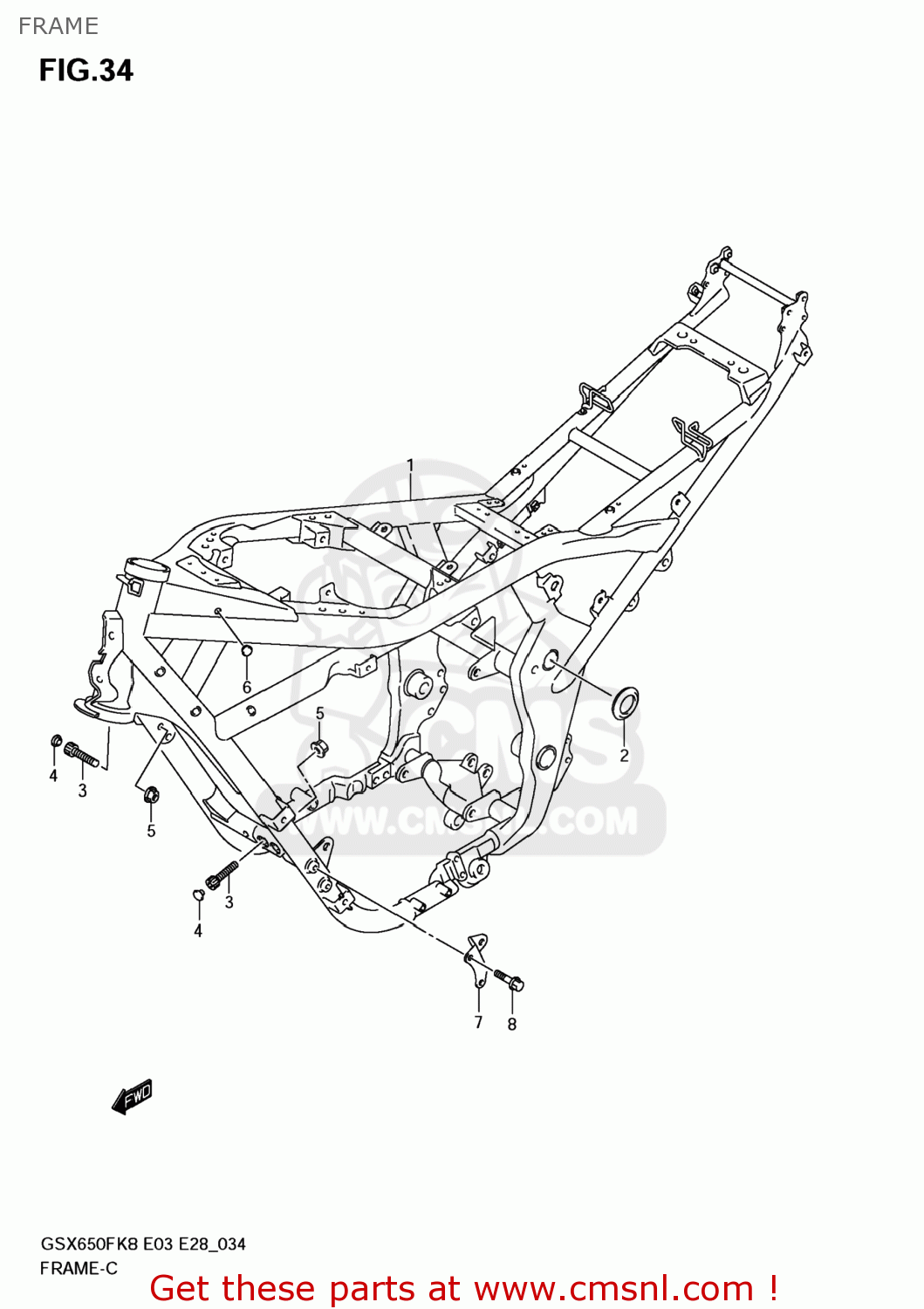

Frame diagram GSX650F 2009 (K9) USA (E03)

FRAME GSX650F 2009 (K9) USA (E03)

FRAME GSX650F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4110017H10019
ref: 1

FRAME(BLACK)

€ 1,121.00

2

4358538G00
ref: 2
43585-38G01

CAP,FRAME PIVO

€ 6.00

3

0910610068
ref: 3

BOLT(10X37)

€ 2.50

4

0925008012
ref: 4

CAP(OD:12)

€ 2.00

5

083193110B
ref: 5

NUT

€ 3.00

6

0925012014
ref: 6

PLUG(OD:17)

€ 8.00

7

4194218H00019
ref: 7

BRACKET,ENGINE MOUNTING FR

€ 49.50

8

015500820A
ref: 8

BOLT

€ 2.50
