REAR SWINGING ARM
GSX650F 2009 (K9) USA (E03)

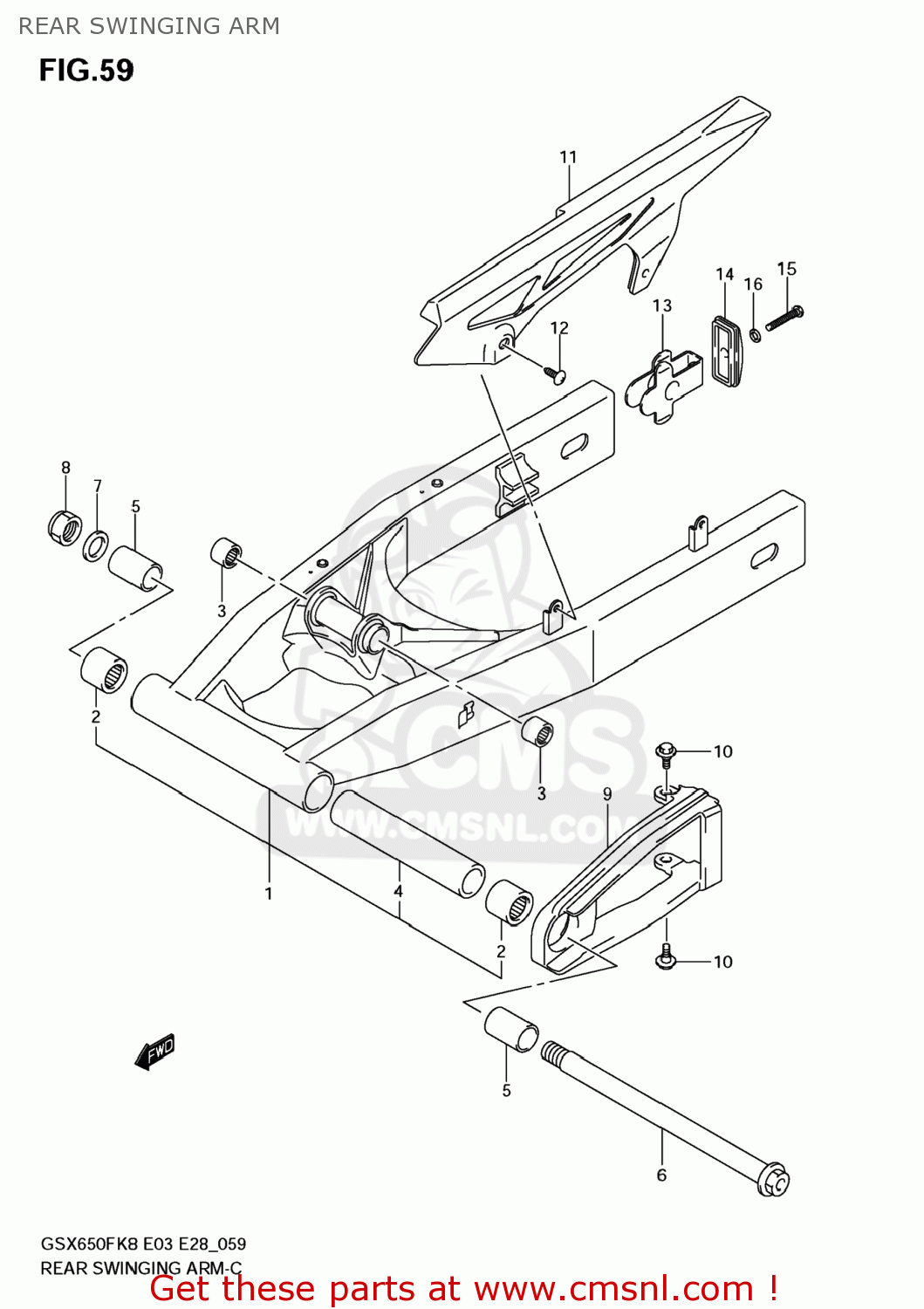

Rear swinging arm diagram GSX650F 2009 (K9) USA (E03)
REAR SWINGING ARM GSX650F 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100017H10YAP
ref: 1
SWINGINGARM ASSY,RR
€ 1,023.00
1
6100017H10YAP
ref: 1
SWINGINGARM ASSY,RR
€ 1,023.00
2
0926325059
ref: 2
BEARING(25X33X35)
€ 35.00
3
0926317037
ref: 3
BEARING(17X24X25)
€ 19.00
4
0918020108
ref: 4
SPACER(20.8X27.2X146)
€ 21.50
5
6125121E00
ref: 5
SPACER,RR SWGARM PIVOT
€ 8.50
6
6121131E00
ref: 6
SHAFT,RR SWINGINGARM PIVOT
€ 53.00
7
0916018030
ref: 7
WASHER(18.5X28X2.6)
€ 2.50
8
0915918007
ref: 8
NUT
€ 14.00
9
6127317H10
ref: 9
BUFFER,CHAIN TOUCH DEFENSE
€ 21.00
10
0911106072
ref: 10
BOLT(6X17.8)
€ 2.00
11
6131019F00
ref: 11
CASE,CHAIN
€ 58.50
12
0913906083
ref: 12
SCREW(6X16)
€ 2.50
13
6141021E00
ref: 13
ADJUSTER,CHAIN
€ 27.50
14
6142145D00
ref: 14
PLATE,CHAIN ADJUSTER GUIDE
€ 21.50
15
0910608119
ref: 15
BOLT(8X50)
€ 4.50
16
0916408015
ref: 16
WASHER
€ 3.00
