CYLINDER

GSX650F 2009 (K9) USA (E03)

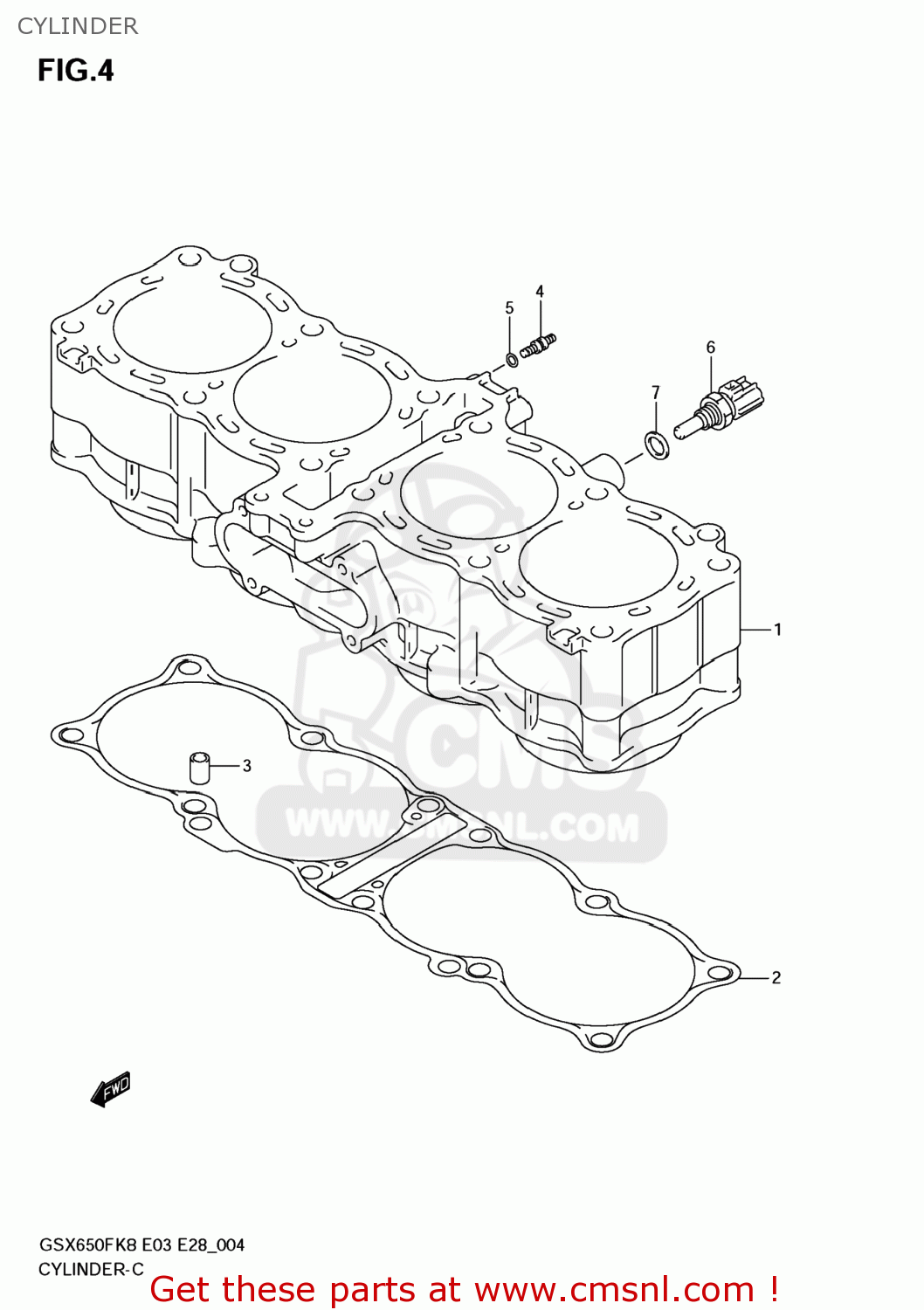

Cylinder diagram GSX650F 2009 (K9) USA (E03)

CYLINDER GSX650F 2009 (K9) USA (E03)

CYLINDER GSX650F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121117H000F0
ref: 1

CYLINDER

€ 925.50

2

1124118H00
ref: 2

GASKET,CYLINDER (NAS)

€ 28.50

3

0421111169
ref: 3

PIN

€ 2.00

4

0949380005
ref: 4

JET(8)

€ 12.00

5

0928004004
ref: 5

O RING(D:1.2,ID:4)

€ 2.00

6

1365049X00
ref: 6

SENSOR,TEMP

€ 73.00

7

0916812017
ref: 7

GASKET(12X17X1) (NAS)

€ 2.00
