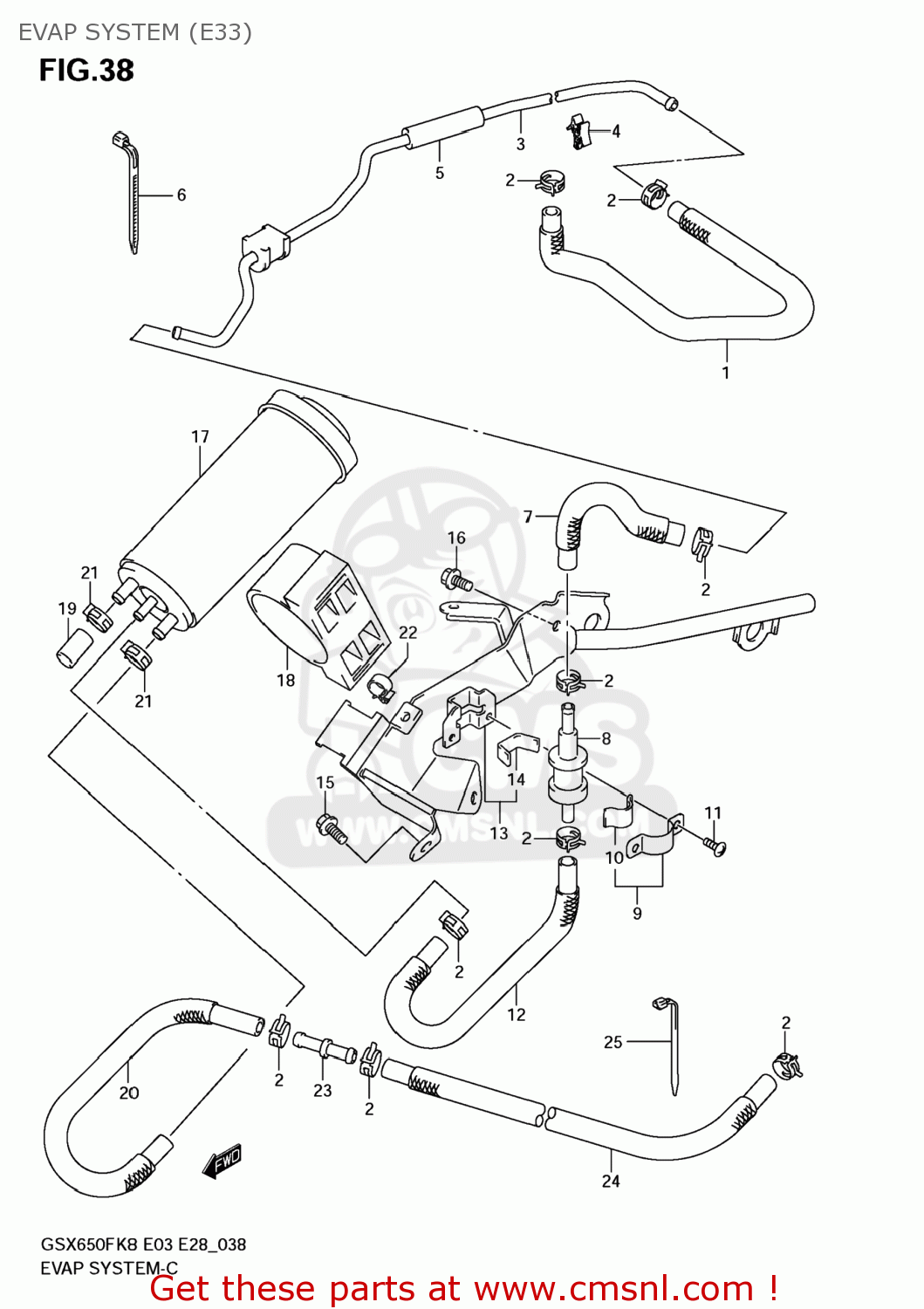

EVAP SYSTEM (E33)

ref

part #

description

quantity

1

4443418H20
ref: 1

HOSE,TANK & BREATHER VALVE

€ 31.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4495018H00
ref: 3

PIPE,TANK & BREATHER

€ 19.00

4

0940306325
ref: 4

CLAMP

€ 2.50

5

5314605G00
ref: 5

CUSHION,FR FENDER SIDE

€ 3.00

6-1

0940714407
ref: 6-1

CLAMP(L:145)

€ 4.00

6-2

0940711401
ref: 6-2

CLAMP(L:95)

€ 2.50

7

4443417H00
ref: 7

HOSE,TANK & BRTHR VALVE NO.2

€ 19.50

8

4424038A00
ref: 8

VALVE,FUEL TANK BREATHER

€ 35.00

9

4489224A00
ref: 9

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

10

4489424A00
ref: 10

CUSHION

€ 1.50

11

021420410B
ref: 11

SCREW

€ 1.50

12

4443517H00
ref: 12

HOSE,CSTR & BREATHER VALVE

€ 26.00

13

4488017H00
ref: 13

BRACKET COMP,CA

€ 191.00

14

4489424A00
ref: 14

CUSHION

€ 1.50

15

015500616B
ref: 15

BOLT

€ 2.50

16

015500612B
ref: 16

BOLT

€ 2.50

17

1720017H00
ref: 17

CANISTER SET

€ 176.00

18

4488306G00
ref: 18

CUSHION,CANISTER

€ 8.00

19

0925107003
ref: 19

CAP,OD:11.5

€ 2.00

20

4443618H20
ref: 20

HOSE,CSTR & PURGE VALVE

€ 28.00

21

0940112404
ref: 21

CLIP

€ 2.50

22

0940312411
ref: 22

CLAMP

€ 2.50

23

0936706009
ref: 23

JOINT

€ 2.50

24

4443618H30
ref: 24

HOSE,CSTR & PURGE VALVE NO.2

€ 26.50

25

0940714403
ref: 25

CLAMP(L:125)

€ 2.50

all assemblies
