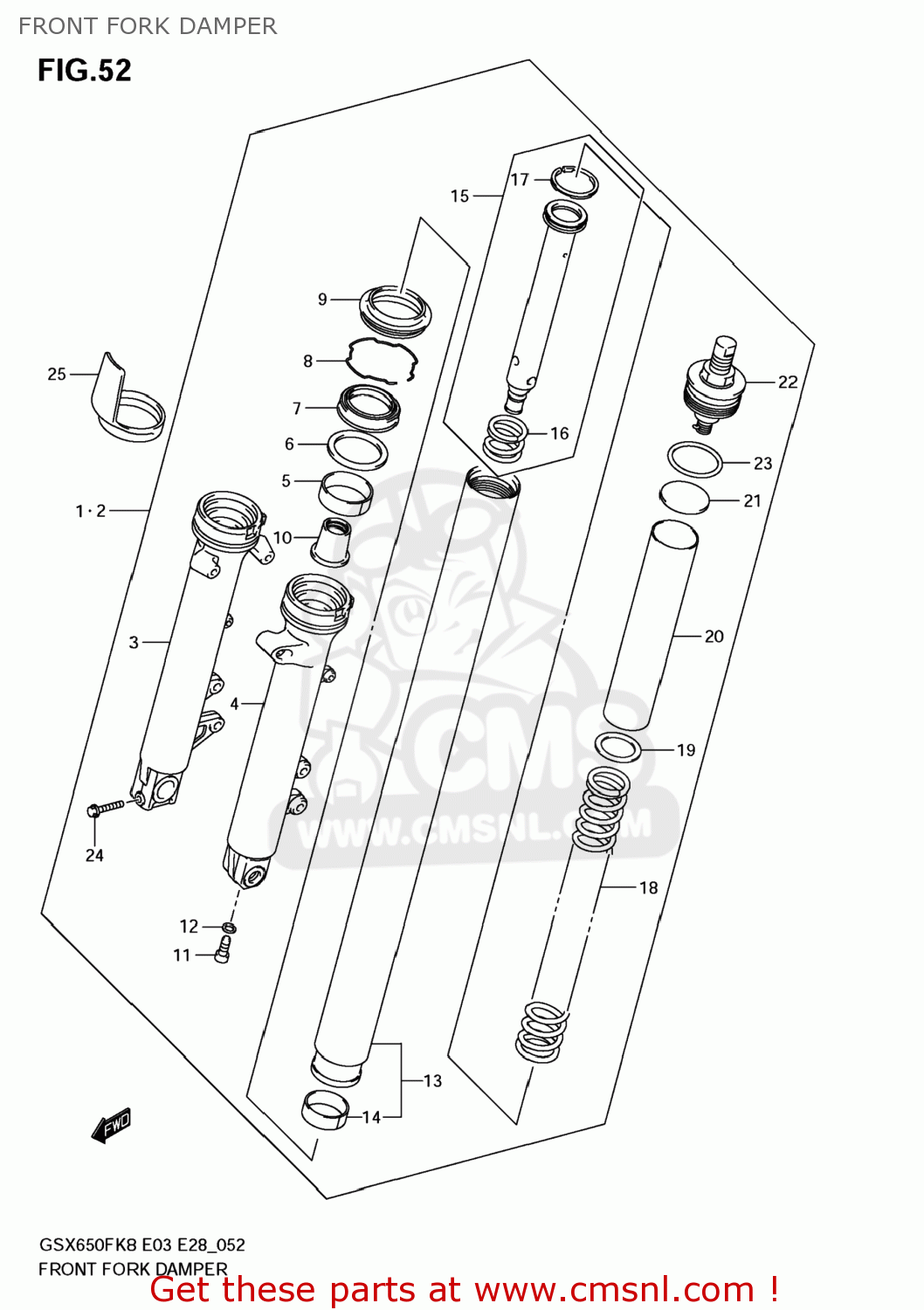

FRONT FORK DAMPER

ref

part #

description

quantity

1

5110317H10
ref: 1

DAMPER ASSY,FR FORK,R

€ 628.50

2

5110417H10
ref: 2

DAMPER ASSY,FR FORK,L

€ 624.00

3

5113017H00
ref: 3

TUBE,OUTER,R

€ 626.50

4

5114017H00
ref: 4

TUBE,OUTER,L

€ 588.00

5

5116726E10
ref: 5

METAL,SLIDE

€ 20.50

6

5115805A00
ref: 6

WASHER,FORK OIL SEAL

€ 5.00

7

5115310G50
ref: 7

SEAL,OIL

€ 13.50

8

5115649440
ref: 8

RING,OIL SEAL STOPPER

€ 5.50

9

5117314F00
ref: 9

SEAL,DUST

€ 18.50

10

5119533D10
ref: 10

PIECE,OIL LOCK

€ 18.00

11

5114716510
ref: 11

BOLT,FORK CYLINDER(10X25)

€ 3.50

12

5114841310
ref: 12

GASKET (NAS)

€ 2.50

13

5111017H00
ref: 13

TUBE,INNER

€ 439.00

14

5112123EA0
ref: 14

PISTON

€ 19.00

15

5114617H20
ref: 15

CYLINDER

€ 77.50

16

5117706C00
ref: 16

SPRING,REBOUND

€ 10.50

17

5119631F00
ref: 17

RING,PISTON

€ 7.00

18

5117117H20
ref: 18

SPRING

€ 95.00

19

5135617H00
ref: 19

WASHER

€ 3.50

20

5117612D10
ref: 20

SPACER,SPRING

€ 11.50

21

5119227A00
ref: 21

WASHER,FR FORK SPRING

€ 5.50

22

5135131FA0
ref: 22

CAP

€ 109.00

23

0928032001
ref: 23

O RING(D:3.5,ID:31.7)

€ 2.00

24

5145110G00
ref: 24

BOLT

€ 5.50

25

5120131F00
ref: 25

PROTECTOR

€ 13.50
