AIR CLEANER

GSX750 1980 (T) (E01 E02 E06 E22 E24)

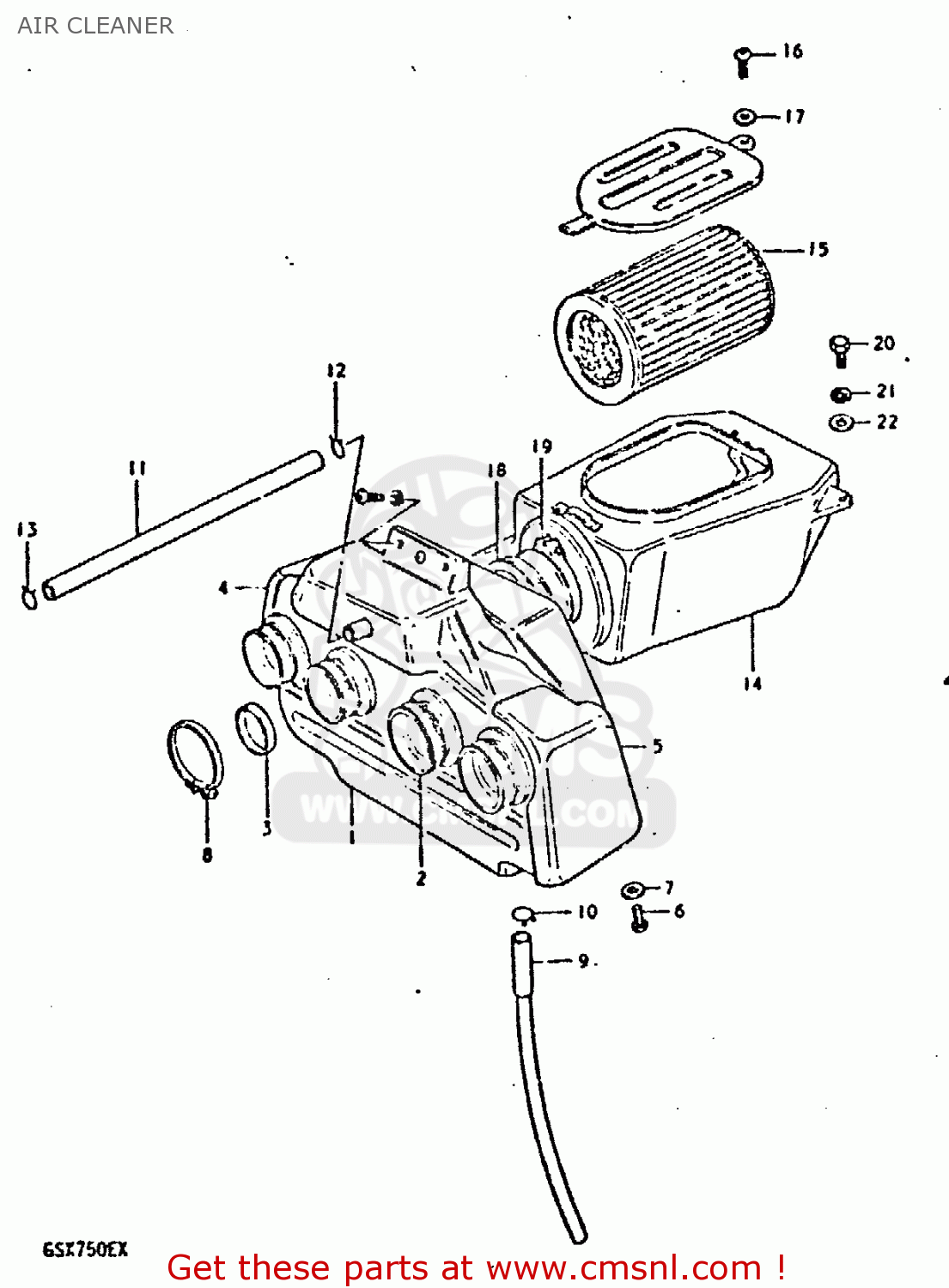

Air cleaner diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)

AIR CLEANER GSX750 1980 (T) (E01 E02 E06 E22 E24)
AIR CLEANER GSX750 1980 (T) (E01 E02 E06 E22 E24)
AIR CLEANER GSX750 1980 (T) (E01 E02 E06 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1371045400
ref: 1
CASE COMP,AIR CLEANER
€ 0.00
2
1388149200
ref: 2
Please contact us prior ordering this part. Possible misprint
TUBE,AIR CLEANER OUTLET
1388149200
€ 25.50
3
1388549200
ref: 3
RING,CARBURETOR AIR IN
€ 8.00
4
1383149200
ref: 4
COVER,AIR CLEANER,RIGHT
€ 26.50
5
1383249200
ref: 5
COVER,AIR CLEANER,LEFT
1383249200
€ 20.50
6
0211205108
ref: 6
SCREW
0211205108
€ 2.00
7
0832221058
ref: 7
WASHER
€ 2.50
8
0940260306
ref: 8
CLAMP
€ 4.50
9
1387000020
ref: 9
DRAIN TUBE
€ 13.50
10
0940114301
ref: 10
CLIP
0940114301
€ 2.00
11
1385100225
ref: 11
TO 09343-11001
TUBE,BREATHER
€ 30.00
12
1385949200
ref: 12
CLIP,BREATHER HOSE
€ 1.50
13
0940114301
ref: 13
CLIP
0940114301
€ 2.00
14
1370049810
ref: 14
CLEANER ASSEMBLY,AIR
€ 172.00
15
1378049200
ref: 15
FILTER,AIR CLEANER
1378049200
€ 41.00
16
0211205128
ref: 16
SCREW
€ 2.50
17
0832221058
ref: 17
WASHER
€ 2.50
18
1380149200
ref: 18
JOINT,HOSE AIR CLEANER
€ 34.50
19
0940270306
ref: 19
CLAMP
0940270306
€ 5.00
20
0110706208
ref: 20
BOLT
0110706208
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
22
0832211068
ref: 22
WASHER 6MM
€ 2.00
