REAR WHEEL (GSX750T, GSX750X)

GSX750 1980 (T) (E01 E02 E06 E22 E24)

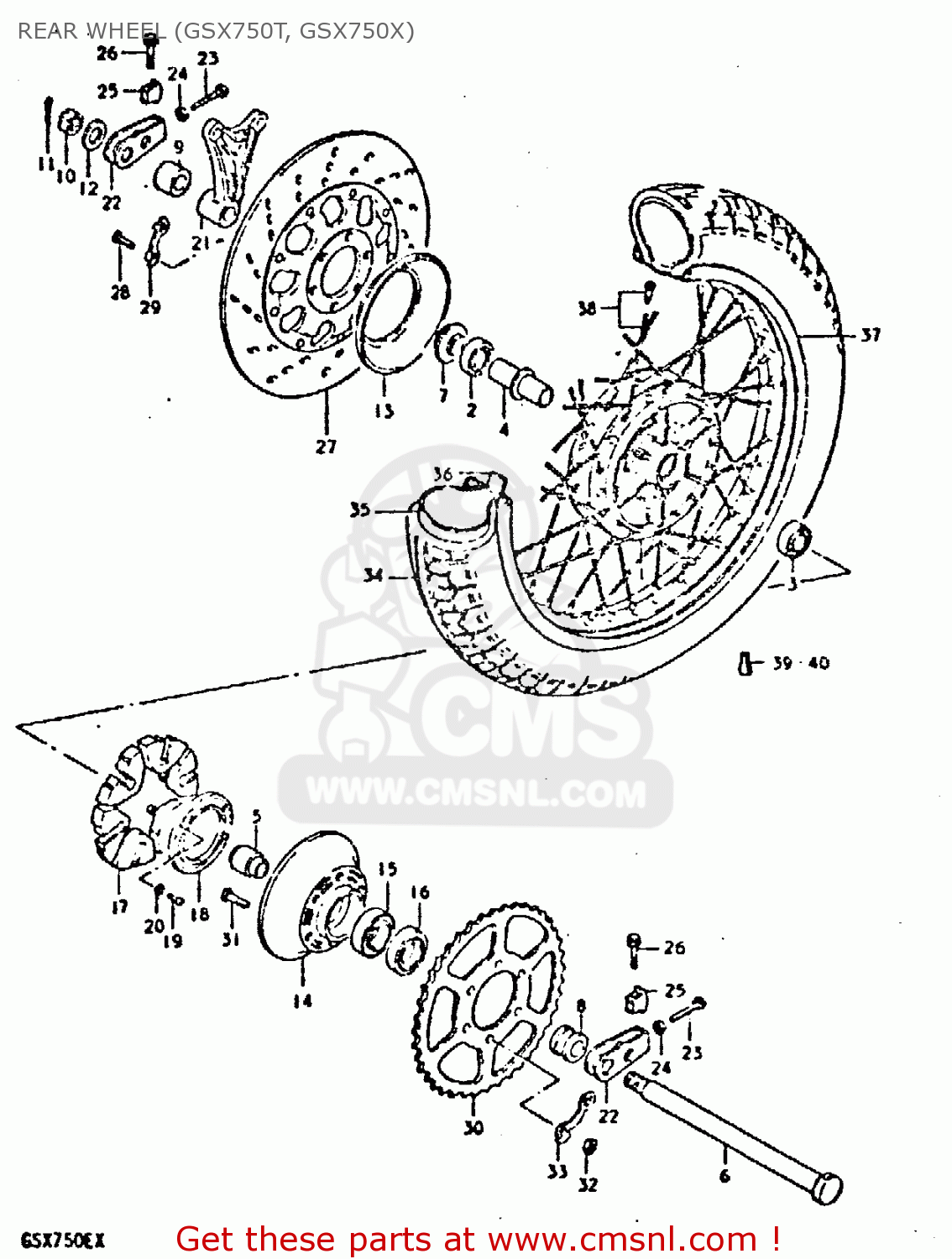

Rear wheel (gsx750t, gsx750x) diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)

REAR WHEEL (GSX750T, GSX750X) GSX750 1980 (T) (E01 E02 E06 E22 E24)
REAR WHEEL (GSX750T, GSX750X) GSX750 1980 (T) (E01 E02 E06 E22 E24)
REAR WHEEL (GSX750T, GSX750X) GSX750 1980 (T) (E01 E02 E06 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
6411045001
ref: 1
DRUM,REAR HUB
€ 520.00
2
0812362047
ref: 2
BEARING
0812362047
€ 17.00
3
0814362047
ref: 3
BEARING, LH
€ 21.00
4
6473045000
ref: 4
SPACER,REAR HUB BEARING
6473045000
€ 15.50
5
6473331000
ref: 5
SPACER,REAR HUB BEARING
6473331000
€ 20.00
6
6471149000
ref: 6
AXLE,REAR
€ 59.00
7
6474045001
ref: 7
SPACER,REAR AXLE
€ 15.00
8
0918020054
ref: 8
SPACER(20X33X28.3)
0918020054
€ 13.00
9
0918020070
ref: 9
SPACER (20X38X17)
0918020070
€ 10.00
10-1
0831431188
ref: 10-1
NUT 18MM
0831431188
€ 5.00
10-2
NOTUSED
ref: 10-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
0411140308
ref: 11
PIN,COTTER
0411140308
€ 1.50
12
0916019008
ref: 12
WASHER(19X34X4)
0916019008
€ 3.00
13
6417145000
ref: 13
COVER,REAR WHEEL HUB
6417145000
€ 10.00
14
6461131001
ref: 14
DRUM,REAR SPROCKET MOUNT
€ 140.00
15
0811363050
ref: 15
BEARING
0811363050
€ 21.50
16
0928533001
ref: 16
SEAL,OIL(33X62X7)
0928533001
€ 20.00
17
6465131000
ref: 17
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
18
6467145000
ref: 18
PLATE,REAR HUB SHOCK ABSORBER
€ 11.00
19
0211205108
ref: 19
SCREW
0211205108
€ 2.00
20
0832121058
ref: 20
LOCK WASHER
0832121058
€ 2.00
21
6972147011
ref: 21
BRACKET,RR,CALIPER
6972147011
€ 29.00
22
6141031001
ref: 22
FROM 61410-31000
ADJUSTER,CHAIN
6141031001
€ 50.00
23
0910408006
ref: 23
BOLT
0910408006
€ 3.00
24
0831012088
ref: 24
NUT
0831012088
€ 2.00
25
6143331000
ref: 25
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
26
0151708408
ref: 26
BOLT (8X40)
€ 3.50
27
5921018450
ref: 27
DISC,RR BRAKE
5921018450
€ 446.00
28
0910008094
ref: 28
BOLT(8X30)
0910008094
€ 2.50
29
0916908016
ref: 29
WASHER
0916908016
€ 3.50
30
6451145001
ref: 30
SPROCKET,RR
6451145001
€ 82.00
31
0911910002
ref: 31
BOLT
0911910002
€ 3.50
32
0831012108
ref: 32
NUT
0831012108
€ 2.50
33
0916910007
ref: 33
WASHER
0916910007
€ 7.50
34-1
6510045036
ref: 34-1
BS, MODEL T
TIRE
€ 0.00
34-2
6510045430
ref: 34-2
BS, MODEL X
TIRE
€ 0.00
34-3
6510045620
ref: 34-3
DUNLOP, MODEL T
TIRE (4.00H18)
€ 0.00
35
6520049015
ref: 35
TUBE,INNER
€ 39.00
36
6526115010
ref: 36
PROTECTOR,WHEEL,INNER
€ 3.50
37
6531115021
ref: 37
RIM,WHEEL
6531115021
€ 170.50
38
6530045010
ref: 38
SPOKE SET
€ 0.00
39
5541111000
ref: 39
BALANCER,WHEEL (B)
€ 4.50
40
5541211000
ref: 40
BALANCER,WHEEL (30G)
5541211000
€ 8.00
