FRONT BRAKE HOSE
GSX750 1980 (T) (E01 E02 E06 E22 E24)

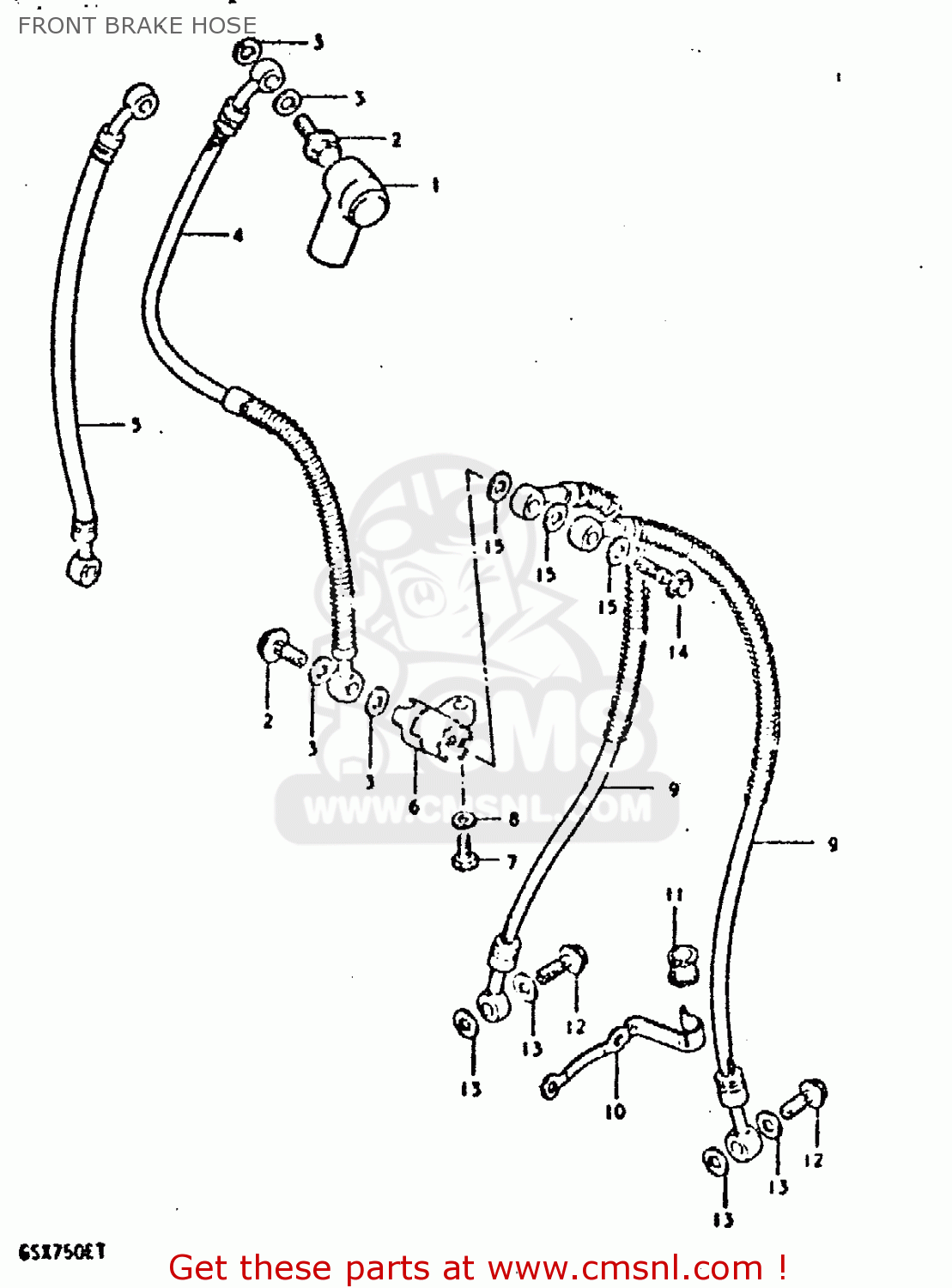

Front brake hose diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)
FRONT BRAKE HOSE GSX750 1980 (T) (E01 E02 E06 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
5971149001
ref: 1
BOOT,MASTER CYLINDER
€ 8.50
2
0936010007
ref: 2
BOLT,UNION
€ 6.50
3
0916110005
ref: 3
WASHER
€ 2.00
4
5948045401
ref: 4
HOSE,FRONT BRAKE
€ 51.00
5
5948045630
ref: 5
HOSE,FRONT BRAKE
€ 42.00
6
5949145000
ref: 6
JOINT,BRAKE HOSE
€ 29.00
7
0110706208
ref: 7
BOLT
€ 2.00
8
0832121068
ref: 8
LOCK WASHER
€ 2.50
9
5924045200
ref: 9
HOSE,BRAKE NO.2
€ 65.00
10-1
5926849000
ref: 10-1
TO 59268-49001, MODE
GUIDE,FRONT BRAKE HOSE
€ 7.00
10-2
5926849001
ref: 10-2
MODEL X
GUIDE,BRAKE HOSE NO.2
€ 7.00
11
5924449000
ref: 11
BUSH,BRAKE HOSE GUIDE,NO.2
€ 4.50
12
0936010007
ref: 12
BOLT,UNION
€ 6.50
13
0916110005
ref: 13
WASHER
€ 2.00
14
0936010008
ref: 14
BOLT,UNION
€ 7.00
15
0916110005
ref: 15
WASHER
€ 2.00
