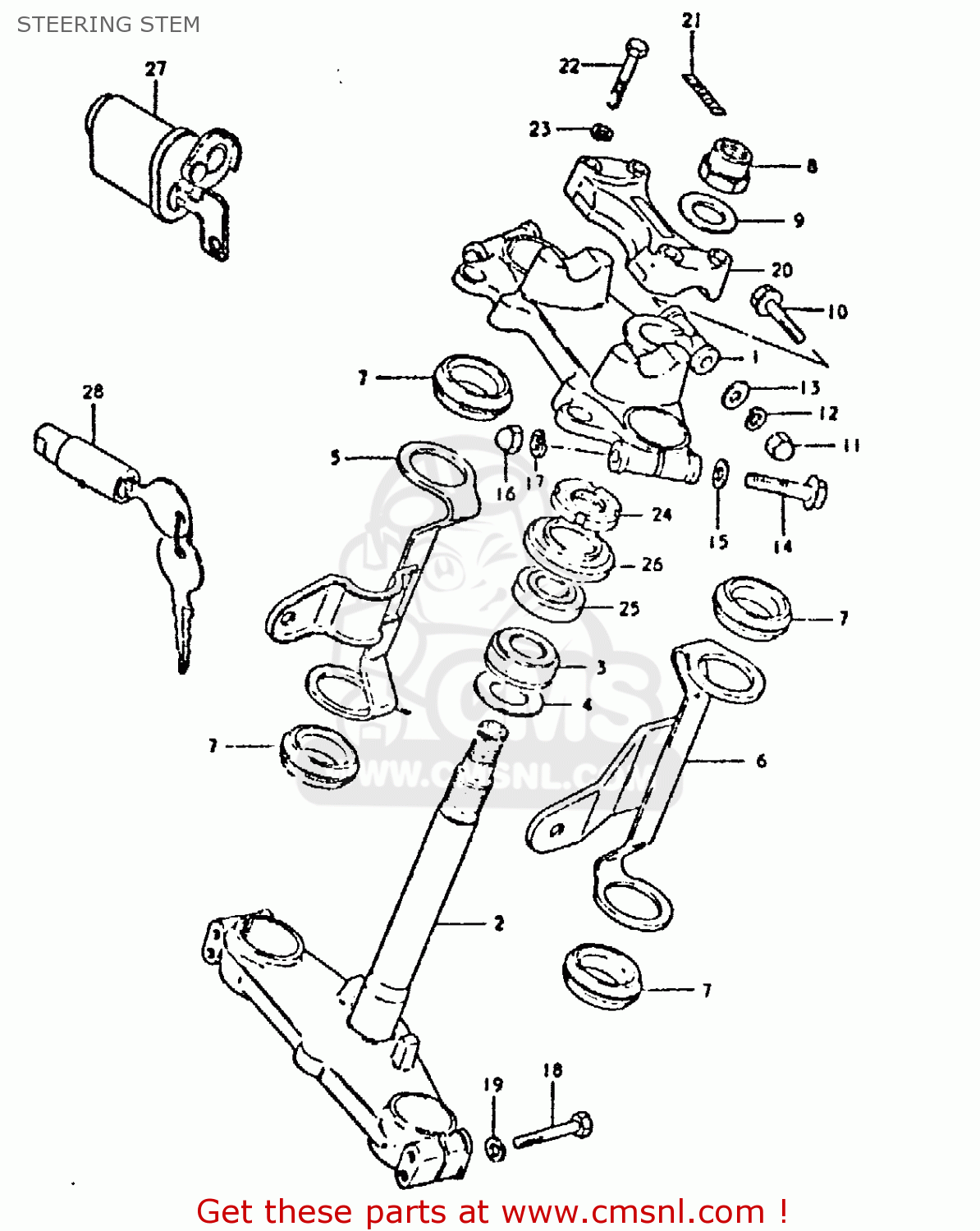

STEERING STEM

ref

part #

description

quantity

1

5131147200291
ref: 1

HEAD,STEERING STEM

€ 125.00

2-1

5140045841
ref: 2-1

STEM,STEERING

€ 175.50

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-3

NOTUSED
ref: 2-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

0926530005
ref: 3

BEARING

€ 49.50

4

0821130402
ref: 4

WASHER,THRUST

€ 4.00

5

5153045400291
ref: 5

BRACKET,HEADLAMP,RIGHT

€ 35.50

6

5154045400291
ref: 6

BRACKET,HEADLAMP,LEFT

€ 37.50

7

5155347000
ref: 7

CUSHION,HEADLAMP BRACKET

€ 3.50

8

5135345000
ref: 8

NUT,FR FORK UPR BRACKET

€ 10.50

9

5135631700
ref: 9

WASHER

€ 9.50

10

0151708508
ref: 10

BOLT

€ 3.50

11

0831311085
ref: 11

NUT,M8X1.25X12

€ 2.00

12

0832121085
ref: 12

LOCK WASHER

€ 2.50

13

0832211088
ref: 13

WASHER

€ 2.00

14-1

0110710558
ref: 14-1
MODEL T

BOLT 10X55

€ 3.50

14-2

0151710558
ref: 14-2
MODEL X

BOLT 10X55

€ 3.00

15

0832211108
ref: 15

WASHER

€ 2.50

16-1

0831311108
ref: 16-1
MODEL T

NUT, LOWER LH

€ 2.50

16-2

0914510002
ref: 16-2
MODEL X

NUT

€ 4.00

17

0832131108
ref: 17

LOCK WASHER

€ 2.00

18

0110708458
ref: 18

BOLT 8X45

€ 2.50

19

0832131088
ref: 19

WASHER,LOCK,8.

€ 2.00

20

5621145400291
ref: 20

HOLDER,HANDLEBAR

€ 25.50

21

5621245400
ref: 21

EMBLEM,HANDLE CLAMP

€ 4.00

22

0120408357
ref: 22

BOLT

€ 3.50

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

5163128000
ref: 24

NUT,STEERING STEM(25X44X10)

€ 12.50

25

0926525008
ref: 25

TAPER,ROLLER BEARING

€ 48.50

26

5164349001
ref: 26

DUST SEAL,STEERING,UPPER

€ 7.50

27

NOTUSED
ref: 27

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

28

NOTUSED
ref: 28

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
