FRAME

GSX750 1980 (T) (E01 E02 E06 E22 E24)

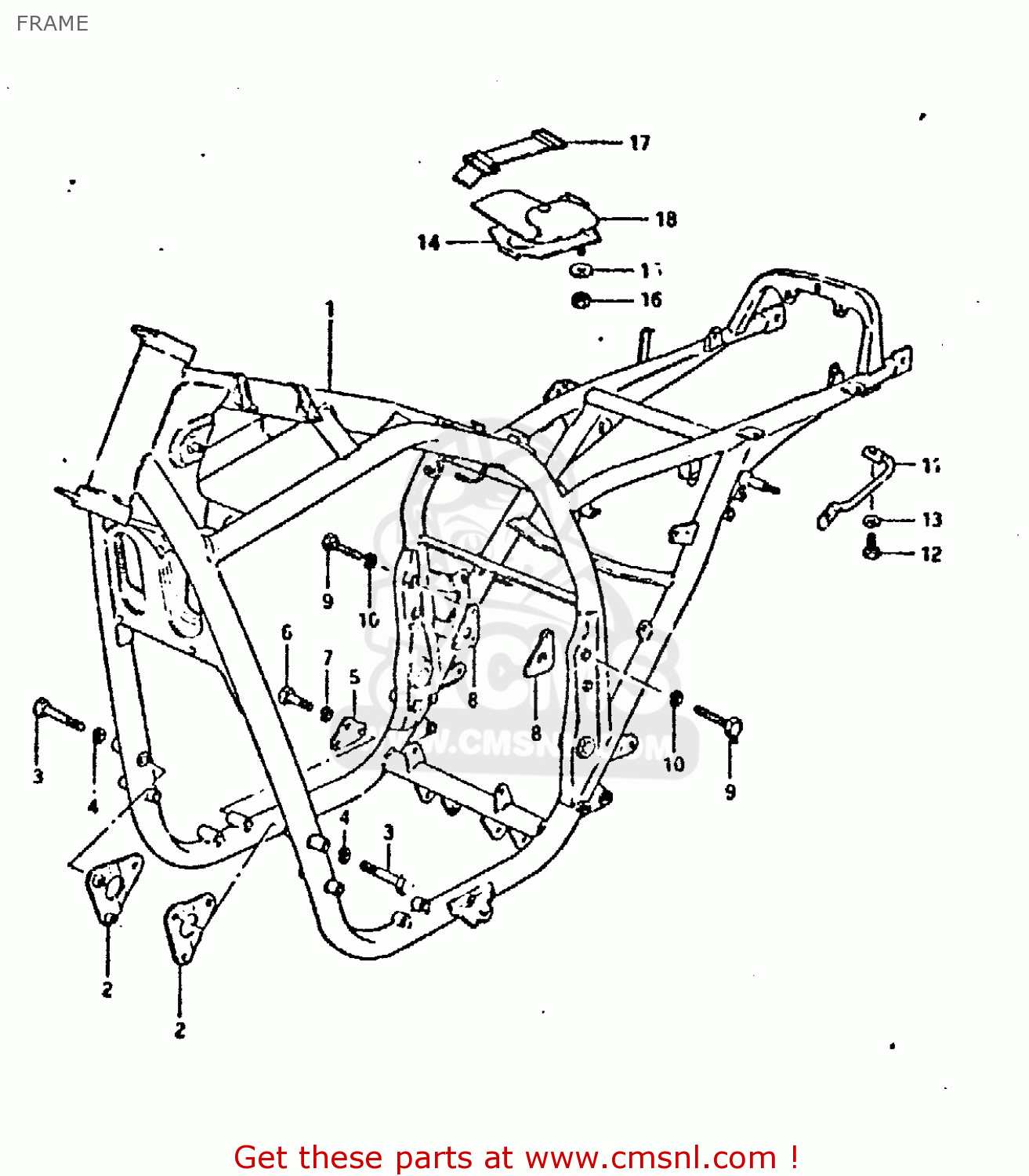

Frame diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)

FRAME GSX750 1980 (T) (E01 E02 E06 E22 E24)
FRAME GSX750 1980 (T) (E01 E02 E06 E22 E24)
FRAME GSX750 1980 (T) (E01 E02 E06 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
4110045400019
ref: 1-1
FRAME
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-5
NOTUSED
ref: 1-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
4191049200019
ref: 2
PLATE,ENG MTG NO.1
4191049200019
€ 18.50
3
0110708658
ref: 3
BOLT
0110708658
€ 3.00
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
4192149000019
ref: 5
PLATE,ENGINE MOUNTING
€ 30.00
6
0110708168
ref: 6
BOLT
€ 2.00
7
0832121088
ref: 7
LOCK WASHER
0832121088
€ 2.00
8
4194049000019
ref: 8
PLATE,ENGINE MOUNTING
4194049000019
€ 60.00
9
0110708358
ref: 9
BOLT
0110708358
€ 3.50
10
0832121088
ref: 10
LOCK WASHER
0832121088
€ 2.00
11
4161049201
ref: 11
GRIP,FRAME
€ 28.50
12
0110708168
ref: 12
BOLT
€ 2.00
13
0832211088
ref: 13
WASHER
0832211088
€ 2.00
14
4155049200
ref: 14
HOLDER,TOOL
€ 10.00
15
0916006007
ref: 15
WASHER
0916006007
€ 2.00
16
0831011068
ref: 16
NUT
0831011068
€ 2.50
17
0946200072
ref: 17
BAND
0946200072
€ 3.50
18-1
0980000215
ref: 18-1
* : ASTERISK SHOWS E
TOOL SET
€ 50.00
18-2
NOTUSED
ref: 18-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
