STARTER CLUTCH

GSX750 1980 (T) (E01 E02 E06 E22 E24)

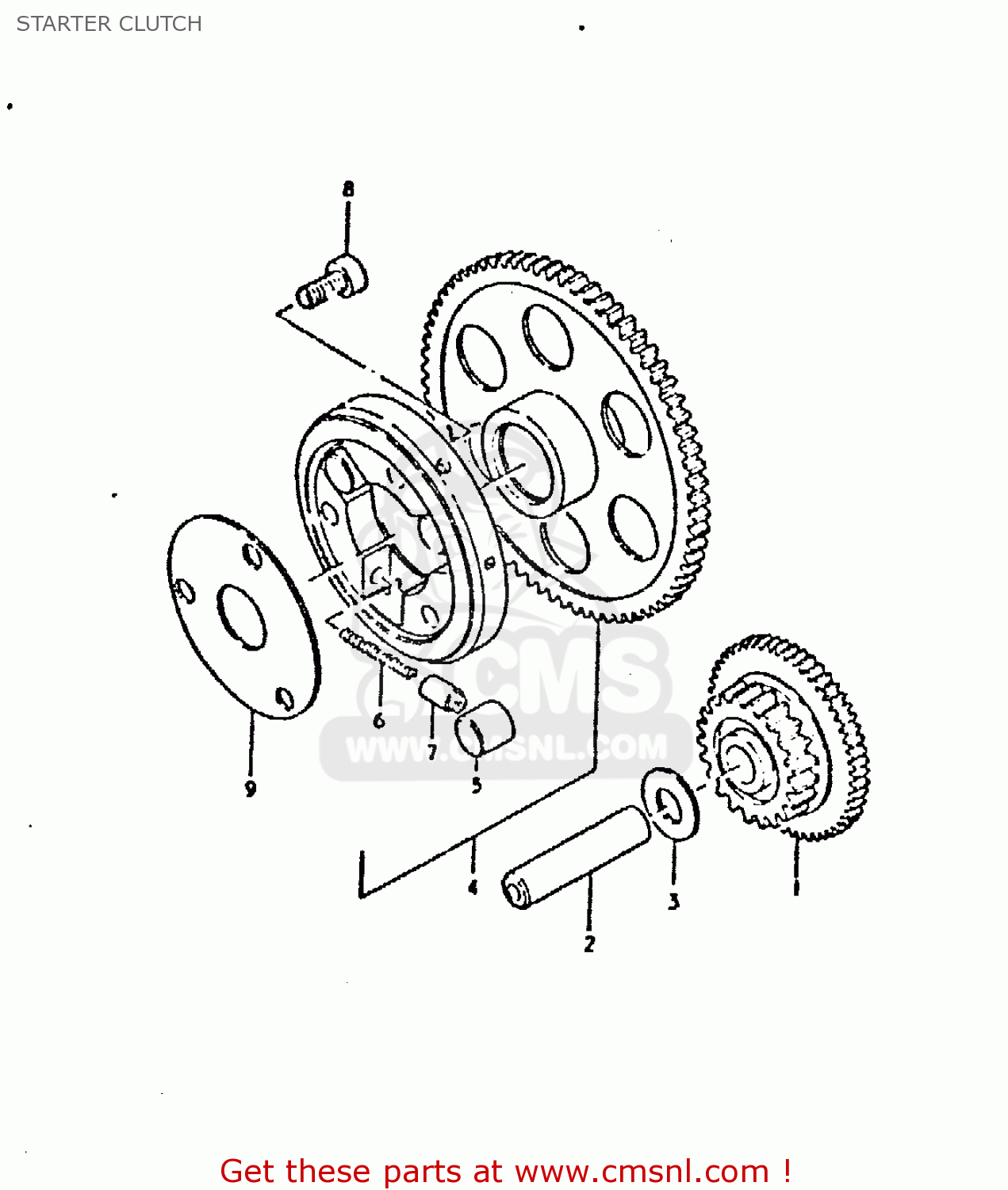

Starter clutch diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)

STARTER CLUTCH GSX750 1980 (T) (E01 E02 E06 E22 E24)

STARTER CLUTCH GSX750 1980 (T) (E01 E02 E06 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

1261145000
ref: 1

GEAR,STARTER IDLE

€ 65.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

0821114225
ref: 3

WASHER

€ 3.00

4

1260045830
ref: 4

CLUTCH SET,STARTER

€ 132.50

5

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

6

0944004015
ref: 6

SPRING

€ 2.50

7

1263331000
ref: 7

PIECE,PUSH

€ 9.00

8

0910608006
ref: 8

BOLT

€ 3.00

9

1264945000
ref: 9

SHIM,STARTER CLUTCH HUB

€ 7.00
