CYLINDER HEAD
GSX750 1980 (T) (E01 E02 E06 E22 E24)

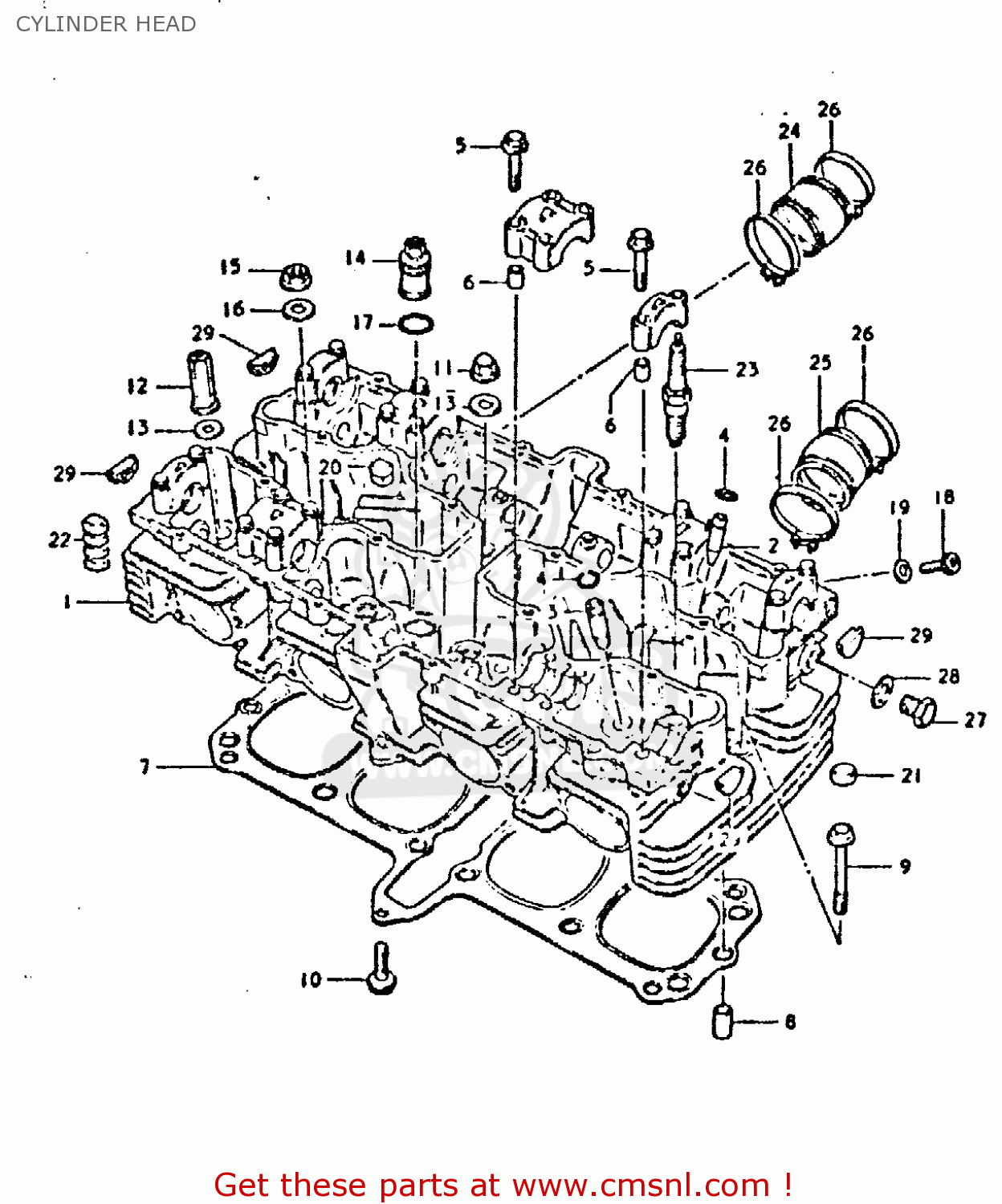

Cylinder head diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)
CYLINDER HEAD GSX750 1980 (T) (E01 E02 E06 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110045840
ref: 1-1
FOR 11151-45000
HEAD ASSEMBLY,CYLINDER
€ 1,521.00
1-2
1110045841
ref: 1-2
FOR 11251-48000
HEAD ASSEMBLY,CYLINDER
€ 1,521.00
2
1111549290
ref: 2
GUIDE,INTAKE VALVE
€ 19.50
3
1111549290
ref: 3
GUIDE,INTAKE VALVE
€ 19.50
4
0938110004
ref: 4
RING,SNAP
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7
1114145401
ref: 7
FROM 11141-45400
GASKET,CYLINDER HEAD (MCA)
€ 83.50
8
0421111189
ref: 8
PIN
€ 2.00
9
0151706558
ref: 9
BOLT
€ 2.50
10
0151706308
ref: 10
BOLT
€ 2.00
11
0915910026
ref: 11
NUT
€ 6.00
12
0915910029
ref: 12
NUT
€ 59.50
13
0916810019
ref: 13
GASKET (NAS)
€ 3.50
14
1114549200
ref: 14
NUT,CYLINDER HEAD SEAL
€ 12.50
15
0831616108
ref: 15
NUT
€ 2.00
16
0916010039
ref: 16
WASHER(10.5X22X2.3)
€ 2.50
17
0928017002
ref: 17
O RING(D:2.4,ID:16.8)
€ 3.50
18
0910605006
ref: 18
BOLT
€ 2.00
19
0916805010
ref: 19
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
20
1115245000
ref: 20
PAD
€ 3.50
21
1115145000
ref: 21
FOR 11100-45840
PAD,CYLINDER HEAD
€ 3.00
22
1125148000
ref: 22
FOR 11100-45841
PAD,CYLINDER
€ 6.50
23-1
NOTUSED
ref: 23-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
23-2
NOTUSED
ref: 23-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
23-3
0948200149
ref: 23-3
E2, E4, E16, E17, E1
SPARK PLUG DR8ES-L
€ 3.50
23-4
0948200223
ref: 23-4
E2, E4, E16, E17, E1
PLUG,SPARK(X24ESR-U)
€ 3.50
24
1311145400
ref: 24
PIPE,INTAKE,R
€ 25.00
25
1312145400
ref: 25
PIPE,INTAKE
€ 25.00
26
0940250306
ref: 26
CLAMP
€ 6.00
27
0924714012
ref: 27
PLUG (14X12)
€ 3.50
28
0916814004
ref: 28
GASKET(14X19.2X2) (NAS)
€ 2.50
29
0924123002
ref: 29
PLUG
€ 8.50
