GSX750 1980 (T) (E01 E02 E06 E22 E24)

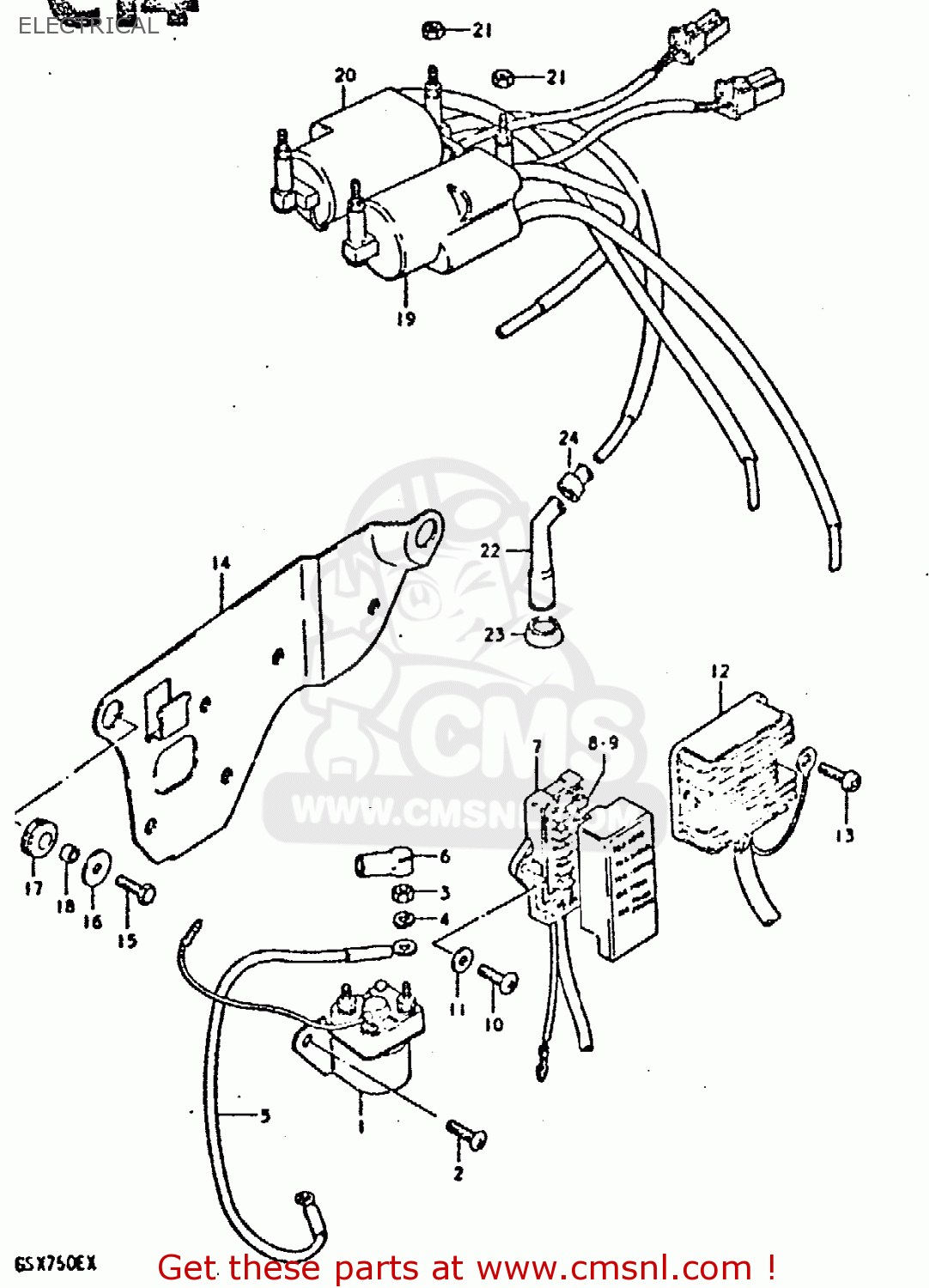

Electrical diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)
ELECTRICAL GSX750 1980 (T) (E01 E02 E06 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206108
ref: 2
SCREW
€ 1.50
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
€ 2.50
5
3385049001
ref: 5
WIRE,STARTER MOTOR LEAD
€ 8.50
6
3186135100
ref: 6
CAP,STARTER RELAY
€ 4.50
7
3674049200
ref: 7
BOX ASSEMBLY,FUSE
€ 94.00
8
0948110001
ref: 8
FUSE(10A)
€ 2.00
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10-1
0211206208
ref: 10-1
SCREW
€ 2.00
10-2
0211206168
ref: 10-2
SCREW
€ 2.50
11
0832221068
ref: 11
WASHER
€ 2.00
12
3280045210
ref: 12
RECTIFIER ASSEMBLY
€ 397.00
13
0211206128
ref: 13
SCREW 6X12
€ 2.00
14
4741049200
ref: 14
PLATE,ELECTRIC PARTS HOLDER
€ 10.50
15
0110706168
ref: 15
BOLT, UPPER
€ 3.00
16
0916006012
ref: 16
WASHER(6,5X22X1.6)
€ 2.00
17
0932008013
ref: 17
CUSHION
€ 4.00
18
0918007005
ref: 18
SPACER (7X9X7)
€ 2.50
19
3341049110
ref: 19
COIL ASSEMBLY,IGNITION
€ 133.50
20
3342049110
ref: 20
COIL ASSEMBLY,IGNITION
€ 133.50
21
0831011068
ref: 21
NUT
€ 2.50
22
3351045010
ref: 22
CAP ASSY,SPARK PLUG
€ 23.00
23
3354132410
ref: 23
SEAL,SPARK PLUG
€ 7.00
24
3354298000
ref: 24
SEAL,SPARK PLU
€ 4.50
