LEFT HANDLE SWITCH

GSX750 1980 (T) (E01 E02 E06 E22 E24)

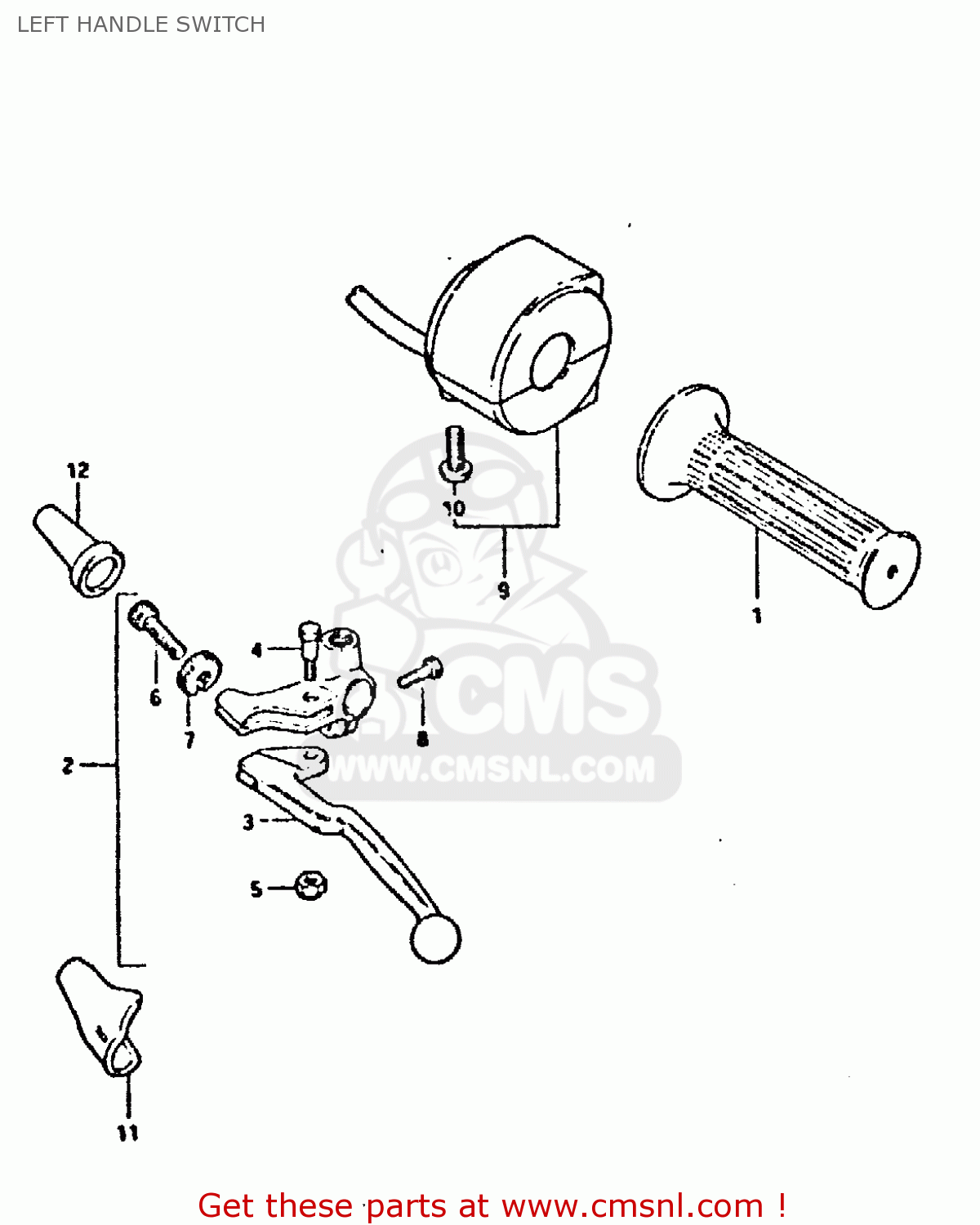

Left handle switch diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)

prices are in EUR

ref

part #

description

quantity

5721145030
ref: 1

GRIP,LEFT

€ 18.50

5750049101
ref: 2

LEVER ASSY, CLUTCH

€ 49.50

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

5743111011
ref: 4

BOLT,LEVER

€ 6.00

0831921068
ref: 5

NUT 6MM

€ 2.00

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

0110706208
ref: 8

BOLT

€ 2.00

9-1

3740045210
ref: 9-1
MODEL T

SWITCH ASSY, HANDLE LH

€ 161.00

9-2

3740045211
ref: 9-2
MODEL X

SWITCH ASSY, HANDLE LH

€ 161.00

0211205258
ref: 10

SCREW

€ 2.00

5766131000
ref: 11

COVER,CLUTCH LEVER

€ 5.50

5827331000
ref: 12

BOOT,CLUTCH CABLE

€ 2.50
