SEAT

GSX750 1980 (T) (E01 E02 E06 E22 E24)

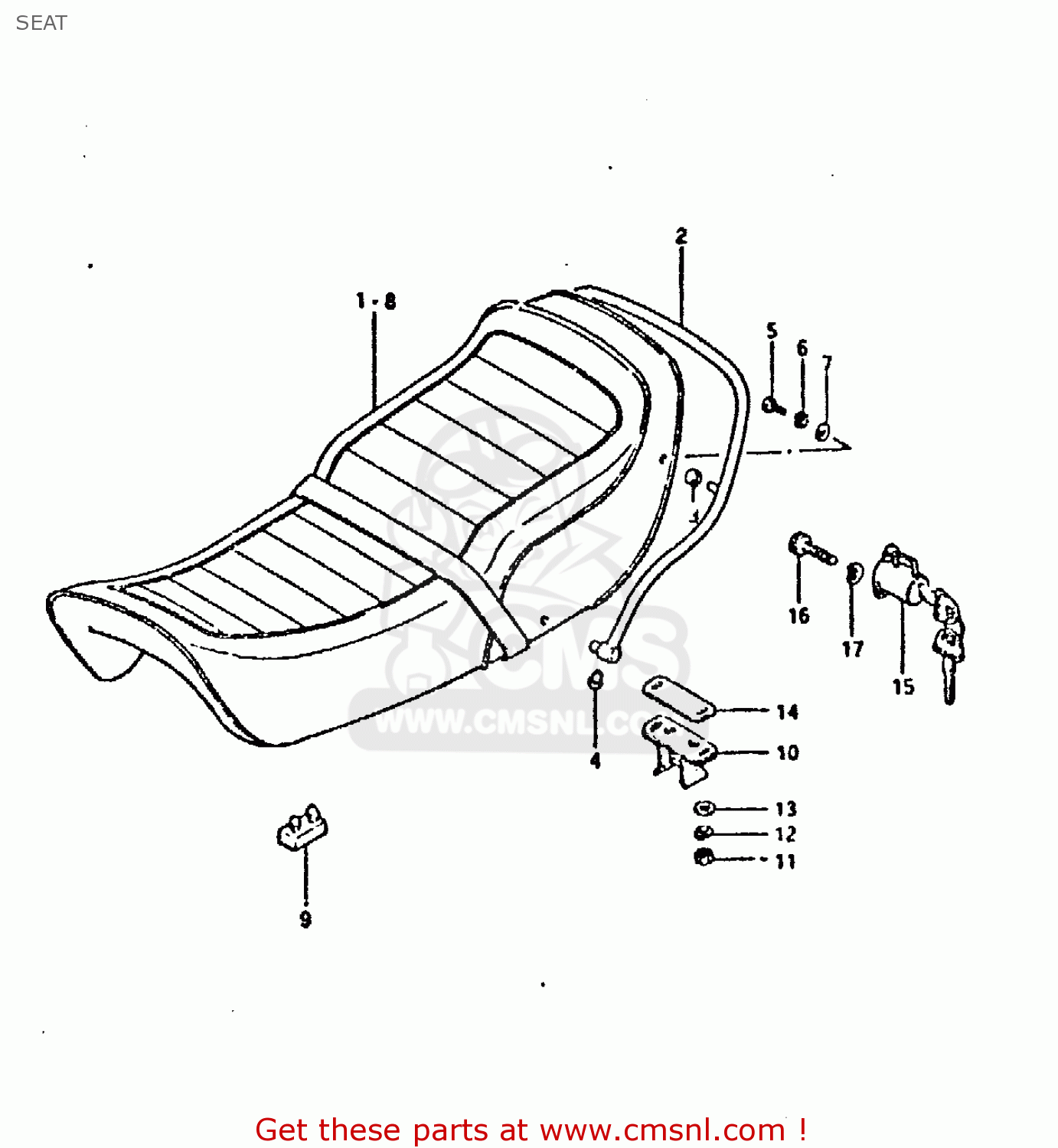

Seat diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)

SEAT GSX750 1980 (T) (E01 E02 E06 E22 E24)
SEAT GSX750 1980 (T) (E01 E02 E06 E22 E24)
SEAT GSX750 1980 (T) (E01 E02 E06 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
451004922041G
ref: 1
SEAT ASSY (BLACK)
€ 714.00
2
4621049200
ref: 2
HANDLE,PILLION RIDER
4621049200
€ 54.50
3
4621249000
ref: 3
CUSHION
4621249000
€ 15.00
4
4621349000
ref: 4
END,SHEET HANDLE
4621349000
€ 5.50
5
0110708208
ref: 5
BOLT
0110708208
€ 3.00
6
0832121088
ref: 6
LOCK WASHER
0832121088
€ 2.00
7
0832221088
ref: 7
WASHER
0832221088
€ 2.00
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
0932108006
ref: 9
CUSHION
0932108006
€ 3.00
10
4521049201
ref: 10
STRIKER, SEAT LOCK
4521049201
€ 7.00
11
0831022068
ref: 11
NUT 6MM
€ 2.50
12
0832121068
ref: 12
LOCK WASHER
0832121068
€ 2.50
13
0832221068
ref: 13
WASHER
0832221068
€ 2.00
14
4521749200
ref: 14
SHIM,SEAT LOCK STRIKER
€ 1.50
15
9570035821
ref: 15
LOCK ASSEMBLY,HELMET
9570035821
€ 57.50
16
0910606005
ref: 16
BOLT
€ 3.00
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
