REAR MASTER CYLINDER

GSX750 1980 (T) (E01 E02 E06 E22 E24)

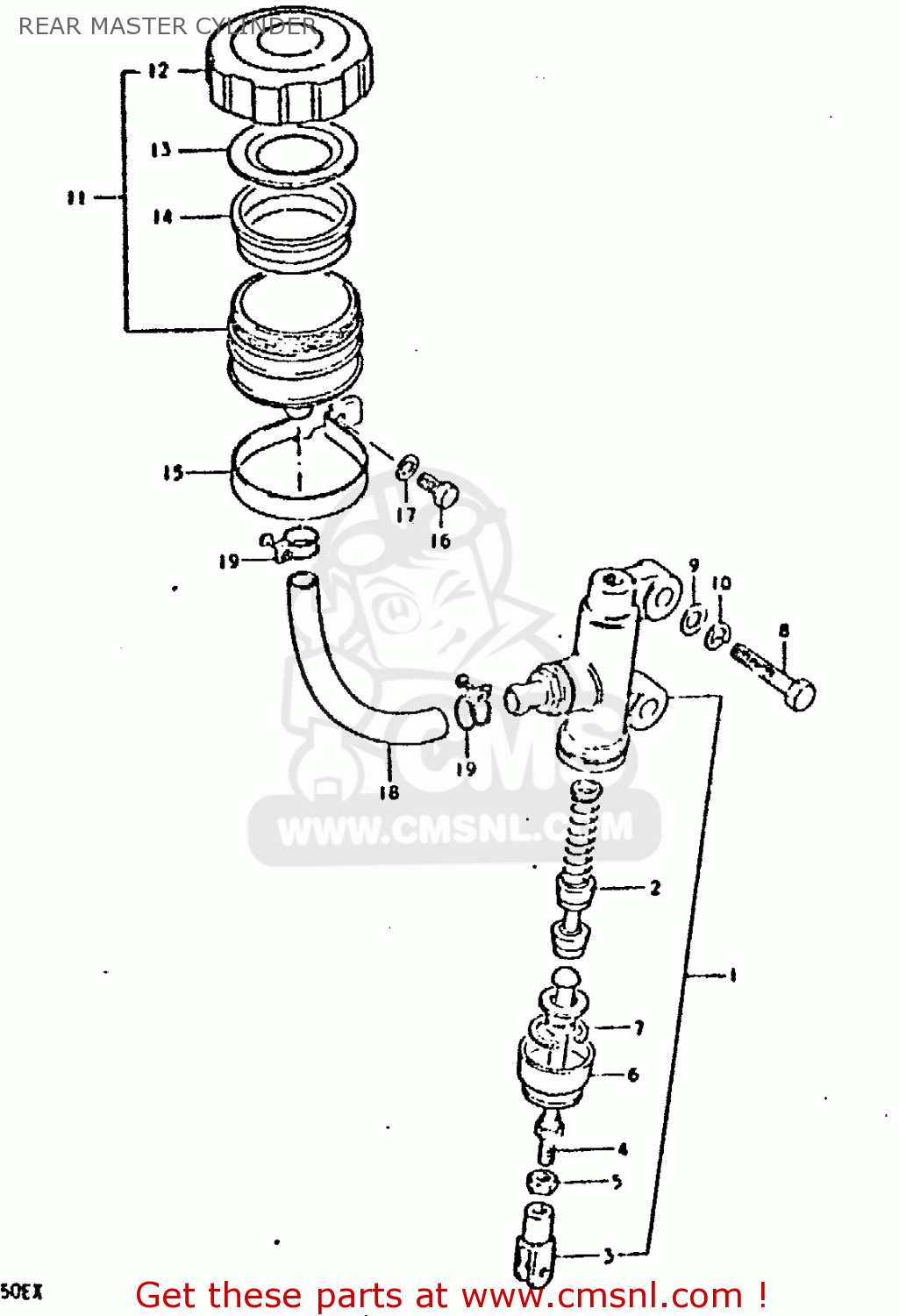

Rear master cylinder diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)

REAR MASTER CYLINDER GSX750 1980 (T) (E01 E02 E06 E22 E24)

REAR MASTER CYLINDER GSX750 1980 (T) (E01 E02 E06 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

6960047001
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

2

6960045810
ref: 2

PISTON/CUP SET

€ 53.00

3

6969245001
ref: 3

YOKE

€ 11.00

4

6967045000
ref: 4

ROD,PUSH

€ 18.50

5

0831012088
ref: 5

NUT

€ 2.00

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0110708308
ref: 8

BOLT (8X30)

€ 2.50

9

0832211088
ref: 9

WASHER

€ 2.00

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

6974047001
ref: 11

TANK ASSEMBLY,RESERVOIR

€ 41.00

12

5966933621
ref: 12

CAP

€ 35.00

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966718441
ref: 14

DIAPHRAGM

€ 8.50

15

0940251601
ref: 15

CLAMP

€ 6.50

16

0110706168
ref: 16

BOLT, UPPER

€ 3.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

6973149000
ref: 18

HOSE,RESERVOIR TANK

€ 34.00

19

0940016301
ref: 19

CLAMP

€ 4.50
