TRANSMISSION
GSX750 1980 (T) (E01 E02 E06 E22 E24)

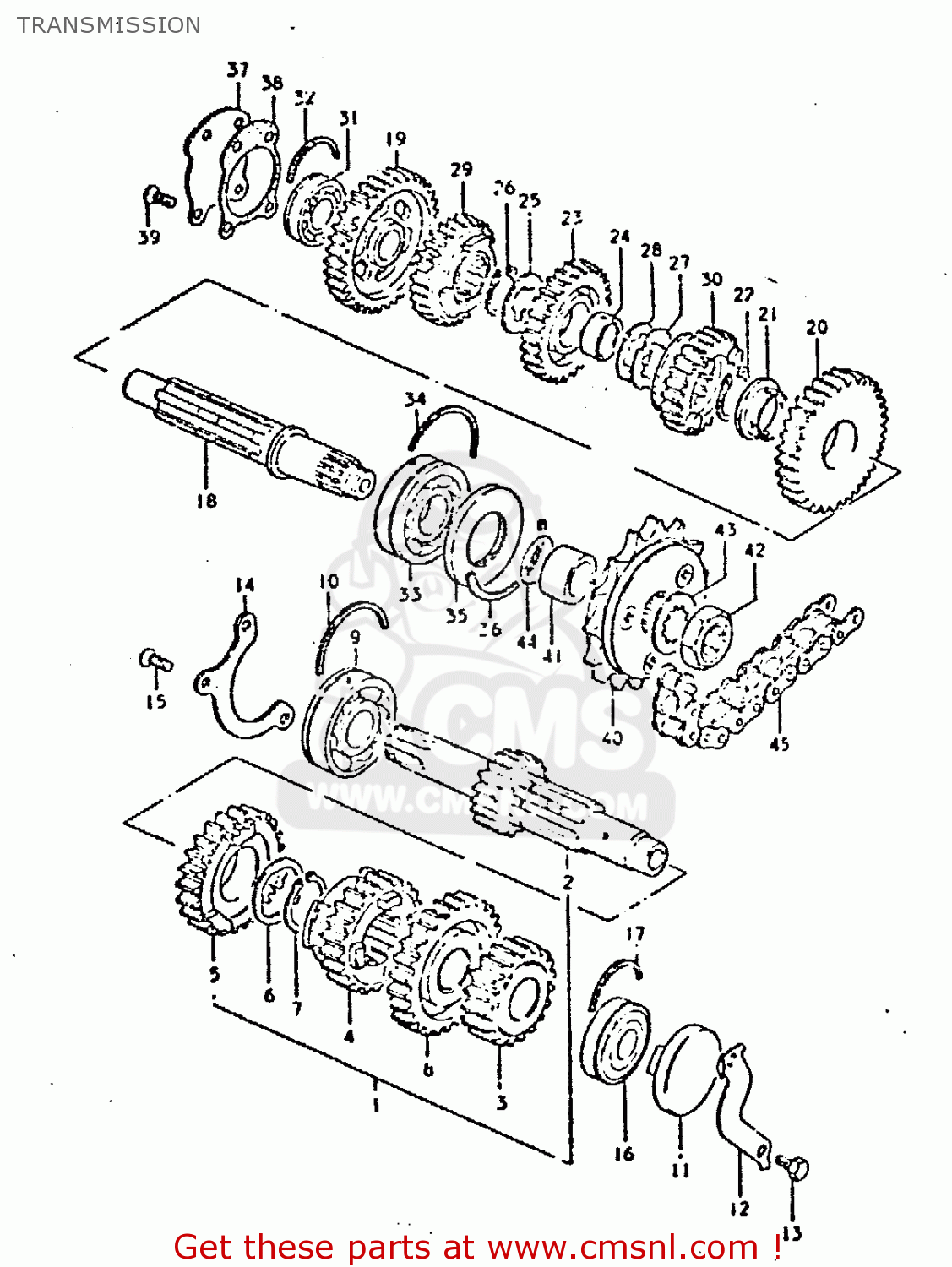

Transmission diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)
TRANSMISSION GSX750 1980 (T) (E01 E02 E06 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2412045400
ref: 1
SHAFT ASSEMBLY,COUNTER
€ 335.00
2
2410045810
ref: 2
SHAFT,COUNTER
€ 325.50
3
2422149001
ref: 3
GEAR,SECOND DRIVE
€ 60.00
4
2423149000
ref: 4
GEAR,THIRD DRIVE
€ 104.50
5
2424049000
ref: 5
GEAR,FOURTH DRIVE
€ 104.50
6
0916728001
ref: 6
WASHER,LOCK
€ 3.00
7
0833111289
ref: 7
CIRCLIP
€ 2.50
8
2425049000
ref: 8
GEAR,FIFTH DRIVE
€ 108.50
9
0926225051
ref: 9
BEARING(25X62X17)
€ 59.50
10
0939062006
ref: 10
C-RING
€ 5.00
11
0924147004
ref: 11
PLUG
€ 12.00
12
2311745000
ref: 12
RETAINER,CL PUSH ROD OIL SEAL
€ 14.00
13
0110706128
ref: 13
BOLT
€ 2.00
14
2474145000
ref: 14
RETAINER,CNTR SHAFT BEARING
€ 8.00
15
0212206168
ref: 15
SCREW
€ 2.00
16
0926220044
ref: 16
BEARING(20X47X14)
€ 30.00
17
0939047003
ref: 17
C RING
€ 3.00
18-1
2413149001
ref: 18-1
MODEL T
SHAFT,DRIVE
€ 146.50
18-2
2413149002
ref: 18-2
MODEL X
SHAFT,DRIVE
€ 146.50
19
2431045000
ref: 19
GEAR,FIRST DRIVEN
€ 118.50
20
2432145400
ref: 20
GEAR,SECOND DRIVEN
€ 127.00
21
0930128001
ref: 21
BUSH(28X32X2)
€ 19.50
22
0833111289
ref: 22
CIRCLIP
€ 2.50
23
2433145100
ref: 23
GEAR,THIRD DRIVEN
€ 139.50
24
2433249000
ref: 24
BUSH,3RD DRIVEN GEAR
€ 13.50
25
0916728001
ref: 25
WASHER,LOCK
€ 3.00
26
0833111289
ref: 26
CIRCLIP
€ 2.50
27
0916728002
ref: 27
WASHER,LOCK
€ 3.00
28
0916928001
ref: 28
WASHER
€ 3.00
29
2434145100
ref: 29
GEAR,FOURTH DRIVEN
€ 52.00
30
2435145400
ref: 30
GEAR,FIFTH DRIVEN
€ 139.50
31
0926220041
ref: 31
BEARING
€ 30.00
32
0939047003
ref: 32
C RING
€ 3.00
33
0926225051
ref: 33
BEARING(25X62X17)
€ 59.50
34
0939062006
ref: 34
C-RING
€ 5.00
35
0928332012
ref: 35
SEAL,OIL(32X62X7)
€ 19.00
36
0939062008
ref: 36
C RING
€ 3.50
37
2476145000
ref: 37
PLATE,DRIVE SHAFT
€ 4.50
38
2476245000
ref: 38
GASKET,DRIVESHAFT PLATE (MCA)
€ 2.50
39
0212206168
ref: 39
SCREW
€ 2.00
40
2751049001
ref: 40
SPROCKET,ENGINE
€ 62.50
41
0918025052
ref: 41
SPACER(25X32X18.6)
€ 9.00
42
0915920001
ref: 42
NUT
€ 12.00
43
0916725014
ref: 43
WASHER
€ 2.50
44
0928025001
ref: 44
O RING(D:1,ID:24.5)
€ 2.50
45
2760045410
ref: 45
CHAIN ASSEMBLY,DRIVE
€ 266.50
