GEAR SHIFTING
GSX750 1980 (T) (E01 E02 E06 E22 E24)

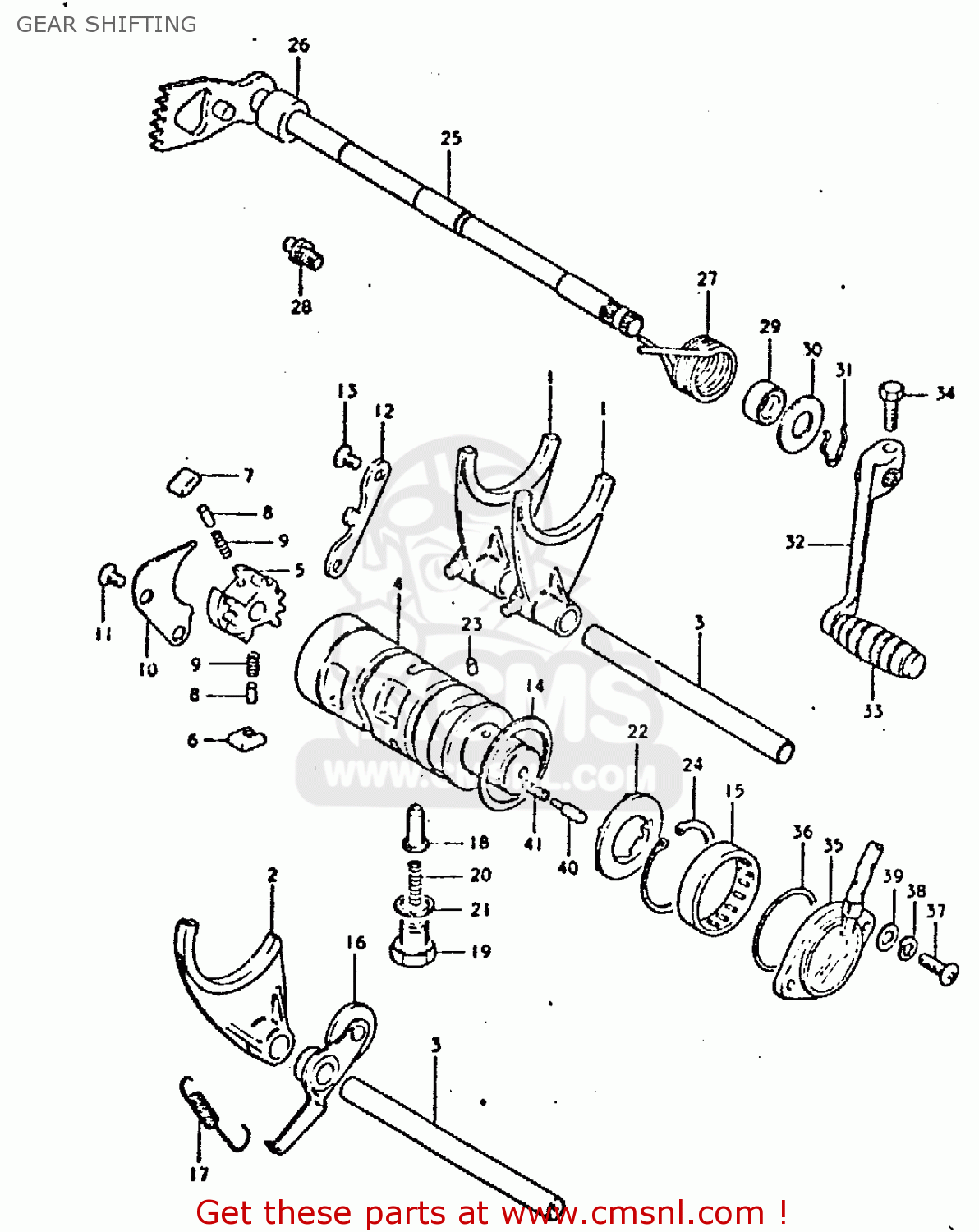

Gear shifting diagram GSX750 1980 (T) (E01 E02 E06 E22 E24)
GEAR SHIFTING GSX750 1980 (T) (E01 E02 E06 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2521134000
ref: 1
FORK,GEAR SHIFT NO.1
€ 54.50
2
2523134000
ref: 2
FORK,GEAR SHIFT NO.3
€ 72.50
3
2541149200
ref: 3
SHAFT,GEAR SHIFT FORK
€ 13.00
4
2531045400
ref: 4
CAM,GEAR SHIFT
€ 108.00
5
2532211000
ref: 5
RETAINER,GEAR SHIFT CAM
€ 14.50
6
2532311000
ref: 6
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
€ 1.50
9
0944004003
ref: 9
SPRING
€ 1.50
10
2533149200
ref: 10
LIFTER,GEAR SHIFT PAWL
€ 43.50
11
0212206128
ref: 11
SCREW
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
€ 51.50
13
0212206128
ref: 13
SCREW
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
€ 2.50
15
0926325018
ref: 15
BEARING(25X32X12)
€ 17.50
16
2535045400
ref: 16
STOPPER,GEAR SHIFTING
€ 8.50
17
0944308019
ref: 17
SPRING
€ 2.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
20-1
0944006018
ref: 20-1
MODEL T
SPRING
€ 1.50
20-2
0944006020
ref: 20-2
MODEL X
SPRING
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
22
2538145400
ref: 22
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
23
0621104063
ref: 23
PIN 4X6
€ 2.00
24
0833111258
ref: 24
CIRCLIP
€ 2.00
25
2551045400
ref: 25
SHAFT,GEAR SHIFT
€ 88.00
26
0918012088
ref: 26
SPACER
€ 0.00
27
0944426017
ref: 27
SPRING
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
OIL SEAL
€ 7.00
30
0916012020
ref: 30
WASHER (12.5X27X1.6)
€ 2.00
31
0938412001
ref: 31
SPRING,RETAINER
€ 2.00
32
2560033003
ref: 32
LEVER ASSEMBLY,GEAR SHIFTING
€ 136.00
33
2565216500
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 4.00
34
0110708208
ref: 34
BOLT
€ 3.00
35
3772045100
ref: 35
TERMINAL BASE ASSY,GEAR SHIFT
€ 92.50
36
0928026003
ref: 36
O-RING (D:2.4 ID:26.2)
€ 2.50
37
0211205208
ref: 37
SCREW 5X20
€ 3.00
38
0832121058
ref: 38
LOCK WASHER
€ 2.00
39
0832221058
ref: 39
WASHER
€ 2.50
40
0920905011
ref: 40
PIN(5X15.5)
€ 2.00
41
0944004010
ref: 41
SPRING
€ 1.50
