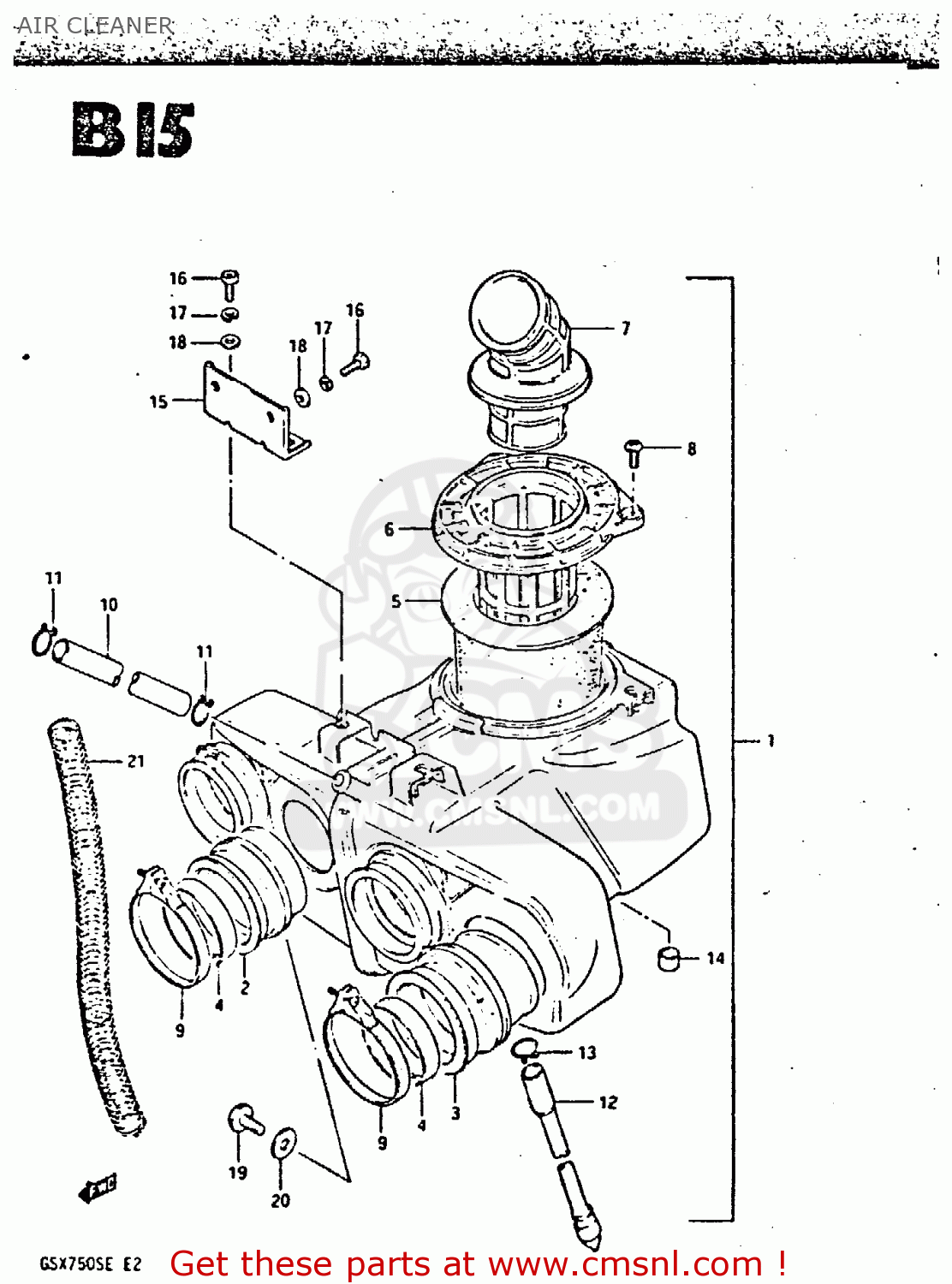

AIR CLEANER

ref

part #

description

quantity

1

1370031310
ref: 1

CLEANER ASSEMBLY,AIR

€ 205.50

2

1388131300
ref: 2

TUBE,AIR CLEANER OUTLET

€ 22.50

3

1388231300
ref: 3

TUBE,AIR CLEANER OUTLET

€ 15.00

4

1388547030
ref: 4

RING,CARBURETOR AIR INLET HOSE

€ 8.00

5

1378031310
ref: 5

FILTER,AIR CLEANER

€ 38.00

6

1379131300
ref: 6

HOLDER,AIR FILTER

€ 10.50

7

1389131300
ref: 7

TUBE,AIR CLEANER INLET

€ 25.50

8

0214205128
ref: 8

SCREW

€ 1.50

9

0940260207
ref: 9

CLAMP

€ 4.50

10

0934311005
ref: 10

HOSE

€ 30.00

11

0940114301
ref: 11

CLIP

€ 2.00

12

1387011293
ref: 12

DRAIN TUBE

€ 13.50

13

1382400A00
ref: 13

CLIP

€ 2.50

14

1378731300
ref: 14

FILTER,DRAIN

€ 0.00

15

1376131310
ref: 15

BRACKET,AIR CLEANER

€ 14.00

16

0912806011
ref: 16

SCREW(6X12)

€ 3.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

0832221068
ref: 18

WASHER

€ 2.00

19

0214206167
ref: 19

SCREW

€ 2.00

20

0916006007
ref: 20

WASHER

€ 2.00

21

0944010009
ref: 21

SPRING

€ 10.50

all assemblies
