STARTING MOTOR

GSX750S 1984 (E) UNITED KINGDOM (E02)

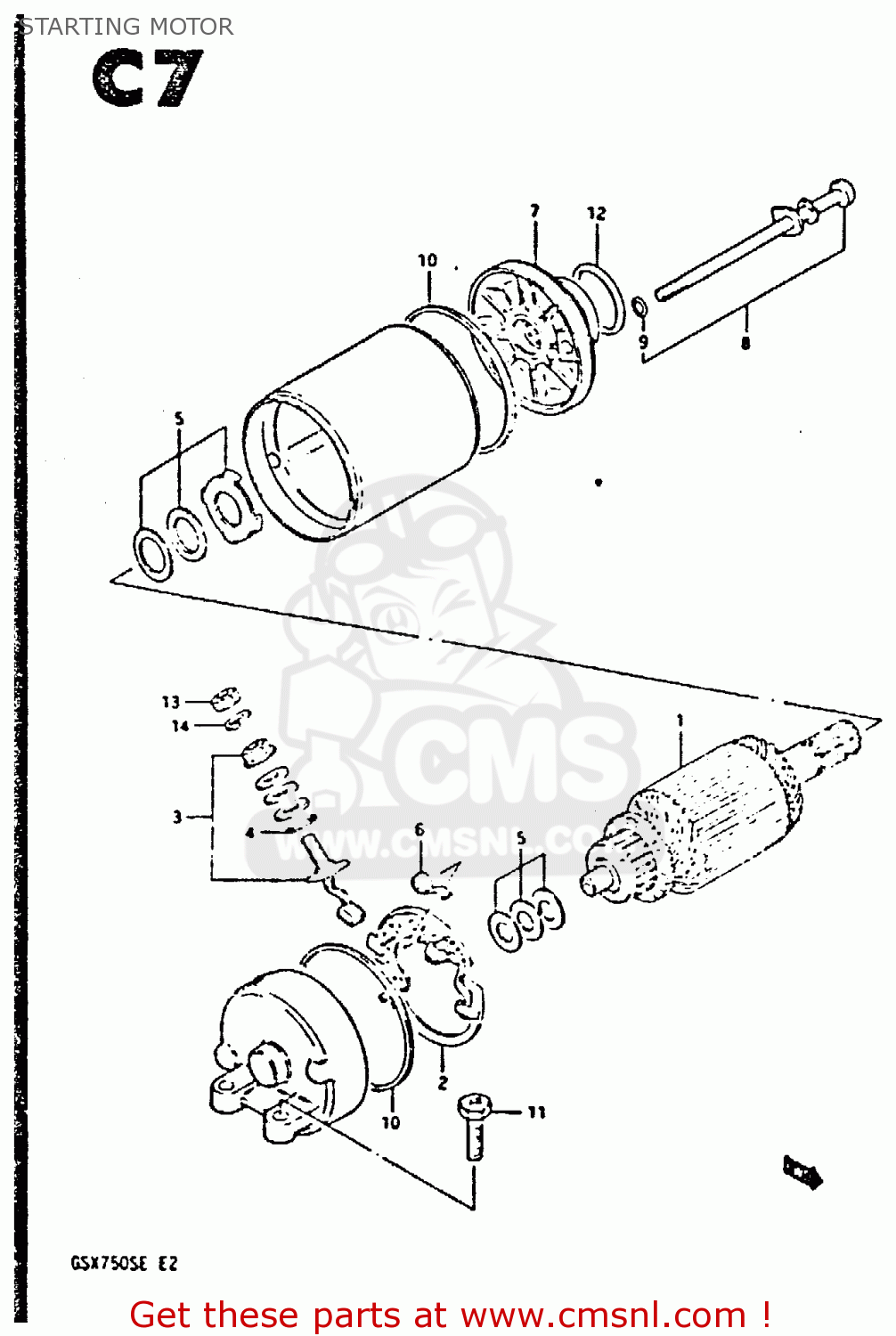

Starting motor diagram GSX750S 1984 (E) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

3110031300
ref: 0

MOTOR ASSEMBLY,STARTING

€ 590.00

3131131300
ref: 1

ARMATURE

€ 138.50

3113231300
ref: 2

HOLDER SET,BRUSH(-)

€ 55.50

3113031300
ref: 3

TERMINAL SET,BRUSH,PLUS

€ 36.00

3114349040
ref: 4

O RING

€ 3.00

3117031300
ref: 5

SHIM SET,STARTING MOTOR

€ 10.50

3113531300
ref: 6

SPRING,BRUSH

€ 4.00

3115031300
ref: 7

BRACKET SET,STARTING MOTOR

€ 86.50

3128031300
ref: 8

BOLT SET,STARTING MOTOR

€ 0.00

3114349040
ref: 9

O RING

€ 3.00

3126431300
ref: 10

O RING

€ 7.50

0912806024
ref: 11

SCREW (6X25)

€ 2.50

0928024003
ref: 12

O RING(D:3,ID:24.5)

€ 2.00

0831011066
ref: 13

NUT

€ 2.00

0832121066
ref: 14

WASHER,LOCK

€ 2.00
