FRONT FENDER

GSX750S 1984 (E) UNITED KINGDOM (E02)

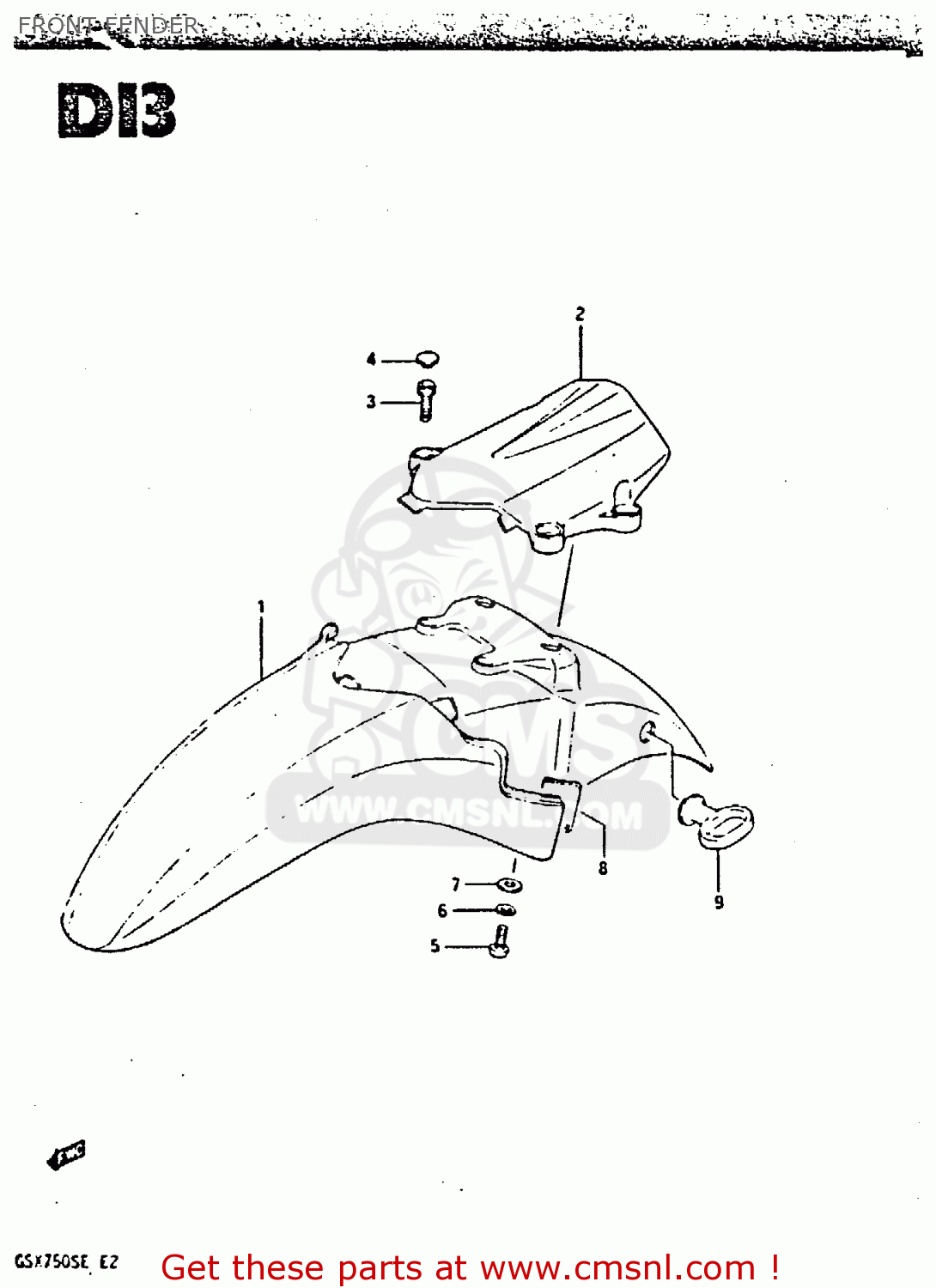

Front fender diagram GSX750S 1984 (E) UNITED KINGDOM (E02)

FRONT FENDER GSX750S 1984 (E) UNITED KINGDOM (E02)

FRONT FENDER GSX750S 1984 (E) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1

5311108A0016D
ref: 1

FENDER, FRONT (WHITE)

€ 177.00

2

5311408A0013T
ref: 2

BRACE, FRONT FENDER (GOLD)

€ 50.50

3

0711008165
ref: 3

BOLT

€ 3.00

4

0925006004
ref: 4

CAP(OD:14.5)

€ 1.50

5

0211206128
ref: 5

SCREW 6X12

€ 2.00

6

0832121067
ref: 6

WASHER,LOCK

€ 2.50

7

0832221067
ref: 7

WASHER

€ 2.00

8

5343100A00
ref: 8

CUSHION

€ 4.00

9

5862121203A
ref: 9

GUIDE,CABLE

€ 7.50
