LEFT HANDLE SWITCH

GSX750S 1984 (E) UNITED KINGDOM (E02)

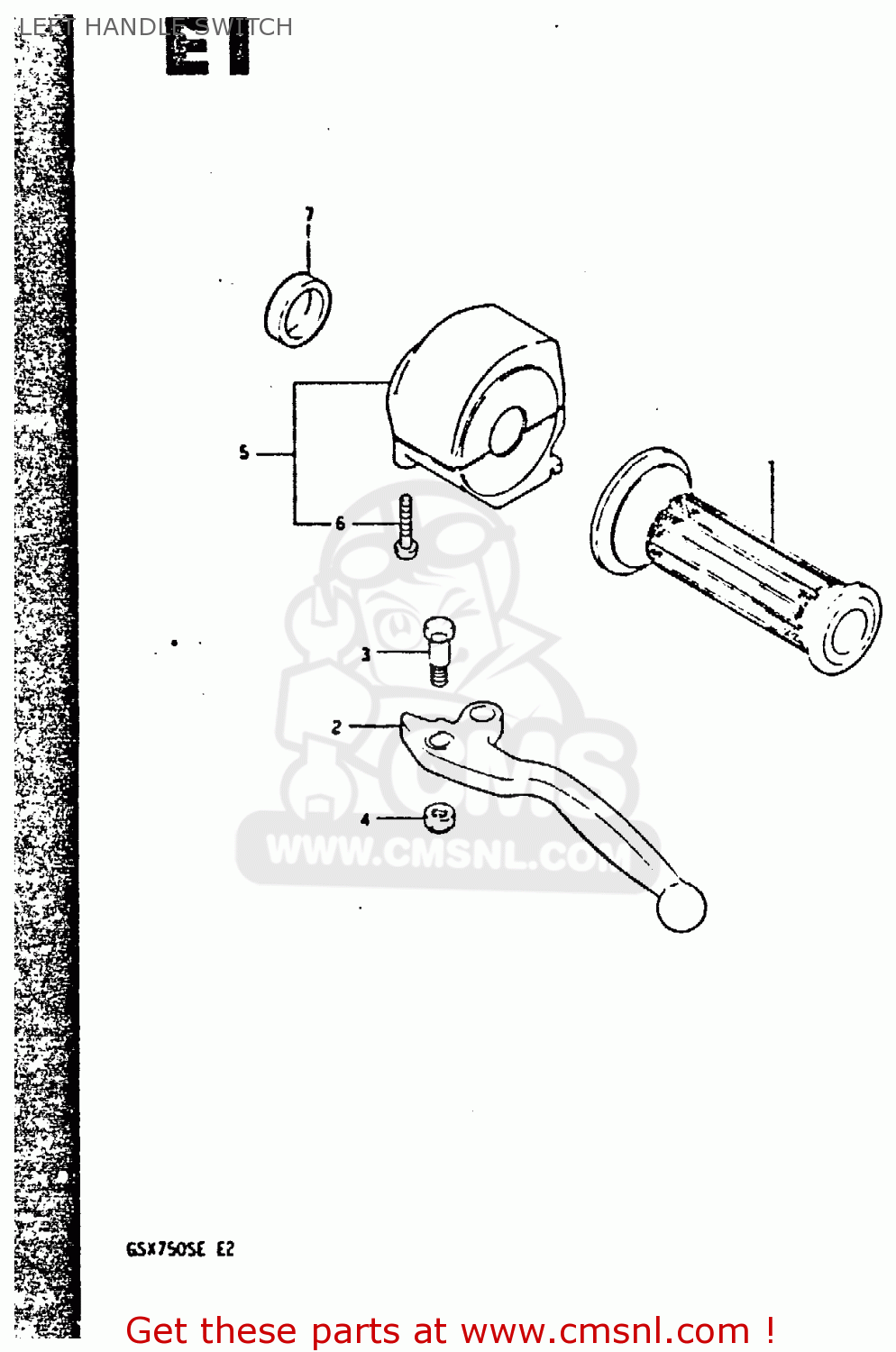

Left handle switch diagram GSX750S 1984 (E) UNITED KINGDOM (E02)

LEFT HANDLE SWITCH GSX750S 1984 (E) UNITED KINGDOM (E02)

LEFT HANDLE SWITCH GSX750S 1984 (E) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1

5721149500
ref: 1

GRIP,L

€ 9.00

2

5750008A00
ref: 2

LEVER,CLUTCH (BLACK)

€ 31.50

3

5743105A00
ref: 3

BOLT,LEVER

€ 8.50

4

0831921065
ref: 4

NUT

€ 2.50

5

3740008A00
ref: 5

SWITCH ASSY, HANDLE LH

€ 0.00

6

0211205255
ref: 6

SCREW

€ 2.00

7

5989408A00
ref: 7

SPACER

€ 0.00
