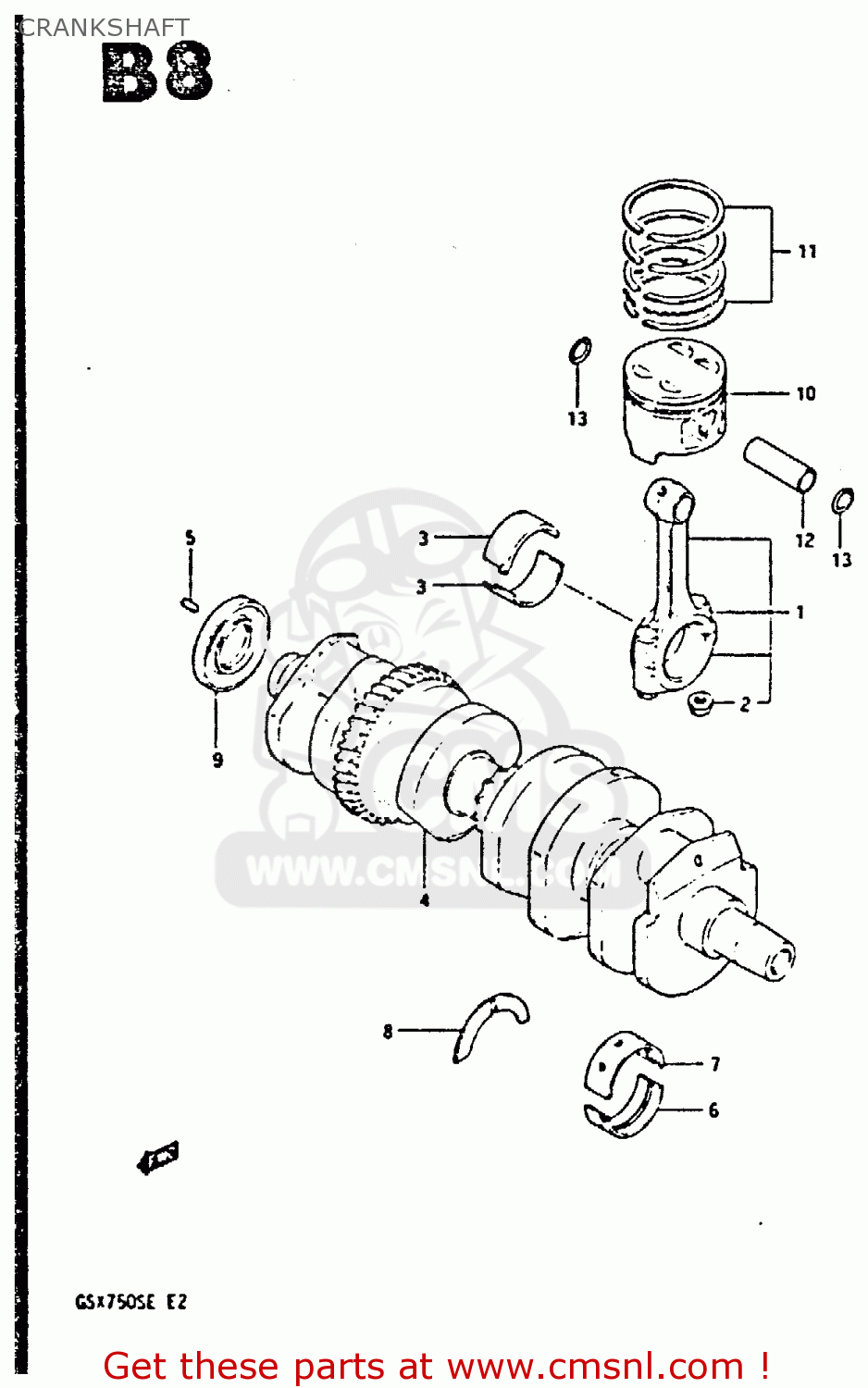

CRANKSHAFT

ref

part #

description

quantity

1

1216031300
ref: 1

ROD ASSEMBLY,CONNECTING

€ 83.50

2

0915908033
ref: 2

NUT

€ 2.50

3-1

12164313100A0
ref: 3-1

METAL,CRANK PIN

€ 11.50

3-2

12164313100B0
ref: 3-2

METAL,CRANK PIN

€ 13.00

3-3

12164313100C0
ref: 3-3

METAL,CRANK PIN

€ 12.50

3-4

12164313100D0
ref: 3-4

METAL CRANK PIN

€ 10.50

4

1222031301
ref: 4

CRANKSHAFT ASSEMBLY

€ 817.00

5

0422104089
ref: 5

PIN

€ 1.50

6-1

12229093010A0
ref: 6-1

METAL,CRANKSHAFT (GREEN)

€ 12.00

6-2

12229093010B0
ref: 6-2

METAL,CRANKSHAFT (BLACK)

€ 12.00

6-3

12229093010C0
ref: 6-3

METAL,CRANKSHAFT (BROWN)

€ 12.00

6-4

12229093010D0
ref: 6-4

METAL,CRANKSHAFT (YELLOW)

€ 12.00

7-1

12229093110A0
ref: 7-1

METAL CRANKSHAFT (GREEN)

€ 12.00

7-2

12229093110B0
ref: 7-2

METAL CRANKSHAFT (BLACK)

€ 12.50

7-3

12229093110C0
ref: 7-3

METAL CRANKSHAFT (BROWN)

€ 12.00

7-4

12229093110D0
ref: 7-4

METAL CRANKSHAFT (YELLOW)

€ 11.50

8-1

1222831301
ref: 8-1
LH

PLATE,CRANK THRUST

€ 6.00

8-2

1222831302
ref: 8-2
LH

PLATE,CRANK THRUST

€ 8.00

8-3

1222831303
ref: 8-3
LH

PLATE,CRANK THRUST

€ 8.50

8-4

1222831304
ref: 8-4
LH

PLATE,CRANK THRUST

€ 9.00

8-5

1222831305
ref: 8-5
LH & RH

PLATE,CRANK THRUST

€ 7.00

8-6

1222831306
ref: 8-6
LH

PLATE,CRANK THRUST

€ 8.00

8-7

1222831307
ref: 8-7
LH

PLATE,CRANK THRUST

€ 7.00

8-8

1222831308
ref: 8-8
LH

PLATE,CRANK THRUST

€ 7.50

9

0928330048
ref: 9

SEAL,OIL(30X60X8)

€ 15.00

10-1

1211131306
ref: 10-1

PISTON (67.00MM)

€ 56.00

10-2

1211131306050
ref: 10-2
OPT

PISTON

€ 81.50

10-3

1211131306100
ref: 10-3
OPT

PISTON

€ 80.00

11-1

1214031311
ref: 11-1

RING SET,PISTON

€ 62.50

11-2

1214031311050
ref: 11-2
OPT

RING SET,PISTON

€ 99.50

11-3

1214031311100
ref: 11-3
OPT

RING SET,PISTON

€ 89.00

12

1215131302
ref: 12

PIN,PISTON

€ 13.00

13

0938118002A
ref: 13

CIRCLIP,PISTON PIN

€ 1.50
