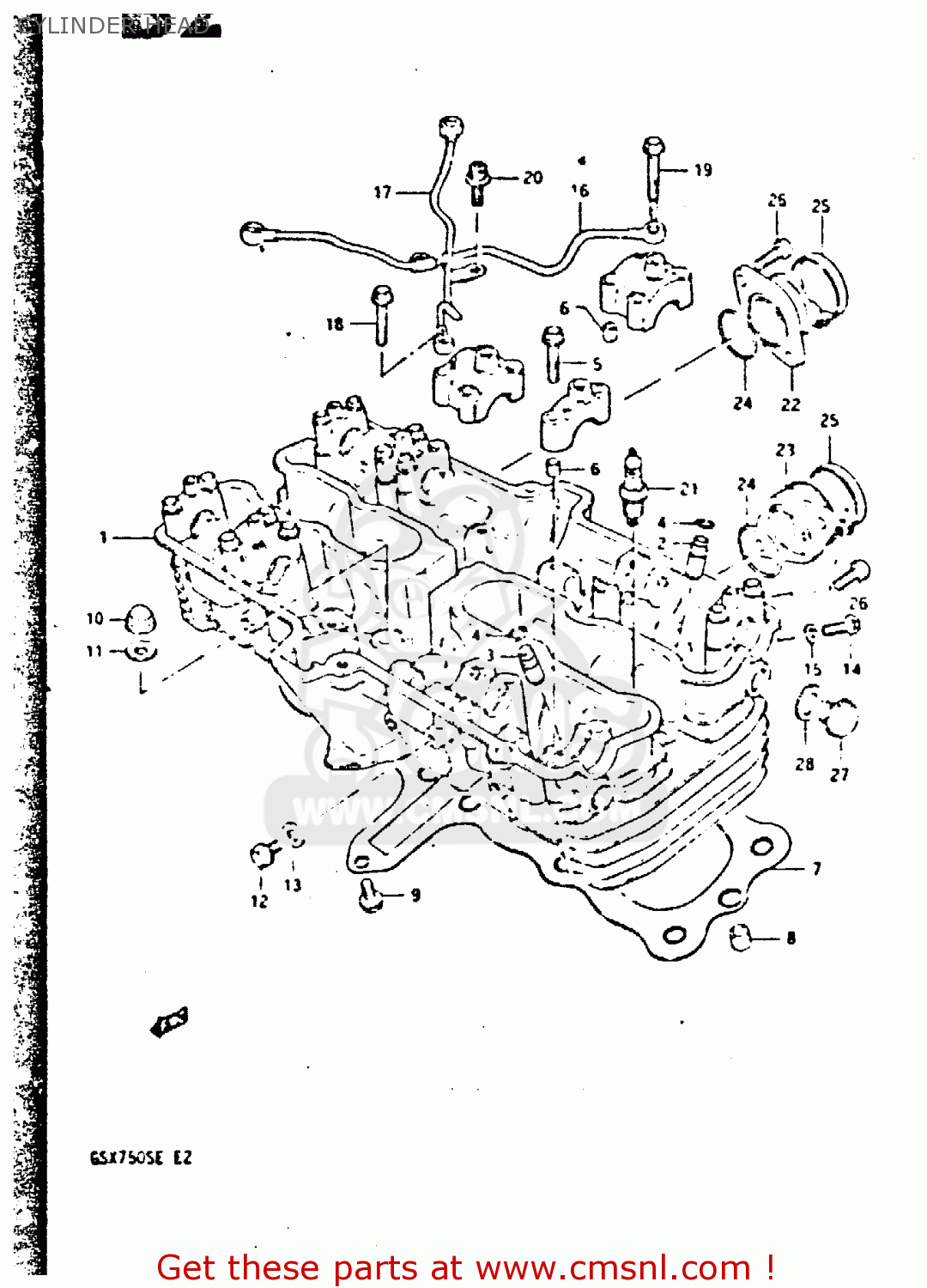

CYLINDER HEAD

ref

part #

description

quantity

1

1110008A04
ref: 1

CYLINDER HEAD SET

€ 0.00

2

1111549290
ref: 2

GUIDE,INTAKE VALVE

€ 19.50

3

1111549290
ref: 3

GUIDE,INTAKE VALVE

€ 19.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114131302
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 66.00

8

0421111189
ref: 8

PIN

€ 2.00

9

0151706254
ref: 9

BOLT

€ 2.50

10

0915910026
ref: 10

NUT

€ 6.00

11

0916810017
ref: 11

GASKET(10.5X22X2) (NAS)

€ 3.50

12

0151706105
ref: 12

BOLT

€ 2.50

13

0916806018
ref: 13

GASKET(6.2X13X1.2) (NAS)

€ 2.00

14

0211205085
ref: 14

SCREW

€ 2.00

15

0916805010
ref: 15

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

16

1296131302
ref: 16

PIPE,OIL CYLINDER HEAD NO.1

€ 34.50

17

1296231302
ref: 17

PIPE,OIL CYLINDER HEAD

€ 25.00

18

0936006014
ref: 18

UNION

€ 4.50

19

1296531300
ref: 19

BOLT,UNION

€ 21.00

20

0712006166
ref: 20

BOLT

€ 2.50

21-1

0948200144
ref: 21-1

SPARK PLUG D8EA

€ 3.50

21-2

0948200145
ref: 21-2

SPARK PLUG X24ES-U

€ 3.50

22

1311031300
ref: 22

PIPE,INTAKE

€ 31.50

23

1312031300
ref: 23

PIPE,INTAKE

€ 31.50

24

0928038004
ref: 24

O RING(D:2.4,ID:37.7)

€ 4.50

25

0940250207
ref: 25

CLAMP

€ 5.00

26

0211206205
ref: 26

SCREW

€ 2.00

27

0924714028
ref: 27

PLUG

€ 3.50

28

0916814004
ref: 28

GASKET(14X19.2X2) (NAS)

€ 2.50
