TURN SIGNAL LAMP

GSX750S 1984 (E) UNITED KINGDOM (E02)

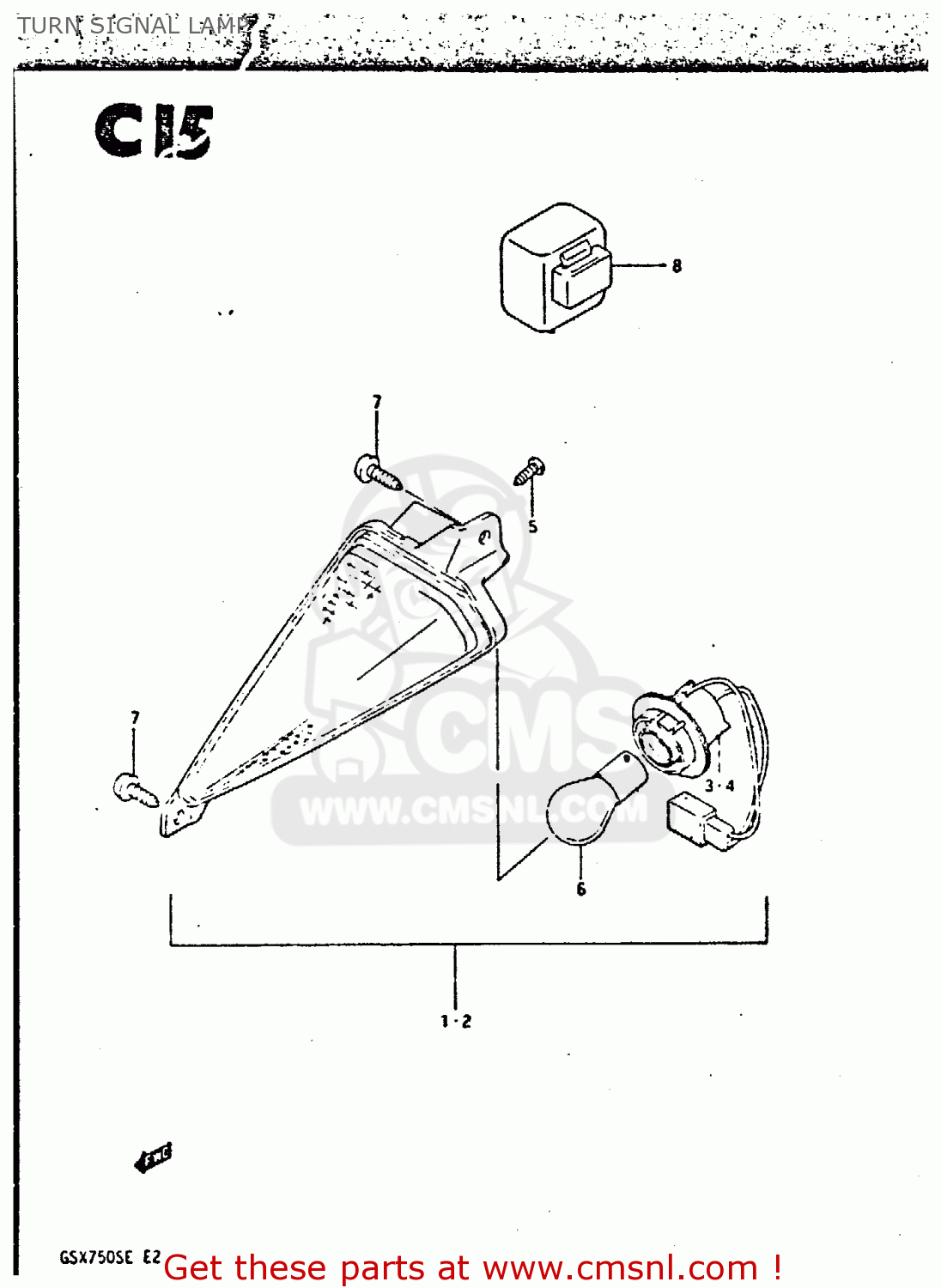

Turn signal lamp diagram GSX750S 1984 (E) UNITED KINGDOM (E02)

TURN SIGNAL LAMP GSX750S 1984 (E) UNITED KINGDOM (E02)

TURN SIGNAL LAMP GSX750S 1984 (E) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1

3560108A00
ref: 1

LAMP ASSY, FRONT TURN SIGNAL RH

€ 53.50

2

3560208A00
ref: 2

LAMP ASSY, FRONT TURN SIGNAL LH

€ 69.00

3

3561808A00
ref: 3

SOCKET, RH

€ 14.50

4

3563808A00
ref: 4

SOCKET, LH

€ 14.50

5

0324104105
ref: 5

SCREW

€ 1.50

6

0947112006
ref: 6

BULB(12V23W,STANLEY,A4577A)

€ 4.00

7

0354105128
ref: 7

SCREW

€ 2.00

8

3861031310
ref: 8

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50
