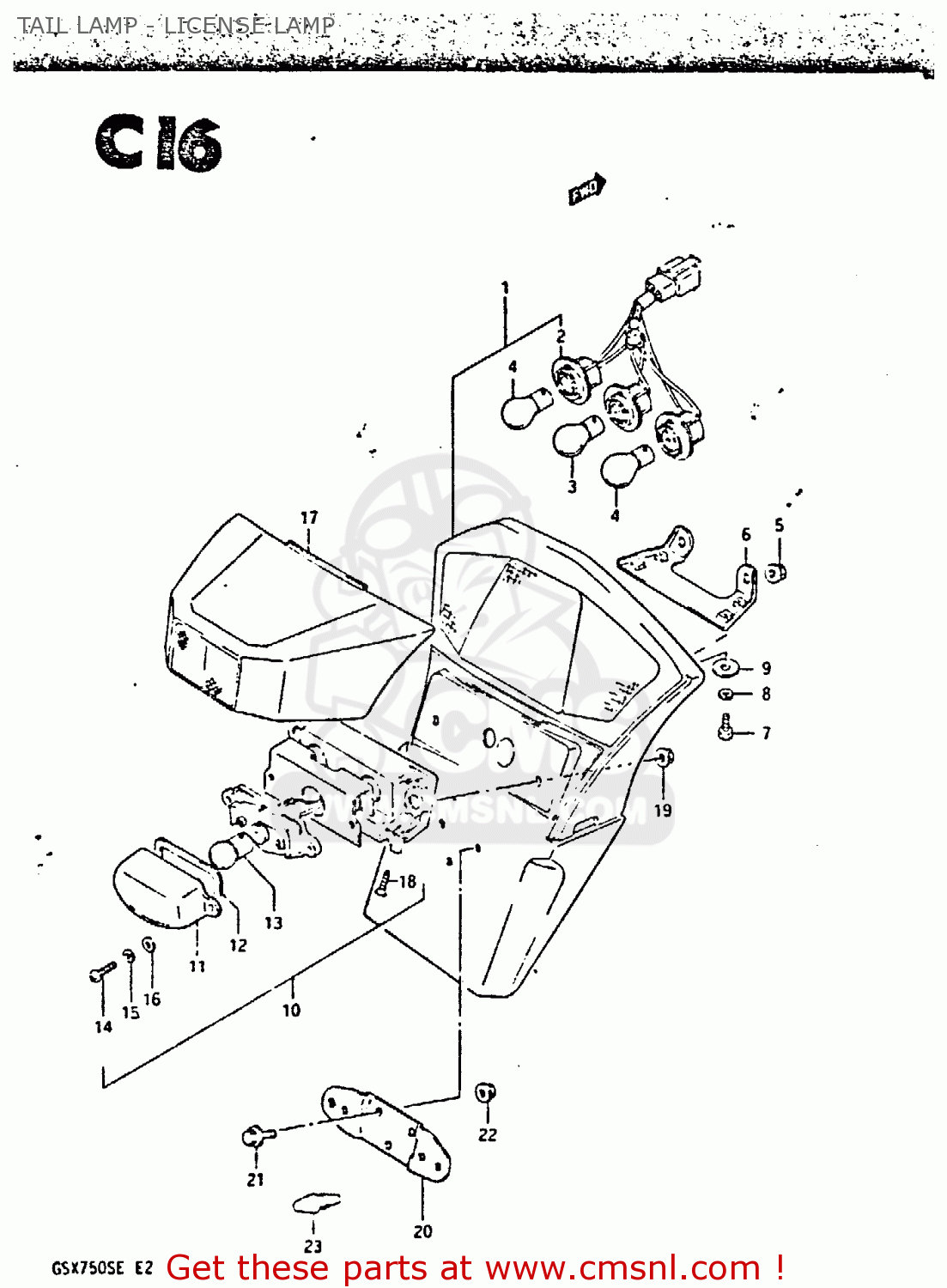

TAIL LAMP - LICENSE LAMP - GSX750S 1984 (E) UNITED KINGDOM (E02)

ref

part #

description

quantity

1

3571008A01
ref: 1

LAMP ASSY, REAR COMBINATIO

€ 0.00

2

3571808A00
ref: 2

SOCKET

€ 0.00

3

0947112084
ref: 3

BULB(12V23/8W,TOKAI DENSO)

€ 6.00

4

0947112006
ref: 4

BULB(12V23W,STANLEY,A4577A)

€ 4.00

5

0831626066
ref: 5

NUT

€ 2.00

6

3572608A01
ref: 6

BRACKET, TAIL LAMP

€ 0.00

7

0110706126
ref: 7

BOLT

€ 2.00

8

0832121066
ref: 8

WASHER,LOCK

€ 2.00

9

0916006019
ref: 9

WASHER(6.5X16X1.2)

€ 1.50

10

3591008A01
ref: 10

LAMP ASSY, LICENSE

€ 104.50

11

3591200A10
ref: 11

LENS,LICENSE LAMP

€ 16.00

12

3591304A00
ref: 12

GASKET,LICESE LAMP (NAS)

€ 4.00

13

0947112037
ref: 13

BULB

€ 7.00

14

0211204167
ref: 14

SCREW

€ 1.00

15

0832121047
ref: 15

WASHER,LOCK 4M

€ 2.00

16

0832221047
ref: 16

WASHER 4MM

€ 2.00

17

3591708A01
ref: 17

COVER,LICENSE LAMP

€ 32.50

18

0324104165
ref: 18

SCREW

€ 4.50

19

0831626066
ref: 19

NUT

€ 2.00

20

3592708A00
ref: 20

BRACKET, LICENSE PLATE

€ 4.00

21

0151706164
ref: 21

BOLT

€ 2.50

22

0831626066
ref: 22

NUT

€ 2.00

23

0932106023
ref: 23

CUSHION

€ 2.00

TAIL LAMP - LICENSE LAMP

all assemblies
