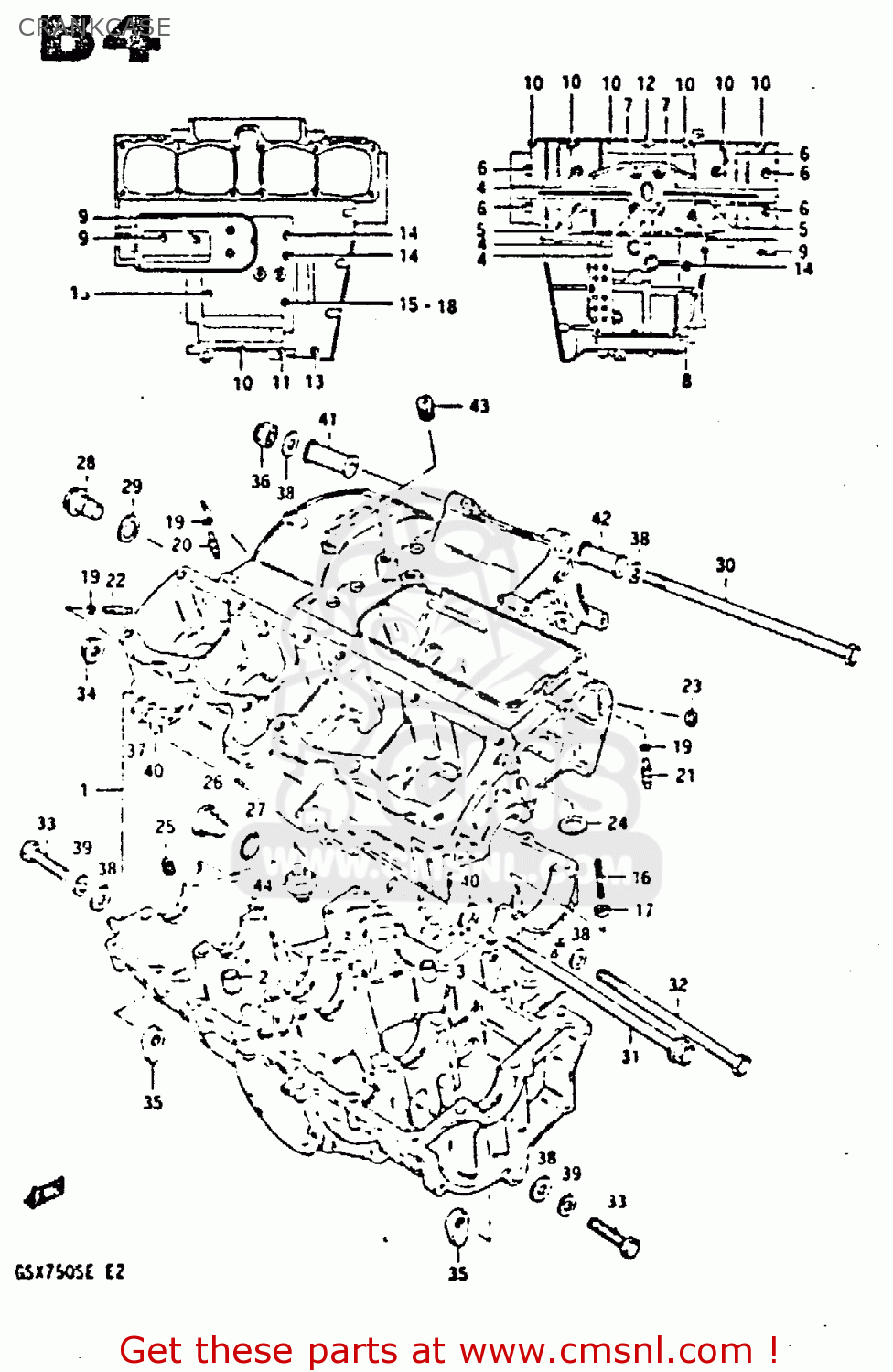

CRANKCASE

ref

part #

description

quantity

1

1130031881
ref: 1

CRANKCASE ASSEMBLY

€ 1,526.00

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611005
ref: 3

PIN (11X20)(SUS)

€ 6.50

4

0910308109
ref: 4

BOLT(8X120)

€ 3.50

5

0910308038
ref: 5

BOLT(8X135)

€ 4.00

6

0910308080
ref: 6

BOLT

€ 5.50

7

0711008606
ref: 7

BOLT

€ 4.50

8

0151708605
ref: 8

BOLT 8X60

€ 3.50

9

0151706354
ref: 9

BOLT 6X35

€ 2.50

10

0151706404
ref: 10

BOLT

€ 2.00

11

0151706408
ref: 11

BOLT

€ 2.50

12

0151706505
ref: 12

BOLT 6X50

€ 2.00

13

0151706555
ref: 13

BOLT 6X55

€ 2.00

14

0151706855
ref: 14

BOLT

€ 2.50

15

0151706955
ref: 15

BOLT (5X95)

€ 3.00

16

0142106458
ref: 16

STUD BOLT (6X45)

€ 2.50

17

0915906017
ref: 17

NUT

€ 2.50

18

0916806018
ref: 18

GASKET(6.2X13X1.2) (NAS)

€ 2.00

19

0928004004
ref: 19

O RING(D:1.2,ID:4)

€ 2.00

20

0949320014
ref: 20

JET,OIL GALLERY

€ 8.00

21

0949380005
ref: 21

JET(8)

€ 12.00

22

0949380007
ref: 22

JET,OIL

€ 14.00

23

0928013001
ref: 23

O RING(D:3.2,ID:12.9)

€ 4.00

24

0821110201
ref: 24

WASHER,THRUST

€ 2.00

25

0949350005
ref: 25

JET,AIR

€ 0.00

26

0924816003
ref: 26

PLUG

€ 16.50

27

0928017002
ref: 27

O RING(D:2.4,ID:16.8)

€ 3.50

28

0924814006
ref: 28

PLUG

€ 4.00

29

0916814004
ref: 29

GASKET(14X19.2X2) (NAS)

€ 2.50

30

0910010195
ref: 30

BOLT 10X255

€ 14.50

31

0910310109
ref: 31

BOLT 10X205

€ 12.00

32

0910010137
ref: 32

BOLT

€ 10.50

33

0110710355
ref: 33

BOLT

€ 2.50

34

0831931105
ref: 34

NUT 10MM

€ 3.00

35

0915910020
ref: 35

NUT

€ 7.50

36

0915910039
ref: 36

NUT

€ 8.50

37

0915910052
ref: 37

NUT

€ 8.50

38

0832211105
ref: 38

WASHER

€ 2.50

39

0832121105
ref: 39

LOCK WASHER

€ 3.00

40

0916010060
ref: 40

WASHER (10.5X22X2.3)

€ 2.50

41

1161011410
ref: 41

SPACER,ENGINE MOUNT

€ 9.50

42

1161044010
ref: 42

SPACER,ENGINE MOUNT(L:50)

€ 12.00

43

0924605001
ref: 43

PLUG

€ 3.50

44

3782034200
ref: 44

SWITCH ASSEMBLY

€ 29.00
