CYLINDER

GSX750S 1984 (E) UNITED KINGDOM (E02)

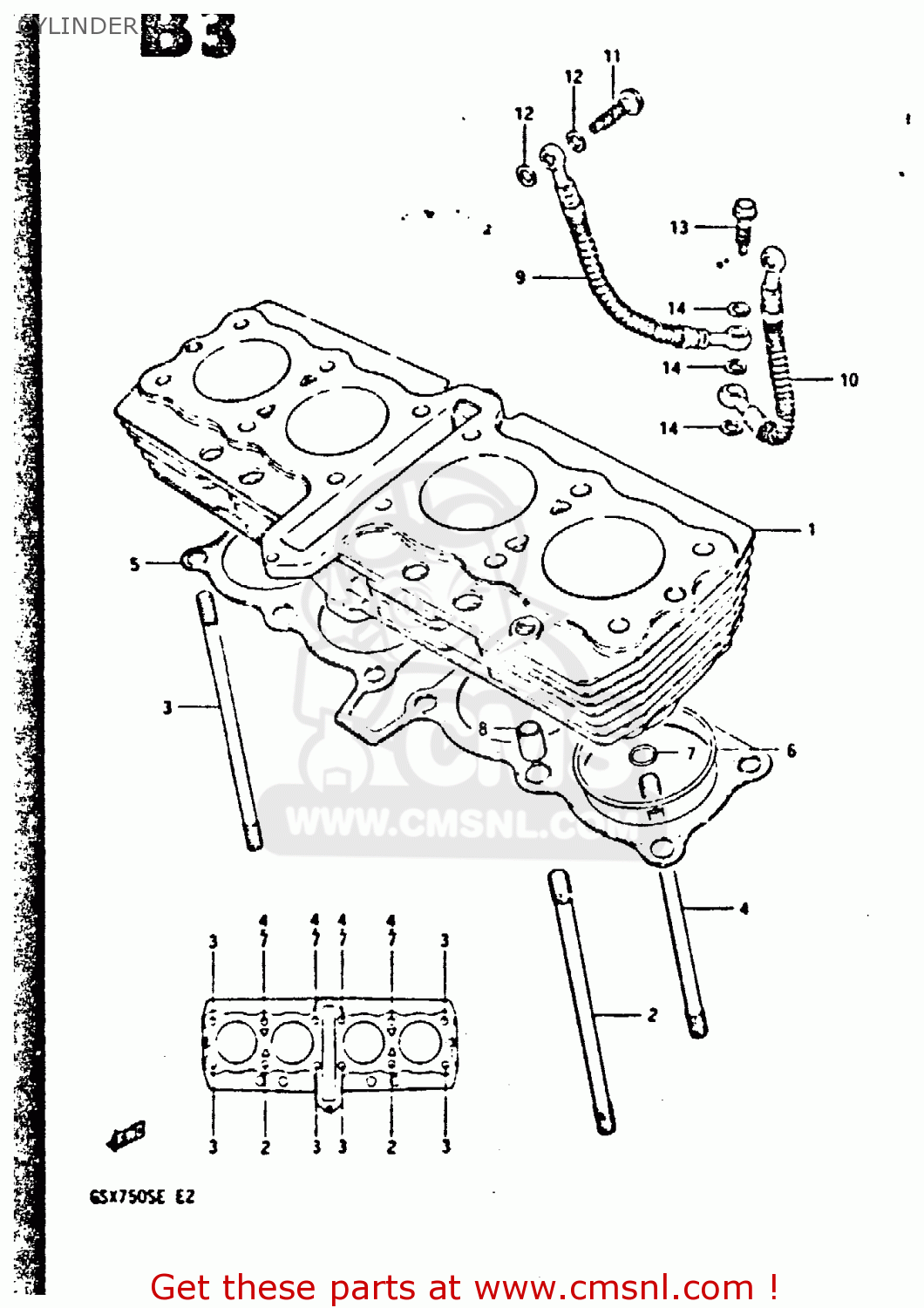

Cylinder diagram GSX750S 1984 (E) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1121031308
ref: 1

CYLINDER

€ 793.00

0910810069
ref: 2

BOLT,STUD

€ 7.00

0910810047
ref: 3

STUD

€ 8.50

0910810062
ref: 4

STUD

€ 8.50

1124106A01
ref: 5

GASKET,CYLINDER (NAS)

€ 13.50

0928070001
ref: 6

O RING(D:2,ID:70)

€ 7.50

0928011005
ref: 7

O RING(D:2.4,ID:11)

€ 4.50

0920613006
ref: 8

PIN

€ 9.00

1128131304
ref: 9

HOSE,OIL

€ 73.00

1128231304
ref: 10

HOSE,OIL

€ 73.00

0936008008
ref: 11

BOLT UNION

€ 4.00

0916808008
ref: 12

GASKET 8.2X14X1 (NAS)

€ 1.00

1128531301
ref: 13

BOLT,OIL PIPE

€ 12.50

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00
