CLUTCH MASTER CYLINDER

GSX750S 1984 (E) UNITED KINGDOM (E02)

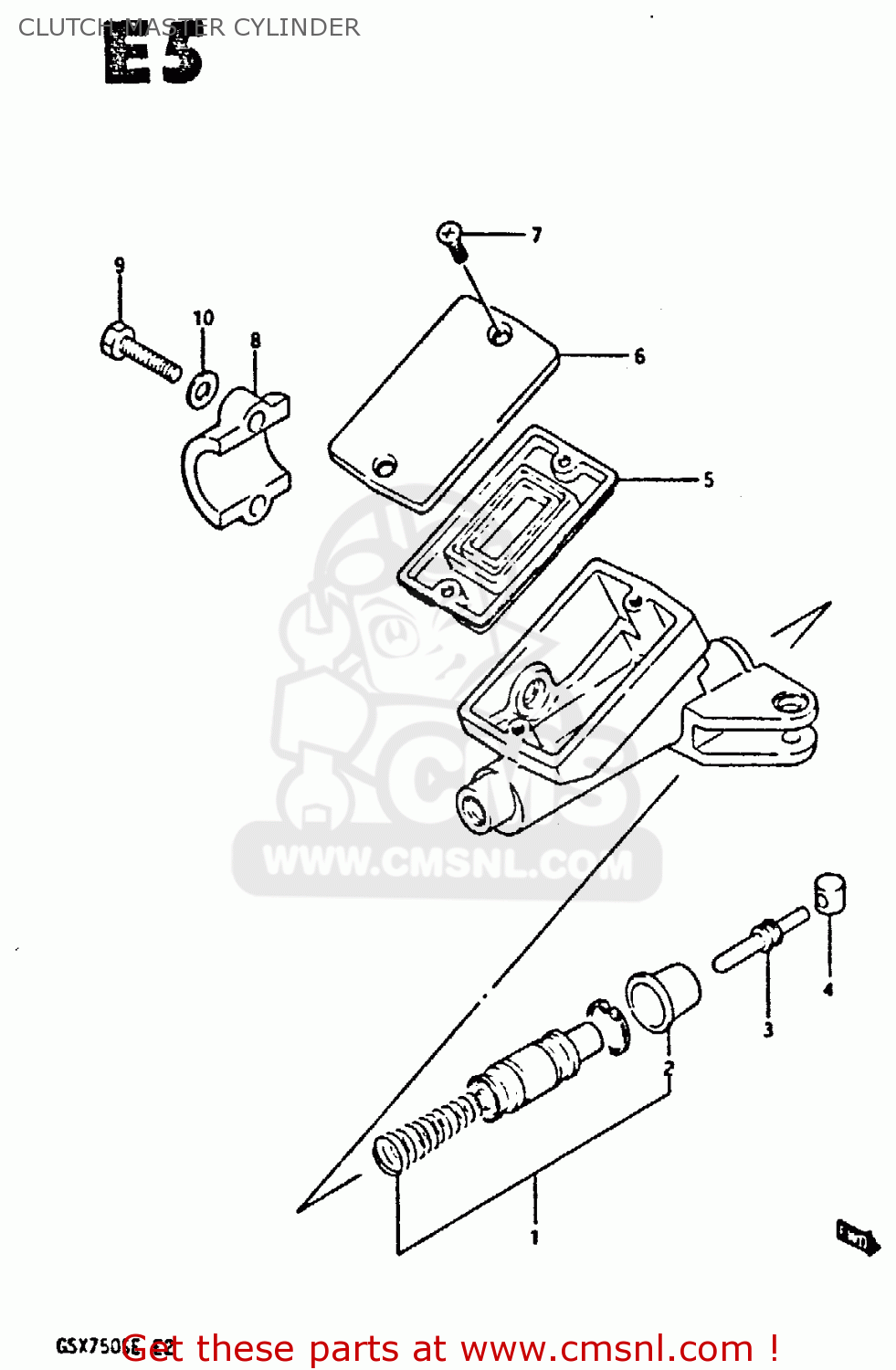

Clutch master cylinder diagram GSX750S 1984 (E) UNITED KINGDOM (E02)

CLUTCH MASTER CYLINDER GSX750S 1984 (E) UNITED KINGDOM (E02)

CLUTCH MASTER CYLINDER GSX750S 1984 (E) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

0

5980008A01
ref: 0

CYLINDER ASSY, CLUTCH MASTER

€ 0.00

1

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5987108A00
ref: 3

ROD,PUSH

€ 5.50

4

5989208A00
ref: 4

BUSH

€ 5.50

5

5966749460
ref: 5

5966749460

6

6966949300
ref: 6

CAP

€ 30.00

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967116700
ref: 8

HOLDER,MASTER CYLINDER

€ 18.50

9

0110706255
ref: 9

BOLT

€ 2.50

10

0832221064
ref: 10

WASHER

€ 2.00
