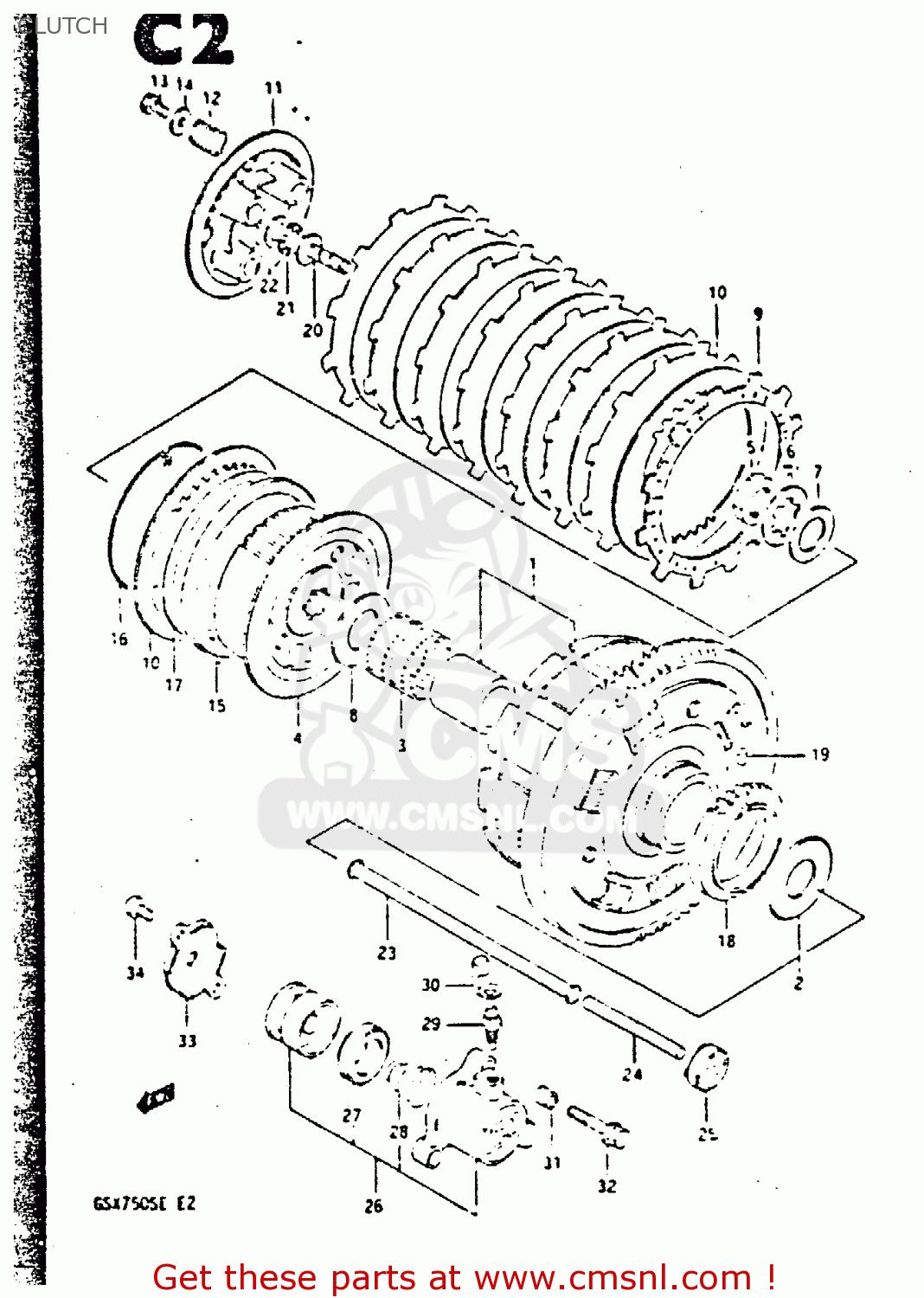

CLUTCH

ref

part #

description

quantity

1

2120031832
ref: 1

GEAR, PRIMARY DRIVEN (NT:91)

€ 248.00

2

0916025037
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335013
ref: 3

BEARING(35X40X39.8)

€ 29.00

4

2141031304
ref: 4

HUB,CLUTCH SLEEVE

€ 99.00

5

0914024007
ref: 5

NUT

€ 4.50

6

0916725007
ref: 6

WASHER,LOCK

€ 7.50

7

0916424006
ref: 7

WASHER

€ 4.00

8

0916025055
ref: 8

WASHER(25X50X2.5)

€ 9.50

9

2144145100
ref: 9

PLATE,CLUTCH DRIVE (MCA)

€ 20.00

10

2145131000
ref: 10

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

11

2146231300
ref: 11

PLATE,CLUTCH PRESSURE

€ 35.00

12

0944020010
ref: 12

SPRING

€ 5.00

13

0110706168
ref: 13

BOLT, UPPER

€ 3.00

14

0916006020
ref: 14

WASHER

€ 2.00

15

2147145101
ref: 15

SEAT,WAVE WASHER

€ 16.00

16

2148145100
ref: 16

RING,STOPPER

€ 5.00

17

0916400003
ref: 17

WASHER

€ 9.00

18

1632131300
ref: 18

GEAR,OIL PUMP DRIVE

€ 44.00

19

0926106002
ref: 19

PIN(6X6)

€ 1.50

20

2312144100
ref: 20

PIECE,CLUTCH PUSH

€ 21.50

21

0926315003
ref: 21

BEARING(15X28X2)

€ 7.00

22

0916015015
ref: 22

WASHER

€ 4.00

23

2311031300
ref: 23

ROD,CLUTCH PUSH

€ 25.00

24

2311115501
ref: 24

ROD,CLUTCH PUSH,L

€ 11.50

25

0928506018
ref: 25

SEAL,OIL(6X34X7.5)

€ 12.00

26

2316008A01
ref: 26

CYLINDER,CLUTCH RELEASE

€ 129.00

27

2316305A00
ref: 27

CUP,CLUTCH CYLINDER

€ 7.50

28

2316405A00
ref: 28

SPRING,CLUTCH CYLINDER

€ 3.50

29

5912101A00
ref: 29

BLEEDER

€ 8.50

30

5912201A00
ref: 30

CAP,BLEEDER

€ 4.50

31

0421109129
ref: 31

PIN

€ 2.00

32

0154706304
ref: 32

BOLT 6X30

€ 2.50

33

2311708A00
ref: 33

COVER, CYLINDER

€ 0.00

34

0211206106
ref: 34

SCREW

€ 1.50
