STARTER CLUTCH

GSX750S 1984 (E) UNITED KINGDOM (E02)

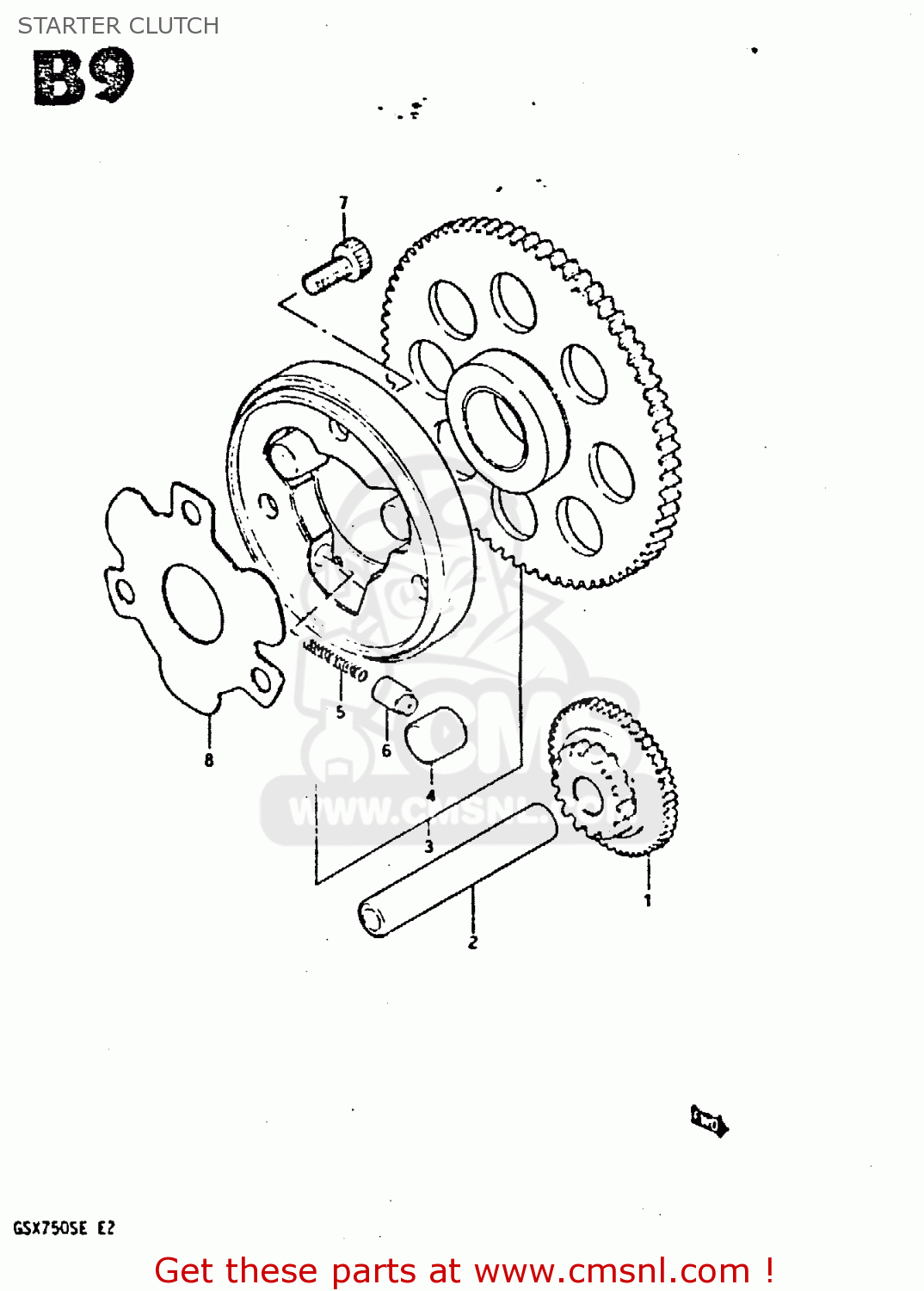

Starter clutch diagram GSX750S 1984 (E) UNITED KINGDOM (E02)

STARTER CLUTCH GSX750S 1984 (E) UNITED KINGDOM (E02)

STARTER CLUTCH GSX750S 1984 (E) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1

1261131301
ref: 1

GEAR,STARTER IDLE

€ 80.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260031840
ref: 3

CLUTCH SET,STARTER

€ 152.50

4

0926114001
ref: 4

PIN(14X13)

€ 5.00

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608043
ref: 7

BOLT

€ 3.00

8

1264909301
ref: 8

SHIM,STARTER CLUTCH HUB

€ 8.50
