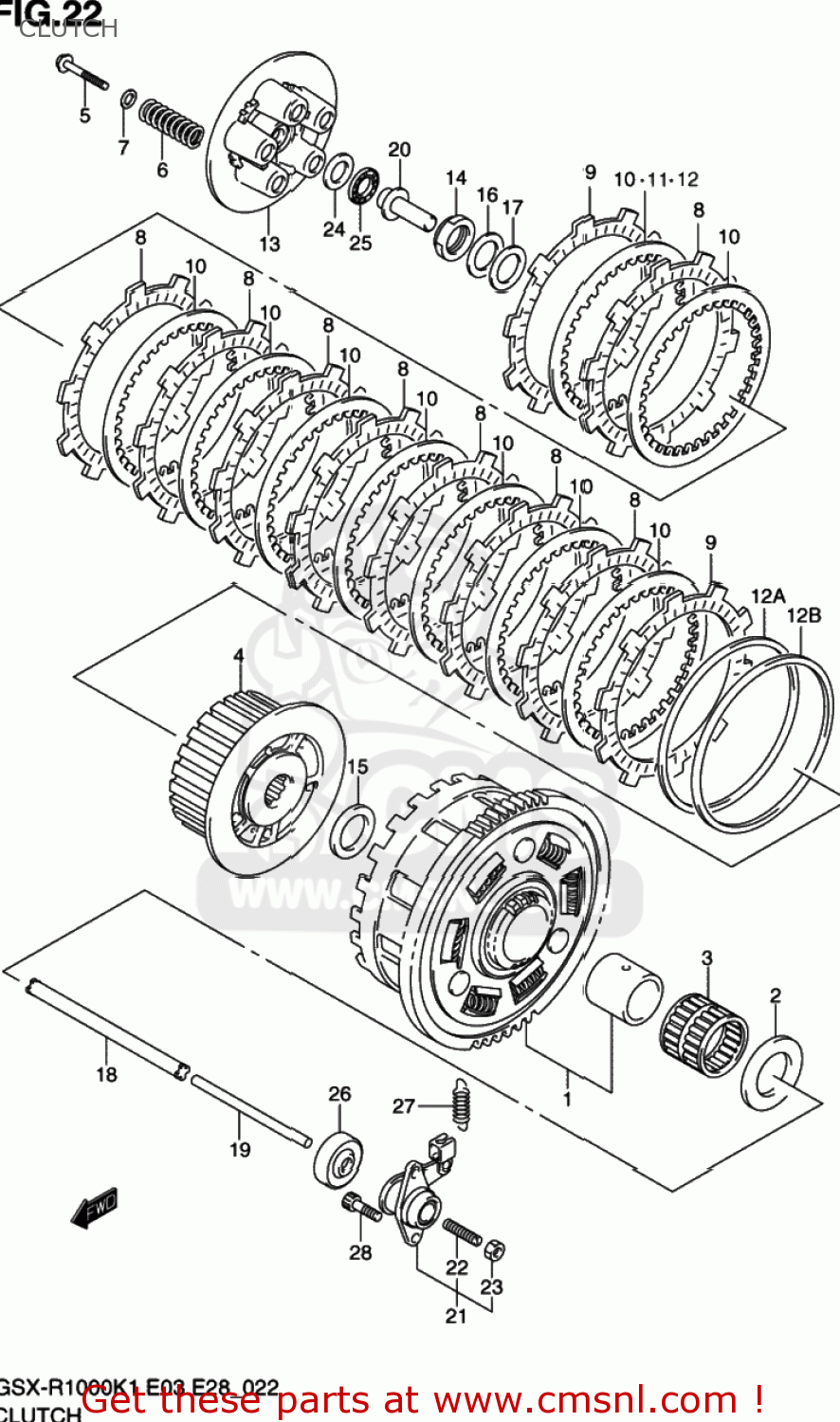

CLUTCH

ref

part #

description

quantity

1

2120040850
ref: 1
21200-40860

GEAR ASSY,PRIM

€ 544.00

2

0916025073
ref: 2

WASHER(25X54X2.4)

€ 8.50

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141040F00
ref: 4

HUB,CLUTCH SLEEVE

€ 117.50

5

2148240F00
ref: 5

BOLT,CLUTCH SPRING

€ 2.50

6

2141340F00
ref: 6

SPRING,CLUTCH

€ 9.00

7

2141429F00
ref: 7

WASHER

€ 4.50

8

2144140F00
ref: 8

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 21.50

9

2144140F10
ref: 9

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 14.50

10

2145140F00
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 9.50

11

2145140F10
ref: 11

PLATE,CLUTCH DRIVEN NO.2(T:2.0 (NAS)

€ 9.00

12

2145140F20
ref: 12

PLATE,CLUTCH DRIVE NO.3(T:2.6) (NAS)

€ 8.00

12A

2147140F00
ref: 12A

SEAT,CLUTCH PLATE WAVE WASHER

€ 12.00

12B

2147240F00
ref: 12B

WASHER,CLUTCH PLATE WAVE

€ 15.00

13

2146240F00
ref: 13

DISC,CLUTCH PRESSURE

€ 55.00

14

0915924010
ref: 14

NUT

€ 11.00

15

0916025056
ref: 15

WASHER(25X50X2.5)

€ 9.50

16

0916424006
ref: 16

WASHER

€ 4.00

17

0918125223
ref: 17

SHIM(25X38X1)

€ 3.00

18

2311038B00
ref: 18

ROD,CLUTCH PUSH,R

€ 19.00

19

2311135F00
ref: 19

ROD,CLUTCH PUSH,L

€ 11.50

20

2312131E00
ref: 20

PIECE,CLUTCH PUSH

€ 18.50

21

2320035F01
ref: 21

SCREW ASSY,CLUTCH RELEASE

€ 55.50

22

0913406010
ref: 22

SCREW(6X25)

€ 3.00

23

0831000067
ref: 23

NUT

€ 2.50

24

0916015045
ref: 24

WASHER(15.5X28X1)

€ 4.00

25

0926315003
ref: 25

BEARING(15X28X2)

€ 7.00

26

0928506011
ref: 26

SEAL,OIL(6X34X10)

€ 9.50

27

0944309044
ref: 27

SPRING

€ 3.50

28

0155006163
ref: 28
01550-0616A

BOLT

€ 2.50
