WATER PUMP

GSXR1000 2001 (K1) USA (E03)

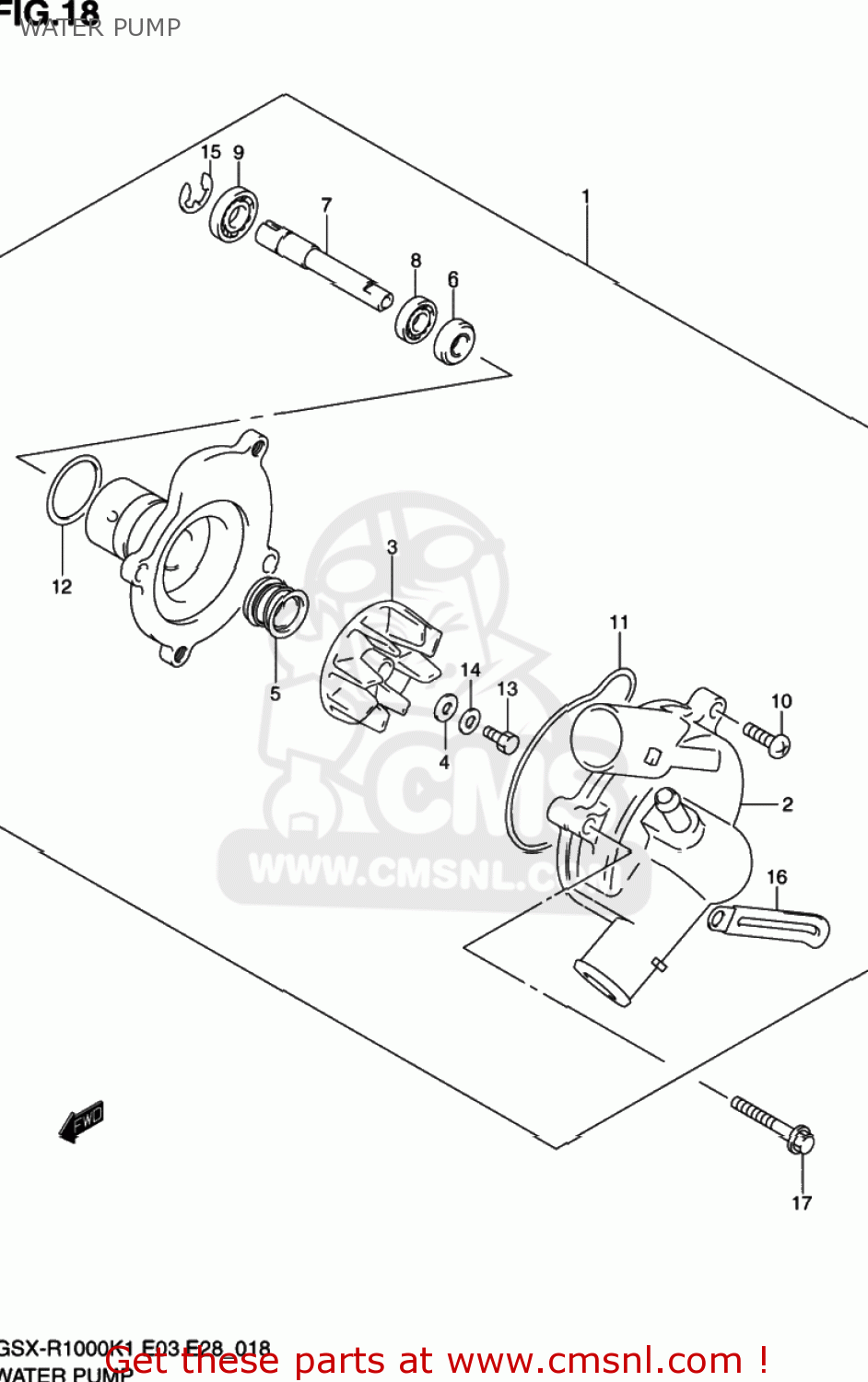

Water pump diagram GSXR1000 2001 (K1) USA (E03)

WATER PUMP GSXR1000 2001 (K1) USA (E03)

WATER PUMP GSXR1000 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1740040F00
ref: 1

PUMP ASSY,WATER

€ 457.00

2

1741140F00
ref: 2

CASE,WATER PUMP

€ 98.50

3

1749140F00
ref: 3

IMPELLER

€ 22.00

4

0916806025
ref: 4

GASKET(6X15X2.2) (NAS)

€ 3.00

5

1747002F10
ref: 5

SEAL,MECHANICAL

€ 21.50

6

1741929F00
ref: 6

SEAL,OIL

€ 11.50

7

1751140F00
ref: 7

SHAFT

€ 71.00

8

0926210014
ref: 8

BEARING(10X26X8)

€ 13.00

9

0926212001
ref: 9

BEARING(12X28X8)

€ 15.00

10

0211206163
ref: 10
02112-0616A

SCREW 6X16

€ 2.00

11

1741840F00
ref: 11

O RING

€ 10.50

12

1743540F00
ref: 12

O RING

€ 7.00

13

0910006099
ref: 13

BOLT(6X13)

€ 2.00

14

0916406006
ref: 14

WASHER

€ 2.50

15

0833211093
ref: 15
08332-1109A

E RING

€ 1.50

16

0940406432
ref: 16

CLAMP(L:65)

€ 2.50

17

0154706353
ref: 17
01547-0635B

BOLT

€ 3.00
