HEADLAMP

GSXR1000 2001 (K1) USA (E03)

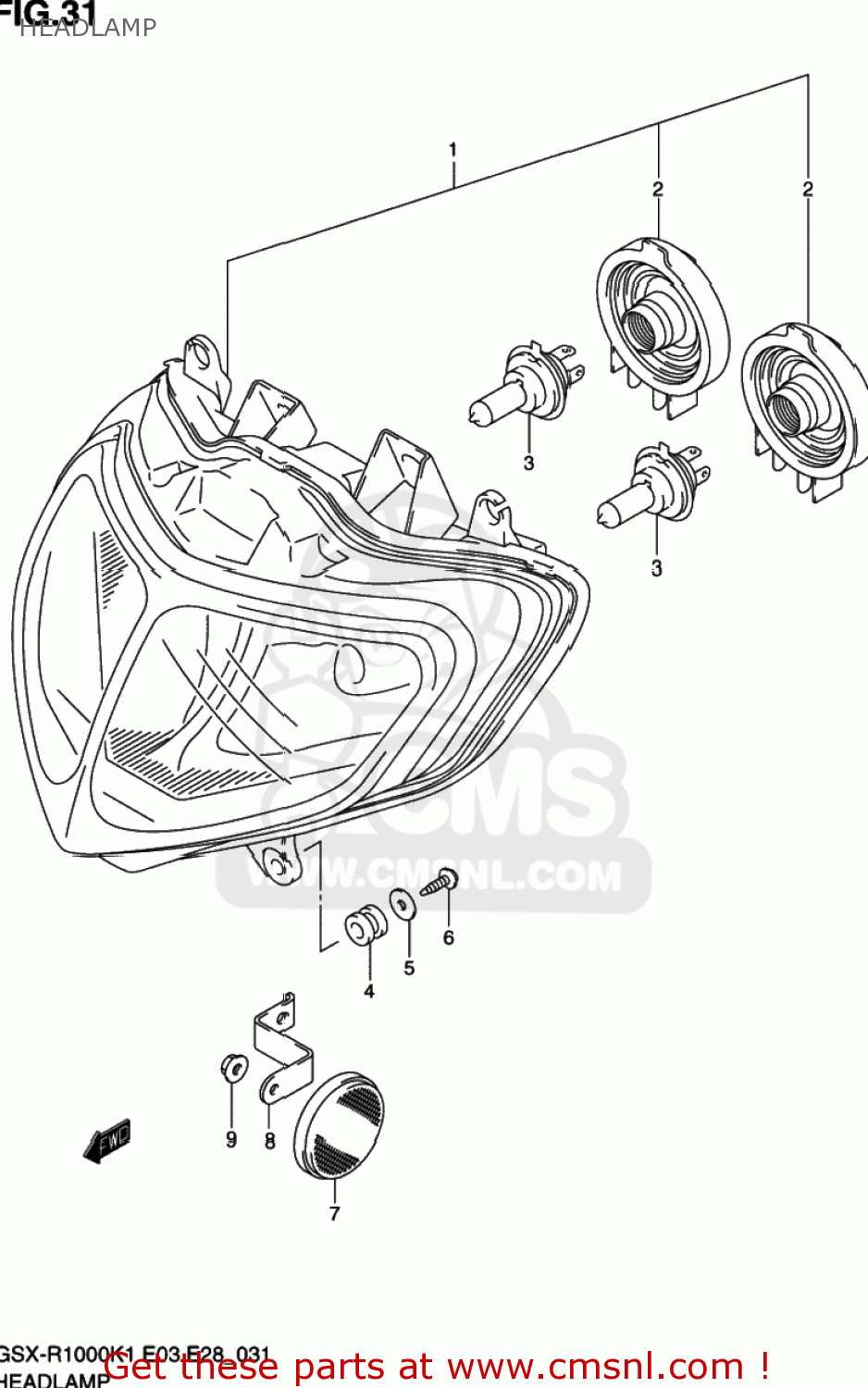

Headlamp diagram GSXR1000 2001 (K1) USA (E03)

HEADLAMP GSXR1000 2001 (K1) USA (E03)

HEADLAMP GSXR1000 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510035F60999
ref: 1

HEADLAMP ASSY

€ 337.00

2

3512577A00
ref: 2

COVER,SOCKET

€ 12.00

3

0947112185
ref: 3
09471-12060

BULB(12V60/55W,H4)

€ 8.00

4

0932009039
ref: 4

CUSHION

€ 6.00

5

0916005045
ref: 5

WASHER(5.5X18X1)

€ 2.00

6

0913205048
ref: 6
03541-0516B

SCREW

€ 2.00

7

3595014A10
ref: 7
35950-14A11

REFLECTOR,REFLEX

€ 11.00

8

3595635F00
ref: 8

BRACKET,FR SIDE RR

€ 0.00

9

0831610053
ref: 9
08316-1005A

NUT

€ 2.50
