THROTTLE BODY HOSE/JOINT (MODEL K2)

GSXR1000 2001 (K1) USA (E03)

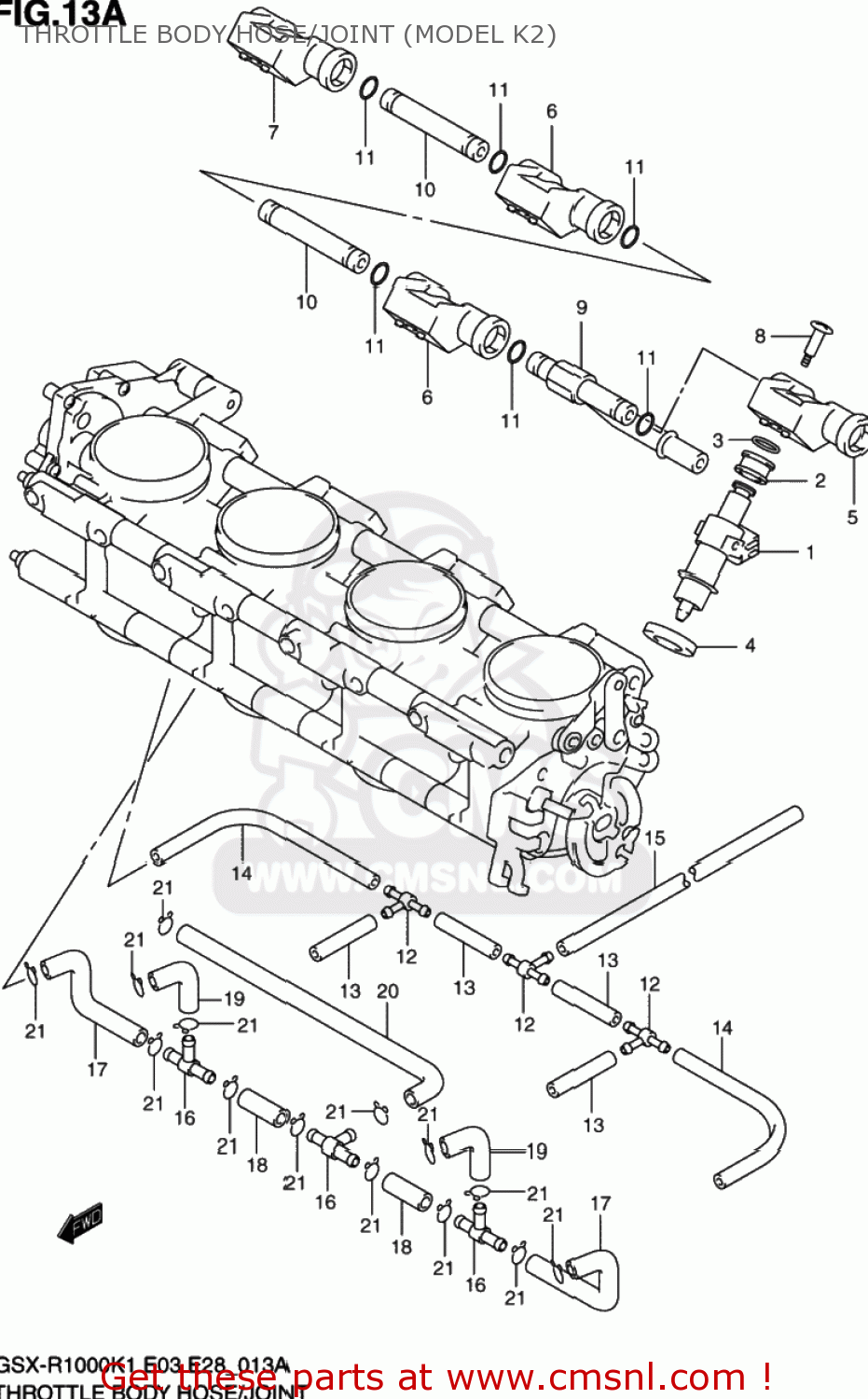

Throttle body hose/joint (model k2) diagram GSXR1000 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1571024F00
ref: 1

INJECTOR ASSY

€ 311.00

1572224F00
ref: 2

RING,CUSHION

€ 13.00

1572124F00
ref: 3

O RING

€ 7.50

1367224F00
ref: 4

RING,SEAL

€ 16.00

1347135F00
ref: 5

JOINT,NO.1

€ 27.00

1347135F10
ref: 6

JOINT,NO.2,3

€ 31.50

1347135F20
ref: 7

JOINT,NO.4

€ 29.00

1360135F00
ref: 8

SCREW

€ 7.00

1347335F01
ref: 9

JOINT

€ 82.00

1347424F00
ref: 10

JOINT

€ 29.00

1572124F00
ref: 11

O RING

€ 7.50

1347124F30
ref: 12

JOINT

€ 11.50

1369724F00
ref: 13

HOSE,RUBBER(L:35)

€ 2.50

1369724F20
ref: 14

HOSE,RUBBER(L:100)

€ 3.50

1369735F00
ref: 15

HOSE,RUBBER(3X7X170)

€ 5.50

1368536E50
ref: 16

JOINT

€ 8.00

1369824F00
ref: 17

HOSE,RUBBER(L:80+25)

€ 0.00

1369824F10
ref: 18

HOSE,RUBBER(L:35)

€ 0.00

1369824F20
ref: 19

HOSE,RUBBER(L:30+30)

€ 0.00

1369835F00
ref: 20

HOSE,RUBBER(L:200+30)

€ 0.00

1369324F00
ref: 21

CLIP

€ 2.00
