STARTING MOTOR

GSXR1000 2001 (K1) USA (E03)

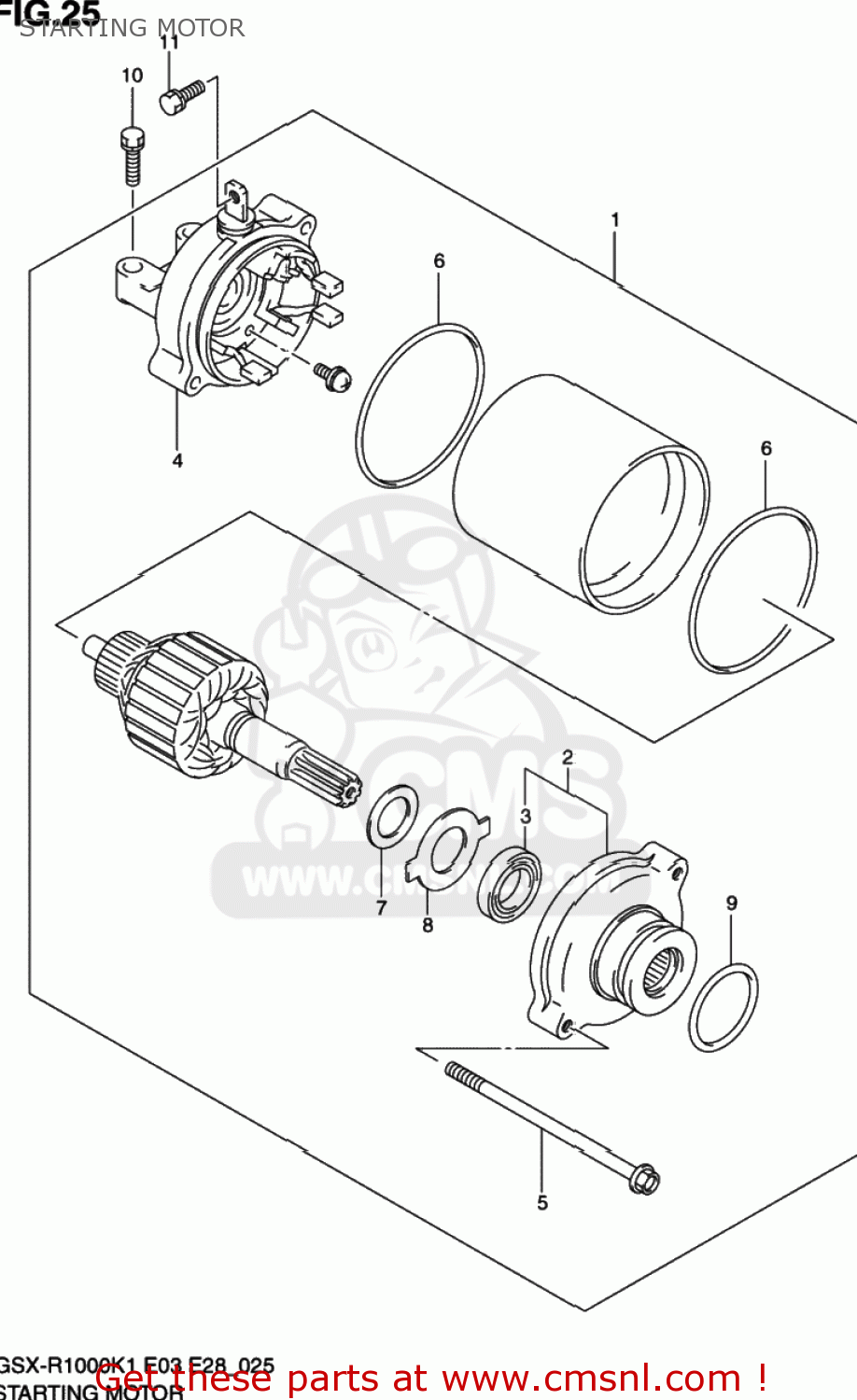

Starting motor diagram GSXR1000 2001 (K1) USA (E03)

STARTING MOTOR GSXR1000 2001 (K1) USA (E03)

STARTING MOTOR GSXR1000 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110040F00
ref: 1

MOTOR ASSY,STARTING

€ 1,041.00

2

3115040F00
ref: 2
31150-40F01

HOUSING ASSY

€ 80.50

3

3115349210
ref: 3

SEAL,OIL

€ 15.00

4

3117540F00
ref: 4
31175-40F01

FRAME ASSY

€ 97.00

5

3128140F00
ref: 5

BOLT

€ 7.00

6

3126432C10
ref: 6

O RING

€ 9.00

7

3136138300
ref: 7

SHIM

€ 1.50

8

3136132C10
ref: 8

PLATE,LOCK

€ 2.50

9

0928024003
ref: 9

O RING(D:3,ID:24.5)

€ 2.00

10

0912806006
ref: 10
09128-06057

BOLT(6X20)

€ 2.00

11

0913705004
ref: 11

SCREW(5X8)

€ 2.00
