FRONT DAMPER

GSXR1000 2001 (K1) USA (E03)

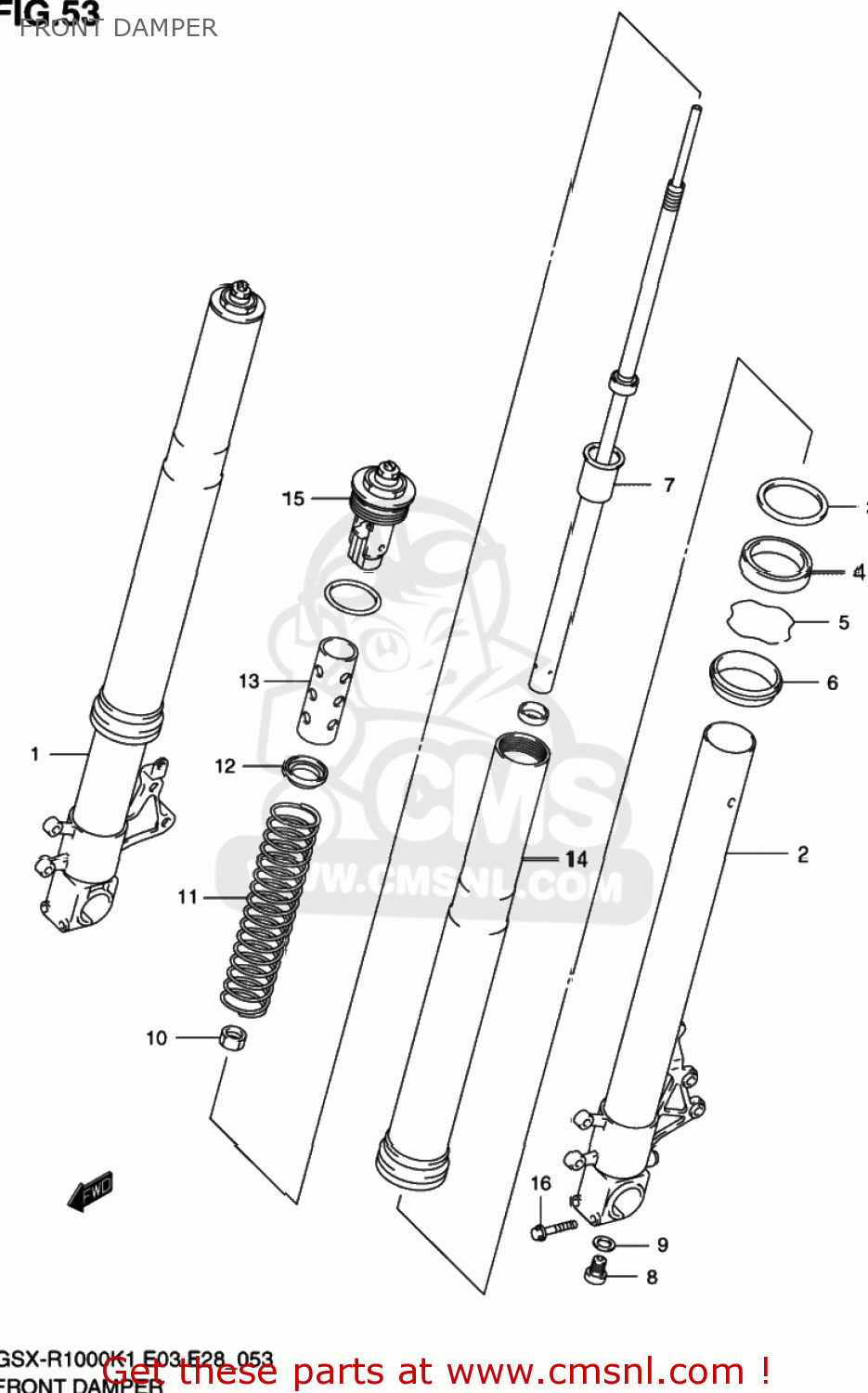

Front damper diagram GSXR1000 2001 (K1) USA (E03)

FRONT DAMPER GSXR1000 2001 (K1) USA (E03)

FRONT DAMPER GSXR1000 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110340F10
ref:

DAMPER ASSY,FR FORK,R

€ 0.00



5110440F00
ref:

DAMPER ASSY,FR FORK,L

€ 1,795.50

1

5111040F00
ref: 1

TUBE,INNER,R

€ 674.50

2

5112040F00
ref: 2

TUBE,INNER,L

€ 652.50

3

5115840F00
ref: 3

WASHER

€ 12.50

4

5115340F00
ref: 4

SEAL,OIL

€ 20.50

5

5115614200
ref: 5

RING,STOPPER

€ 4.50

6

5117302FA0
ref: 6

SEAL,DUST

€ 21.00

7

5114640F00
ref: 7

CYLINDER

€ 395.50

8

5114740C00
ref: 8

BOLT,OIL LOCK PIECE,12X22

€ 24.50

9

5114840300
ref: 9

GASKET,CYLINDER (NAS)

€ 2.50

10

5112924F00
ref: 10

NUT

€ 8.50

11

5117140F00
ref: 11

SPRING,FR

€ 82.50

12

5115824F00
ref: 12

GUIDE,SPRING

€ 9.50

13

5117640F00
ref: 13

SPACER,SPRING

€ 19.00

14

5113040F00
ref: 14

TUBE,OUTER

€ 483.50

15

5135140F00
ref: 15

CAP,FR FORK

€ 201.50

16

5132840F00
ref: 16
51328-31FA0

BOLT

€ 3.50
