SPEEDOMETER

GSXR1000 2001 (K1) USA (E03)

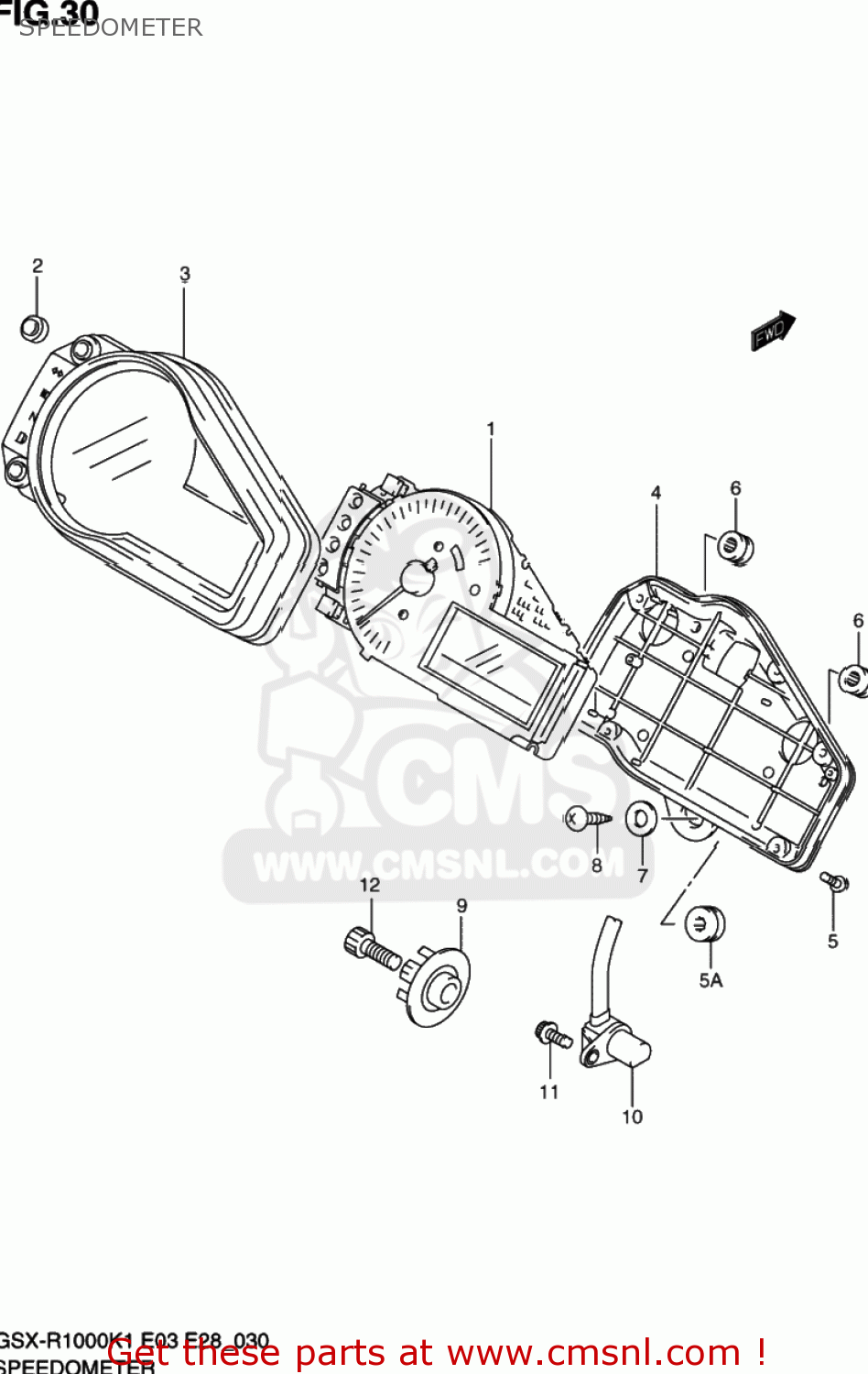

Speedometer diagram GSXR1000 2001 (K1) USA (E03)

SPEEDOMETER GSXR1000 2001 (K1) USA (E03)

SPEEDOMETER GSXR1000 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3412040F20
ref: 1-1

SPEED & TACHOMETER ASSY

€ 0.00

1-2

3412040F50
ref: 1-2

SPEEDOMETER

€ 0.00

1-3

3412040F00
ref: 1-3

SPEED & TACHOMETER ASSY

€ 762.00

1-4

3412040F30
ref: 1-4

SPEEDOMETER

€ 781.00

2

3412424F00
ref: 2

SWITCH,LEVER

€ 6.50

3

3415040F00
ref: 3

CASE,UPR

€ 108.50

4

3411135F00
ref: 4

CASE,LWR

€ 42.50

5

3438335F00
ref: 5

SCREW(3X16)

€ 3.00

5A

3499533E00
ref: 5A
34955-33E00

CUSHION

€ 3.00

6

3495513E00
ref: 6

CUSHION

€ 3.00

7

0916005037
ref: 7

WASHER(5.5X16X1.2)

€ 1.50

8

0351205163
ref: 8
03511-0516A

SCREW

€ 2.50

9

3498135F00
ref: 9
34981-38G01

ROTOR,SPEED

€ 15.00

10

3499035F00
ref: 10

SENSOR,SPEED

€ 112.50

11

0712005123
ref: 11
07120-0512B

BOLT

€ 2.00

12

0713008253
ref: 12
07130-0825B

BOLT

€ 3.50
