THROTTLE BODY (MODEL K1)
GSXR1000 2001 (K1) USA (E03)

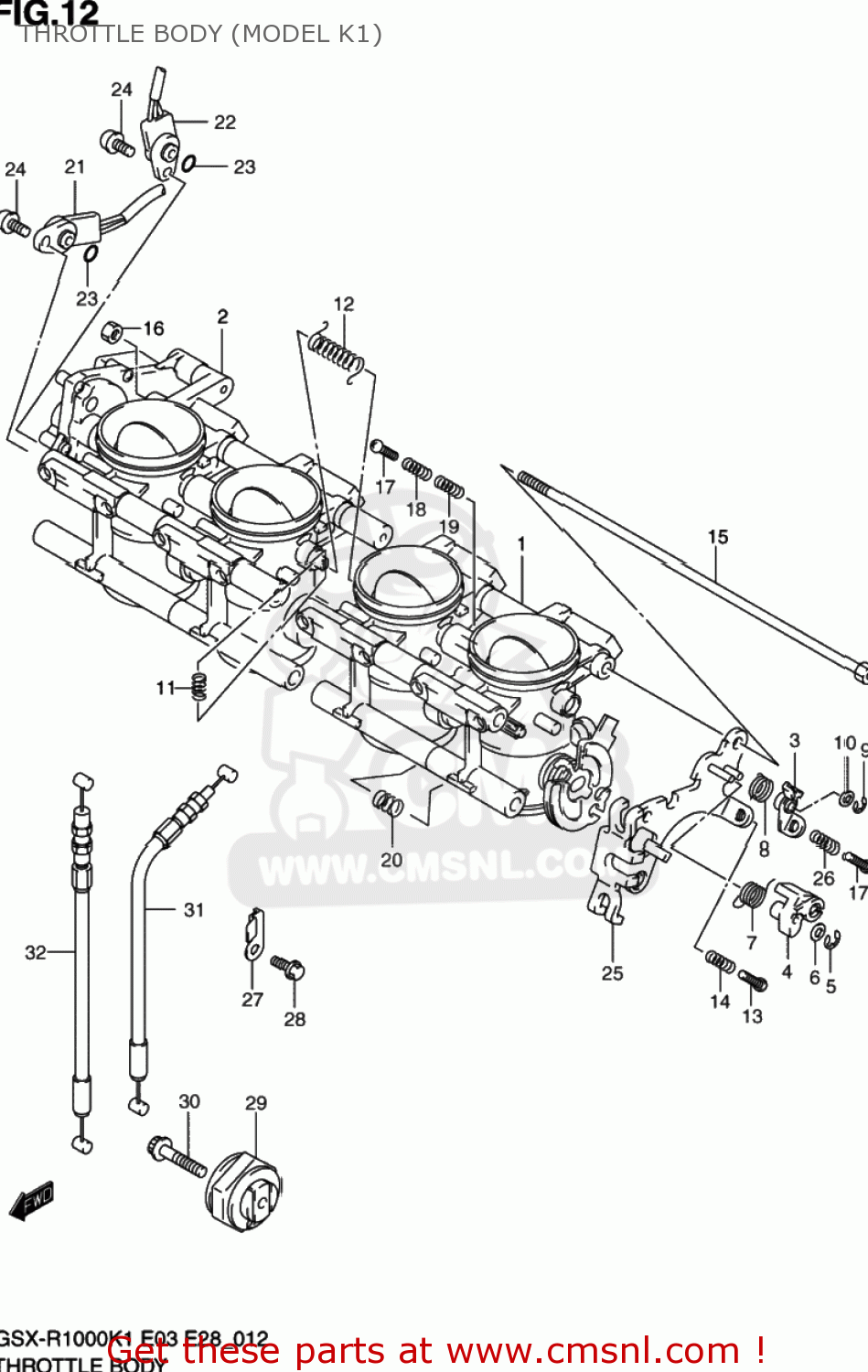

Throttle body (model k1) diagram GSXR1000 2001 (K1) USA (E03)
THROTTLE BODY (MODEL K1) GSXR1000 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1346040F00
ref: 1-1
BODY SET,THROT
€ 637.50
1-2
1346040F10
ref: 1-2
BODY SET,THROTTLE #1/#2
€ 0.00
2-1
1347040F00
ref: 2-1
BODY SET,THROTTLE #3/#4
€ 742.50
2-2
1347040F10
ref: 2-2
BODY SET, THROTTLE #3/#4
€ 0.00
3
1341435F00
ref: 3
LINK,LEVER
€ 25.00
4
1341335F00
ref: 4
LEVER,LINK
€ 22.50
5
1342435F00
ref: 5
E CLIP
€ 2.50
6
1342735F00
ref: 6
WASHER
€ 2.00
7
1342635F00
ref: 7
SPRING
€ 5.50
8
1342635F10
ref: 8
SPRING
€ 4.00
9
1342435F10
ref: 9
E CLIP
€ 3.00
10
1342735F10
ref: 10
WASHER
€ 3.50
11
1326826E10
ref: 11
SPRING
€ 5.00
12
1354940F00
ref: 12
SPRING
€ 4.00
13
1326735F00
ref: 13
SCREW,STOP
€ 26.00
14
1326835F00
ref: 14
SPRING
€ 4.50
15
1361124F00
ref: 15
BOLT
€ 20.00
16
1360724F00
ref: 16
NUT
€ 2.00
17
1342335F00
ref: 17
SCREW,STOP
€ 7.00
18
1354324F00
ref: 18
SPRING
€ 4.50
19
1326803F50
ref: 19
SPRING
€ 5.00
20
1354324F20
ref: 20
SPRING
€ 3.50
21
1358040F00
ref: 21
13580-40F20
SENSOR ASSY,TH
€ 163.50
22
1358040F10
ref: 22
13580-40F30
SENSOR ASSY,TH
€ 188.00
23
1357540F00
ref: 23
O RING
€ 3.50
24
1360540F00
ref: 24
SCREW
€ 3.00
25
1356535F00
ref: 25
PLATE,STAY
€ 76.50
26
1327126E10
ref: 26
SPRING
€ 4.50
27
1125940F00
ref: 27
BRACKET,EXHAUST VALVE CABLE
€ 4.00
28
0154706123
ref: 28
01547-0612B
BOLT
€ 2.00
29
1126920A04
ref: 29
PULLEY,CONTROLLER
€ 32.00
30
0712005203
ref: 30
07120-0520B
BOLT
€ 2.00
31
1127640F00
ref: 31
CABLE,EXHAUST VALVE NO.1
€ 39.50
32
1127740F00
ref: 32
CABLE,EXHAUST VALVE NO.2
€ 38.00
