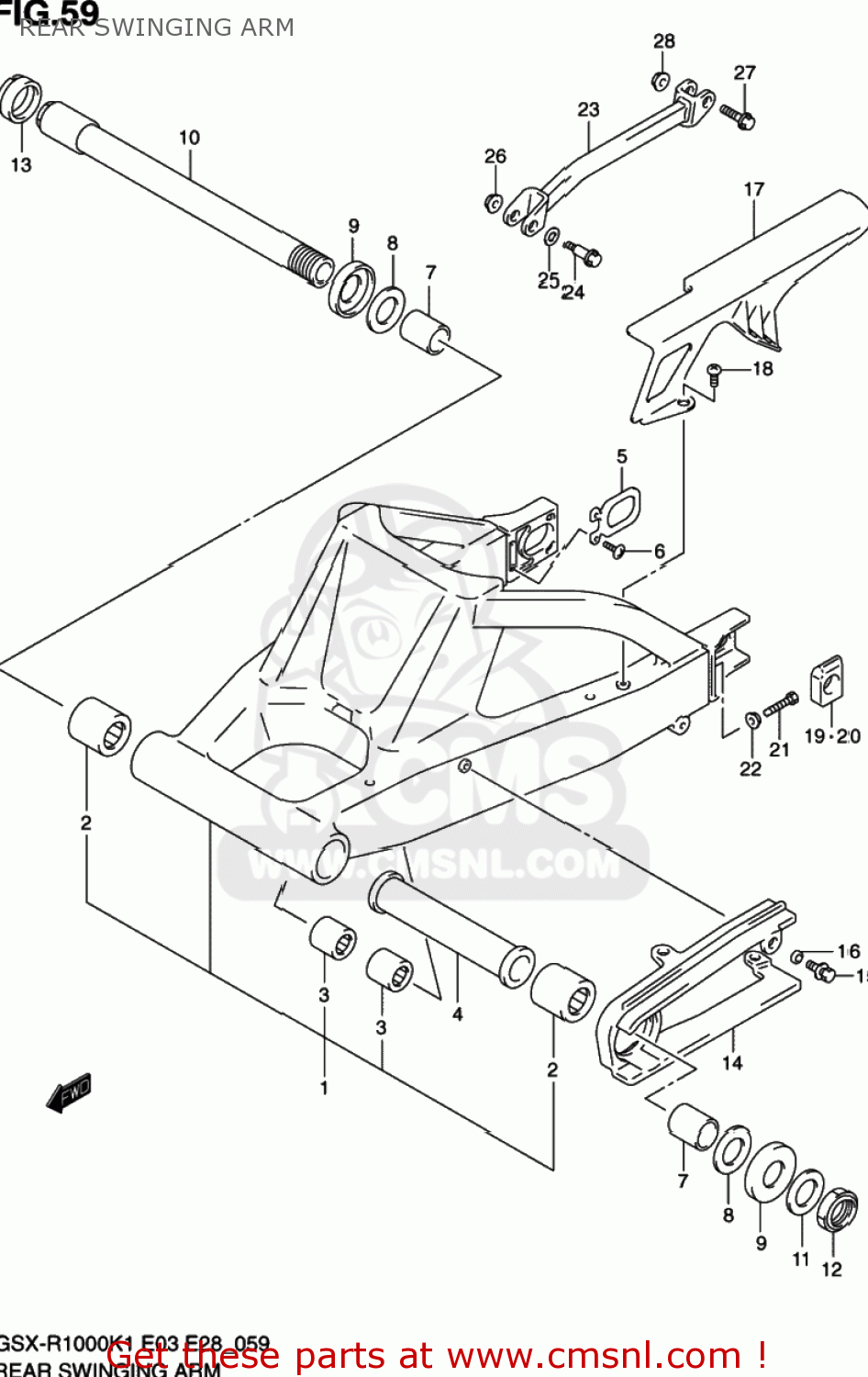

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6100040F00
ref: 1-1

SWINGINGARM ASSY,RR

€ 1,833.00

1-2

6100040F10
ref: 1-2

SWINGINGARM ASSY,RR

€ 1,579.00

2

0926330040
ref: 2

BEARING(30X40X25)

€ 31.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

6128133E10
ref: 4
61281-33E20

SPACER,REAR SWING PIVOT,CENTER

€ 26.00

5

6112433E00
ref: 5

PLATE,RR SWING ARM BRKT

€ 3.50

6

0214206163
ref: 6
02142-0616A

SCREW

€ 2.50

7

6125117E10
ref: 7

SPACER,REAR SWING ARM PIVOT

€ 7.00

8

0821125481
ref: 8

WASHER

€ 5.50

9

6126217E10
ref: 9

DUST SEAL,RR SWGARM PIVOT

€ 6.50

10

6121133E00
ref: 10

SHAFT,RR SWINGINGARM PIVOT

€ 100.00

11

0916025070
ref: 11

WASHER(25.2X42X3.2)

€ 4.50

12

0915925001
ref: 12
09159-25003

NUT

€ 29.00

13

6121440C31
ref: 13

NUT,RR SWGARM PIVOT BOLT

€ 16.50

14

6127340F00
ref: 14

BUFFER,CHAIN TOUCH DEFENSE

€ 35.00

15

0911606152
ref: 15

BOLT(6X20)

€ 2.00

16

0918006176
ref: 16

SPACER(6.5X10X2.5)

€ 3.00

17

6131135F01
ref: 17

CASE,CHAIN

€ 30.00

18

0913906083
ref: 18

SCREW(6X16)

€ 2.50

19

6144540F00
ref: 19

ADJUSTER,CHAIN,R

€ 31.00

20

6144640F00
ref: 20

ADJUSTER,CHAIN,L

€ 31.00

21

0910008287
ref: 21

BOLT(8X50)

€ 3.00

22

0831610083
ref: 22
08316-1008B

NUT

€ 3.00

23

6431040F00
ref: 23

TORQUELINK,RR

€ 88.50

24-1

0911108085
ref: 24-1

BOLT(8X35.5)

€ 5.50

24-2

0911108093
ref: 24-2

BOLT(8X34.5)

€ 5.50

25

0916012011
ref: 25

WASHER(12.5X20X1)

€ 1.50

26

0831931087
ref: 26

NUT

€ 2.50

27

0910310019
ref: 27

BOLT(10X37)

€ 2.50

28

0831931107
ref: 28

NUT

€ 3.00
