SEAT TAIL BOX (MODEL K1)

GSXR1000 2001 (K1) USA (E03)

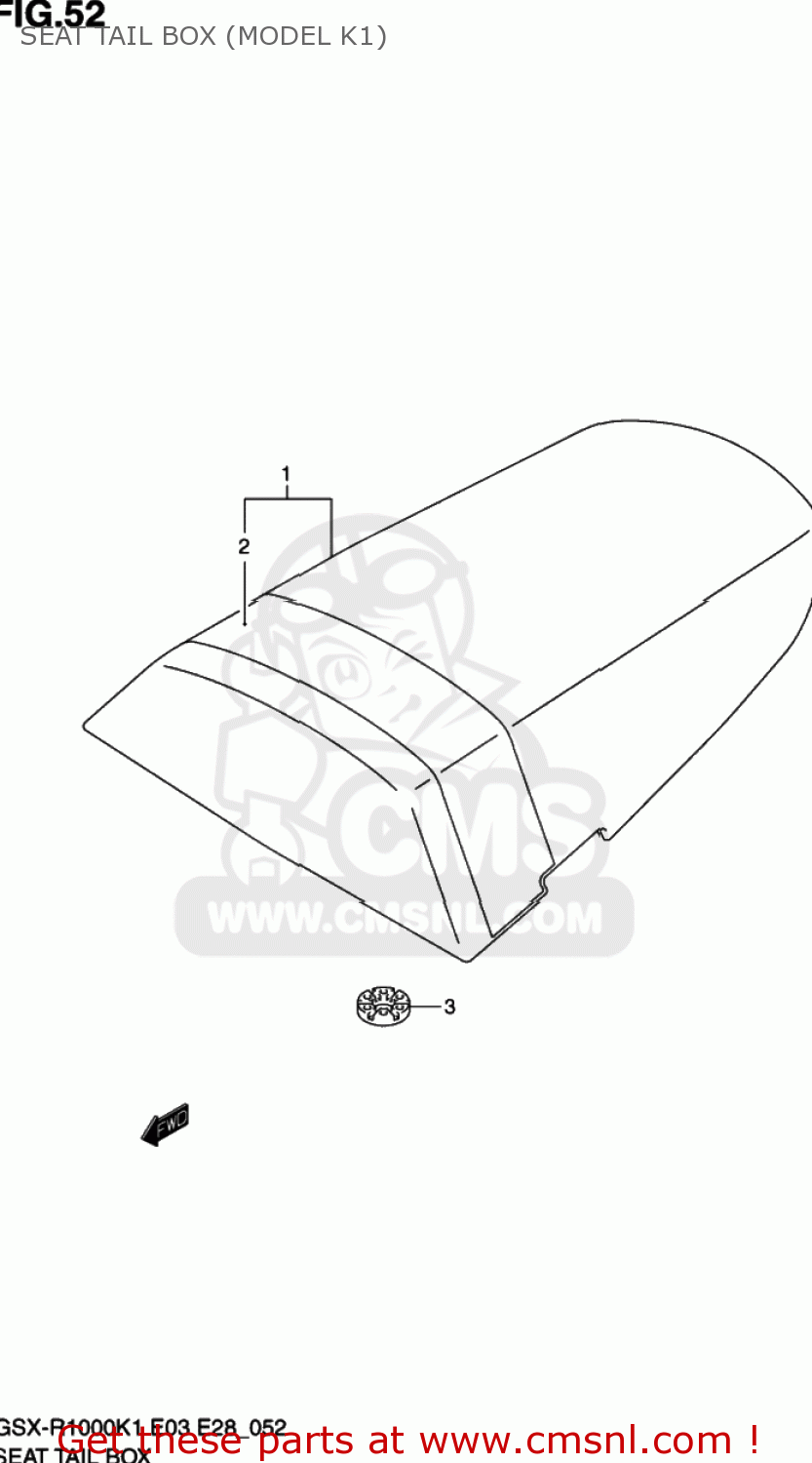

Seat tail box (model k1) diagram GSXR1000 2001 (K1) USA (E03)

SEAT TAIL BOX (MODEL K1) GSXR1000 2001 (K1) USA (E03)

SEAT TAIL BOX (MODEL K1) GSXR1000 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4550040F00019
ref: 1-1

BOX ASSY,SEAT TAIL(BLACK)

€ 237.00

1-2

4550040F0033J
ref: 1-2

BOX ASSY,SEAT TAIL(BLACK)

€ 198.00

1-3

4550040F00Y7L
ref: 1-3

BOX ASSY,SEAT TAIL(BLACK)

€ 214.50

2-1

6816540F00FV4
ref: 2-1

TAPE,BOX SEAT TAIL

€ 35.50

2-2

6816540F00FU4
ref: 2-2

TAPE,BOX SEAT TAIL

€ 26.00

2-3

6816540F00FU1
ref: 2-3

TAPE,BOX SEAT TAIL

€ 26.00

3

4521331300
ref: 3

CUSHION

€ 1.50
