STARTER CLUTCH

GSXR1000 2001 (K1) USA (E03)

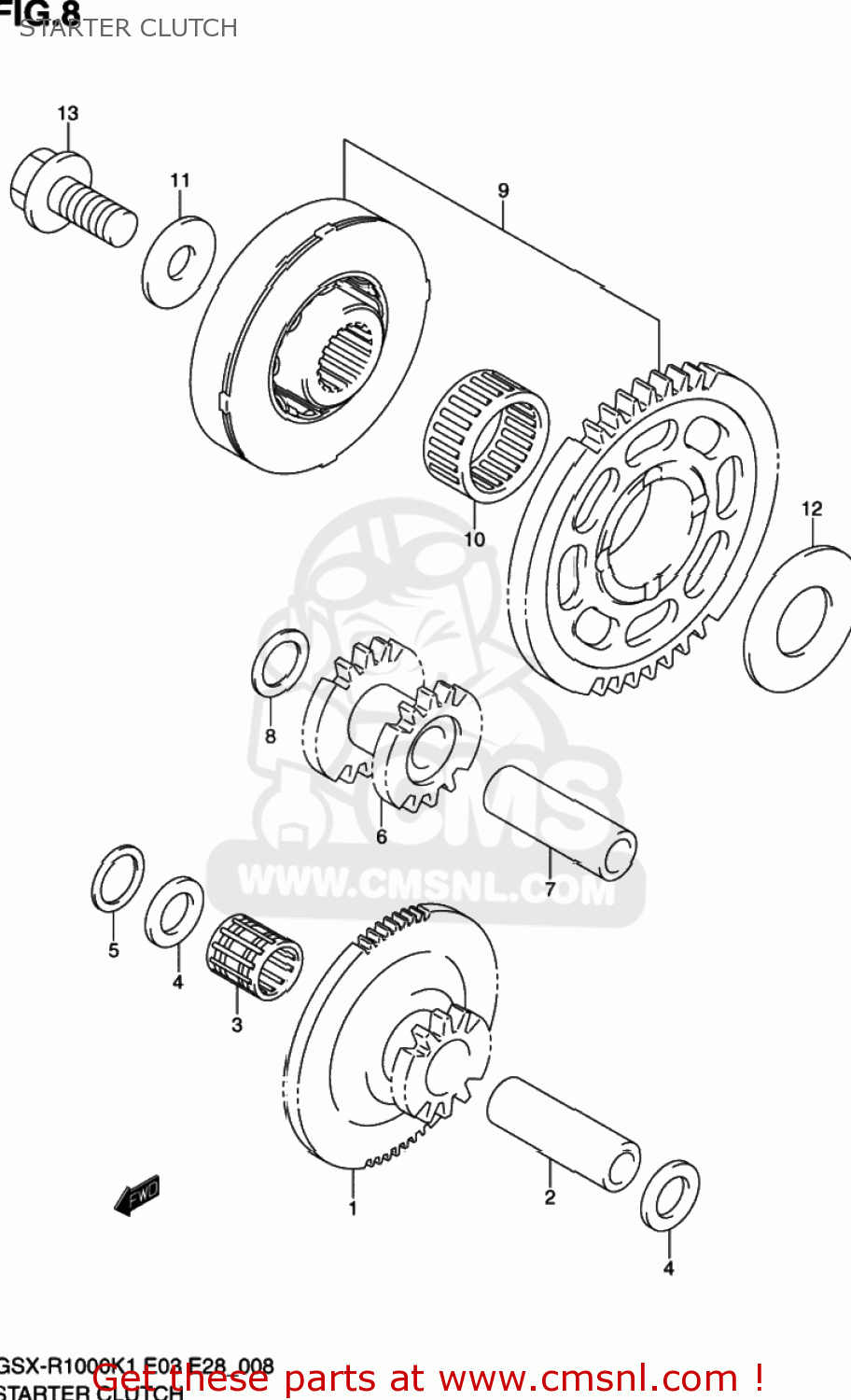

Starter clutch diagram GSXR1000 2001 (K1) USA (E03)

STARTER CLUTCH GSXR1000 2001 (K1) USA (E03)

STARTER CLUTCH GSXR1000 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261140F00
ref: 1

GEAR,STARTER IDLE NO.1

€ 68.50

2

1215109204
ref: 2

PIN,PISTON

€ 8.50

3

0926312023
ref: 3

BEARING(12X16X16)

€ 9.00

4

0918112167
ref: 4

SHIM(12X20X1)

€ 2.50

5

0916412021
ref: 5

WASHER

€ 2.00

6

1261240F00
ref: 6

GEAR,STARTER IDLE NO.2

€ 48.00

7

1215109204
ref: 7

PIN,PISTON

€ 8.50

8

0916412021
ref: 8

WASHER

€ 2.00

9

1260040810
ref: 9

CLUTCH SET,STARTER

€ 431.00

10

09263260330C0
ref: 10
09263-26035

BEARING

€ 39.00

11

0821110285
ref: 11

WASHER

€ 2.50

12

0821120403
ref: 12

WASHER

€ 3.50

13

0910310189
ref: 13

BOLT(10X23)

€ 4.50
